Mars Air Systems NH236-1UH-TS Unheated Air Curtain for 36" Door, 8 ft Opening, 1 HP Motor

SKU: NH236-1UH-TS
$1,566.60
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

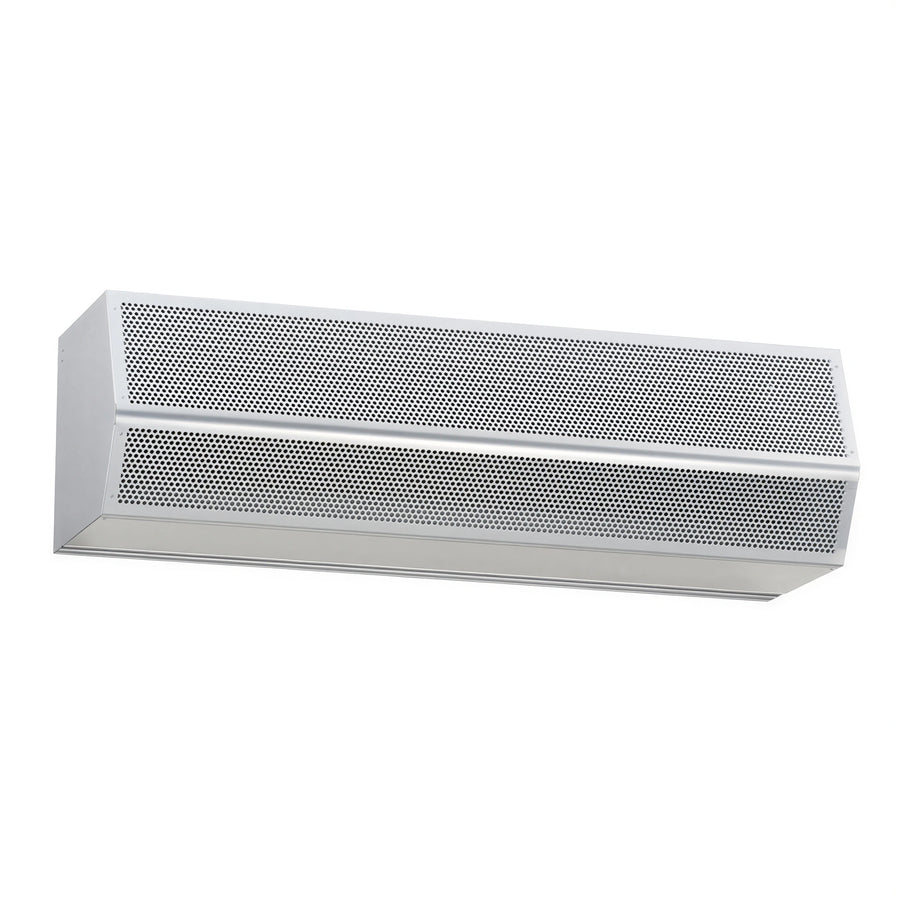

The Mars Air Systems NH236-1UH-TS is an unheated High Velocity Series 2 air curtain for a 36 in door opening with a maximum opening height of 8 ft.

  • Sanitation certified to ANSI/NSF 37 standards
  • Galvanized steel cabinet with Titanium Silver powder coat finish
  • One 1 hp motor with 460 V, 60 Hz, 3-phase electrical configuration
  • Adjustable air directional vanes with a 40° sweep from front to back

Unheated operation

This model is an unheated air curtain.

Sanitation certification

The unit is sanitation certified to ANSI/NSF 37 standards.

Motor

Uses one 1 hp continuous-duty TEAO motor.

Electrical configuration

Operates at 460 V, 60 Hz, 3-phase.

Adjustable air direction

Air directional vanes provide a 40° sweep from front to back.

Cabinet and finish

The cabinet is galvanized steel with a Titanium Silver powder coat finish.

Series High Velocity Series 2
Type Unheated air curtain
Door width 36 in
Maximum opening height 8 ft
Motor count 1
Motor horsepower 1 hp
Voltage 460 V
Frequency 60 Hz
Phase 3-phase
Cabinet material Galvanized steel
Finish Titanium Silver powder coat
Nozzle length 36 in
Overall length 36 in
Weight 115 lb
Maximum core velocity 6000 fpm
Average velocity 2745 fpm
Air volume 2059 cfm
Velocity uniformity 90%
Power rating 1245 W

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

5-year parts warranty.

Documents

PDF Cutsheet PDF Download PDF Nh2 unheated sanitation submittal PDF Download PDF Marketing sheet PDF Download PDF Collateral PDF Download PDF Collateral refrigeration PDF Download PDF Video PDF Download

Frequently Asked Questions

No. The NH236-1UH-TS is an unheated air curtain.
It is designed for a 36 in wide door and has a maximum opening height of 8 ft.
The unit is rated for 460 V, 60 Hz, 3-phase power.
It has one 1 hp motor.
The overall length is 36 in and the listed weight is 115 lb.
