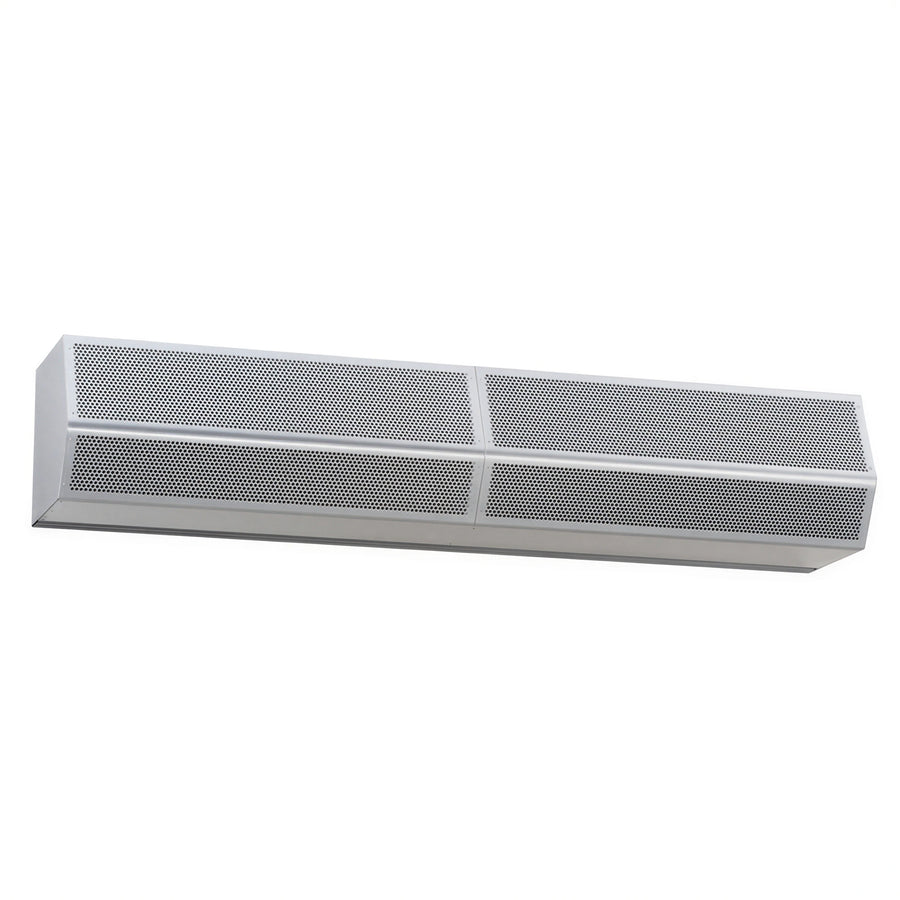

Mars Air Systems NH2108-3UG-TS Unheated Air Curtain, 108 in Door, 3 x 1 HP Motors, Galvanized Steel

SKU: NH2108-3UG-TS
$4,317.60
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

The Mars Air Systems NH2108-3UG-TS is an unheated High Velocity Series 2 air curtain specified for a 108 in door. It features a galvanized steel cabinet with a Titanium Silver powder coat finish and three 1 HP motors.

The unit uses 208–230 V, 60 Hz, three-phase power and is sanitation certified to ANSI/NSF 37 standards. It is also specified as cETLus certified.

Unheated operation

The unit is specified as unheated.

108 in door size

Specified for a 108 in door.

Three 1 HP motors

Includes three 1 HP continuous-duty motors.

Galvanized steel cabinet

The cabinet is specified as galvanized steel.

Titanium Silver finish

The cabinet has a Titanium Silver powder coat finish.

Adjustable air direction

Adjustable air directional vanes provide a 40° sweep from front to back.

ANSI/NSF 37 sanitation certification

Specified as sanitation certified to ANSI/NSF 37 standards.

Three-phase electrical configuration

Uses 208–230 V, 60 Hz, three-phase power.

Series High Velocity Series 2
Heating Unheated
Door width 108 in
Nozzle length 108 in
Overall length 108 in
Motor count 3
Motor horsepower 1 HP per motor
Voltage 208–230 V
Frequency 60 Hz
Phase 3-phase
Cabinet material Galvanized steel
Cabinet finish Titanium Silver powder coat
Air volume 6177 cfm
Maximum core velocity 6000 fpm
Average outlet velocity 2745 fpm
Velocity uniformity 90%
Power rating 3735 W
Sound level 75 dBA at 10 ft in a free field
Weight 330 lb
Full-load amperage 9.9/9.6 A

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

5-year parts warranty.

Documents

PDF Cutsheet PDF Download PDF Nh2 unheated sanitation submittal PDF Download PDF Marketing sheet PDF Download PDF Collateral refrigeration PDF Download PDF Collateral PDF Download PDF Video PDF Download

Frequently Asked Questions

No. The NH2108-3UG-TS is specified as unheated.
It is specified for a 108 in door.
It uses 208–230 V, 60 Hz, three-phase power.
It has three 1 HP motors.
The galvanized steel cabinet has a Titanium Silver powder coat finish.
Yes. The product is specified as sanitation certified to ANSI/NSF 37 standards.
The series documentation specifies a 5-year parts warranty.
