Mars Air Systems

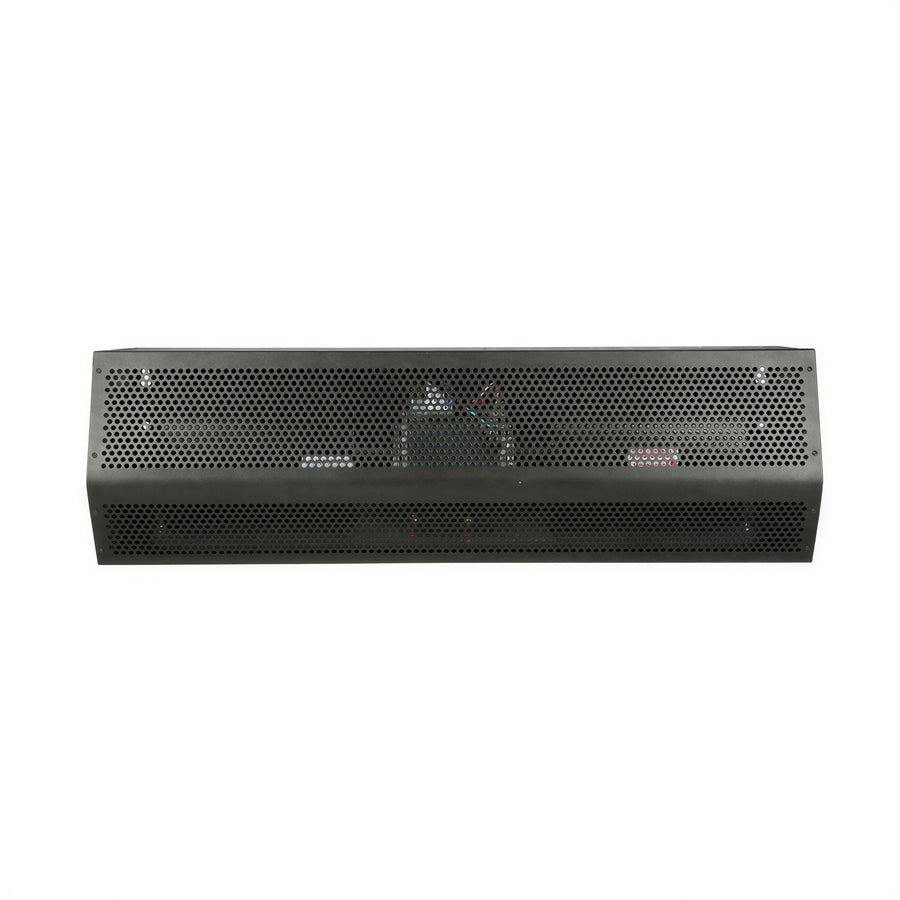

Mars Air Systems N260-2UA-OB Unheated Air Curtain for 60 in Door, 2 Motors, 1/2 HP Each

SKU: N260-2UA-OB
$1,575.00
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

Mars Air Systems N260-2UA-OB is an unheated N2 Series air curtain for a 60 in door. It uses two 1/2 hp motors and 115 V, 60 Hz, single-phase power.

The galvanized steel cabinet has an Obsidian Black powder coat finish. The unit is sanitation certified to ANSI/NSF 37 standards and has adjustable air directional vanes with a 40° front-to-back sweep.

Unheated operation

N2 Series air curtain configuration without heat.

Two-motor drive

Uses two 1/2 hp continuous-duty TEAO motors with NEMA 1 construction.

Sanitation certification

Certified to ANSI/NSF 37 standards.

Adjustable airflow direction

Adjustable vanes provide a 40° front-to-back sweep.

Cabinet finish

Galvanized steel cabinet with an Obsidian Black powder coat finish.

Electrical service

Configured for 115 V, 60 Hz, single-phase operation.

Series N2
Product type Unheated air curtain
Door opening width 60 in
Maximum opening height 8 ft
Motor count 2 motors
Motor horsepower 1/2 hp per motor
Motor construction TEAO, NEMA 1
Voltage 115 V
Frequency 60 Hz
Phase Single-phase
Full-load amperage 10.2 A
Cabinet material Galvanized steel
Cabinet finish Obsidian Black powder coat
Air directional vane adjustment 40° front-to-back sweep
Overall length 60 in
Weight 90 lb
Air volume 2743 cfm
Maximum core velocity 6000 fpm
Average velocity 2633 fpm
Velocity uniformity 93%
Power rating 951 W
Sound level 68 dBA at 10 ft in a free field
Sanitation standard ANSI/NSF 37
Certification ETL
AMCA certification status Not AMCA-certified

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

5-year parts warranty

Documents

PDF Cutsheet PDF Download PDF N2 unheated submittals PDF Download PDF Collateral PDF Download PDF Video PDF Download PDF Marketing sheet PDF Download PDF Collateral refrigeration PDF Download

Frequently Asked Questions

No. The N260-2UA-OB is an unheated air curtain.
It is configured for 115 V, 60 Hz, single-phase operation and has a listed full-load amperage of 10.2 A.
It has two 1/2 hp motors.
The unit has a 60 in door opening width and a listed maximum opening height of 8 ft.
No. The product data sheet specifically states that model N260-2 is not AMCA-certified.
The data sheet lists a 5-year parts warranty.
The listed product weight is 90 lb.
