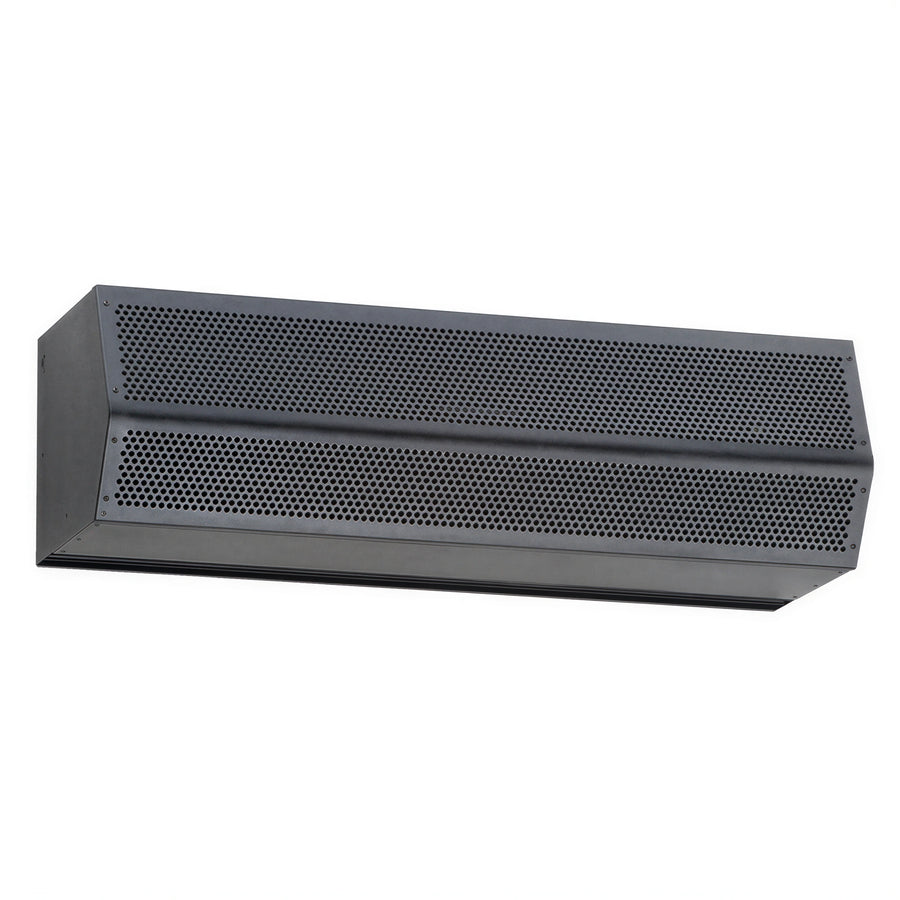

Mars Air Systems N248-1UA-OB Unheated Air Curtain for 48-Inch Door, 1/2 HP Motor, Galvanized Steel Cabinet
The Mars Air Systems N248-1UA-OB is an unheated N2 Series air curtain for a 48-inch door. It features one 1/2 HP motor, a galvanized steel cabinet with an Obsidian Black powder coat finish, and 115V/60Hz single-phase electrical service.
This model is sanitation certified to ANSI/NSF 37 standards and has cETLus certification.
Unheated operation
The N248-1UA-OB is an unheated air curtain configuration.
48-inch format
The model has a 48-inch nozzle length and 48-inch overall length.
Single 1/2 HP motor
It uses one 1/2 HP continuous-duty Totally Enclosed Air Over motor with NEMA 1 construction.
115V electrical service
The unit is specified for 115V, 60Hz, single-phase operation.
Galvanized steel cabinet
The cabinet is galvanized steel with an Obsidian Black powder coat finish.
Adjustable air direction
Adjustable air directional vanes provide a 40-degree front-to-back sweep.
Sanitation certification
The model is certified to ANSI/NSF 37 standards for customer entrances.
AMCA performance data
The N248 model is covered by AMCA-certified laboratory performance data.
Certifications & Compliance
Warranty & Protection
5-year parts warranty
