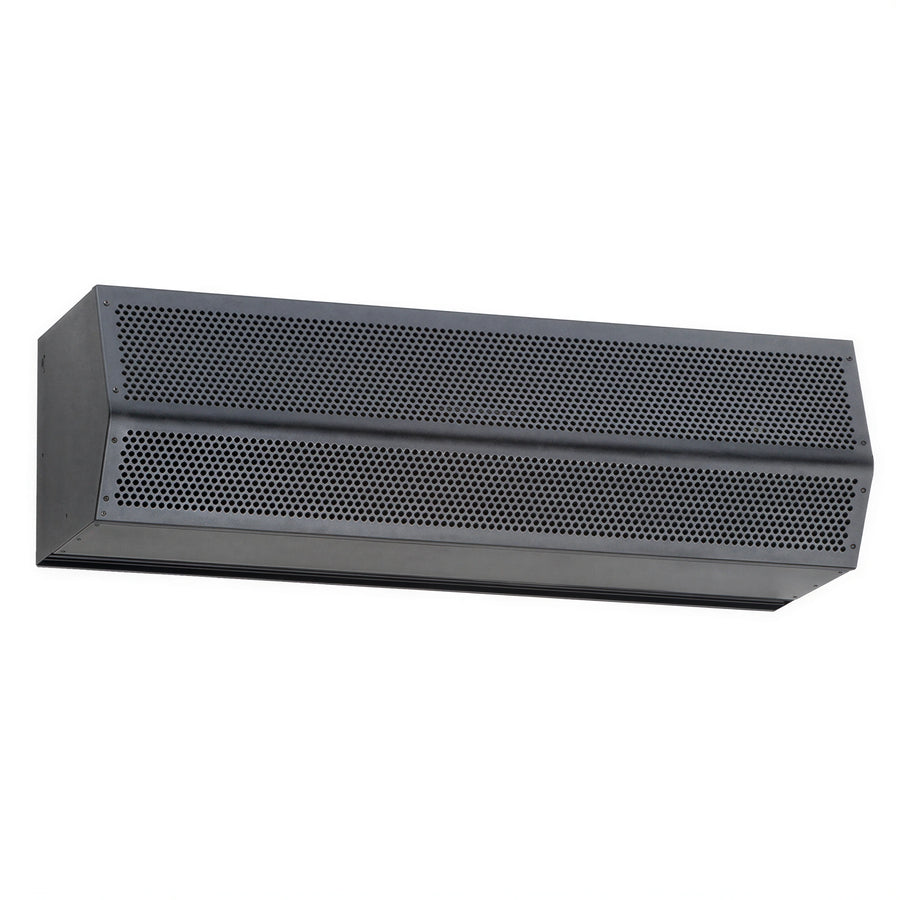

Mars Air Systems N236-1UH-OB Unheated Air Curtain for 36" Door, 1/2 HP Motor, Galvanized Steel Cabinet
The Mars Air Systems N236-1UH-OB is an unheated N2 Series air curtain for a 36-inch door. It has a galvanized steel cabinet with an Obsidian Black powder coat finish, one 1/2 HP motor, and a 460 V, 60 Hz, three-phase electrical configuration.
It is ETL-certified to conform to ANSI/NSF 37 standards for customer entrances up to 7 feet and includes adjustable air directional vanes with a 40-degree sweep.
- 36-inch nozzle length and overall length
- Maximum opening height: 8 feet
- Five-year parts warranty
Unheated operation
N2 Series air curtain configured for unheated operation.
36-inch coverage
36-inch nozzle length and overall length for a 36-inch door.
Sanitation certification
ETL-certified to conform to ANSI/NSF 37 standards for customer entrances up to 7 feet.
Galvanized steel cabinet
Galvanized steel cabinet with an Obsidian Black powder coat finish.
Single motor
One continuous-duty 1/2 HP TEAO motor with NEMA 1 construction.
Three-phase electrical configuration
460 V, 60 Hz, three-phase power configuration.
Adjustable air direction
Adjustable air directional vanes provide a 40-degree sweep from front to back.
Parts warranty
Includes a five-year parts warranty.
Certifications & Compliance
Warranty & Protection
Five-year parts warranty.
