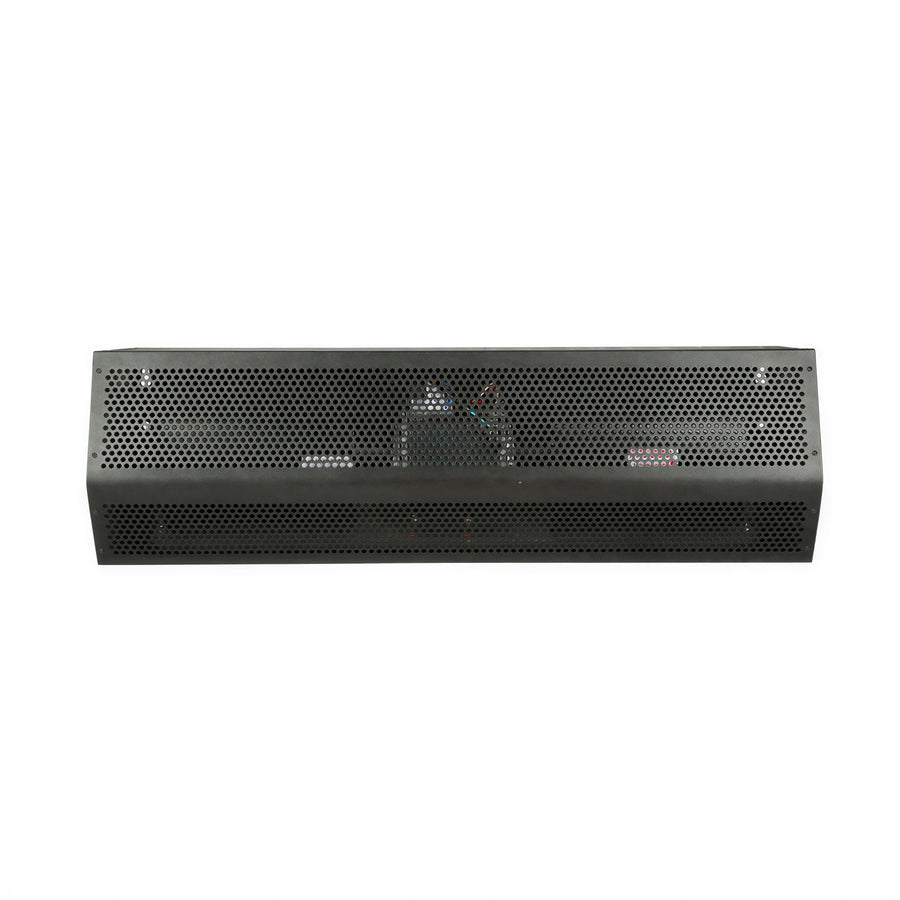

Mars Air Systems N2120-3UH-OB Unheated Air Curtain, 120" Wide, 8' Opening, 3 Motors
The Mars Air Systems N2120-3UH-OB is an unheated N2 Series air curtain specified for a 120-inch door and a maximum opening height of 8 ft.
It features a galvanized steel cabinet with an Obsidian Black powder coat finish, three 1/2 hp motors, and a 460 V, 60 Hz, three-phase electrical configuration. The unit is sanitation certified to ANSI/NSF 37 standards and is ETL certified.
- 120-inch nozzle and overall length
- Three continuous-duty TEAO motors with NEMA 1 construction
- Adjustable air directional vanes with a 40-degree front-to-back sweep
Unheated operation
The N2 Series configuration is unheated.
120-inch door coverage
The unit is specified for a 120-inch door and has a 120-inch nozzle length.
Three-motor configuration
Three 1/2 hp continuous-duty Totally Enclosed Air Over motors provide the motor configuration for this model.
460V three-phase power
The exact model is specified for 460 V, 60 Hz, three-phase power.
Sanitation standard
The product is identified as sanitation certified to ANSI/NSF 37 standards.
Galvanized steel cabinet
The cabinet is galvanized steel with an Obsidian Black powder coat finish.
Adjustable air direction
Adjustable air directional vanes provide a 40-degree sweep from front to back.
Parts warranty
The manufacturer lists a 5-year parts warranty.
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
