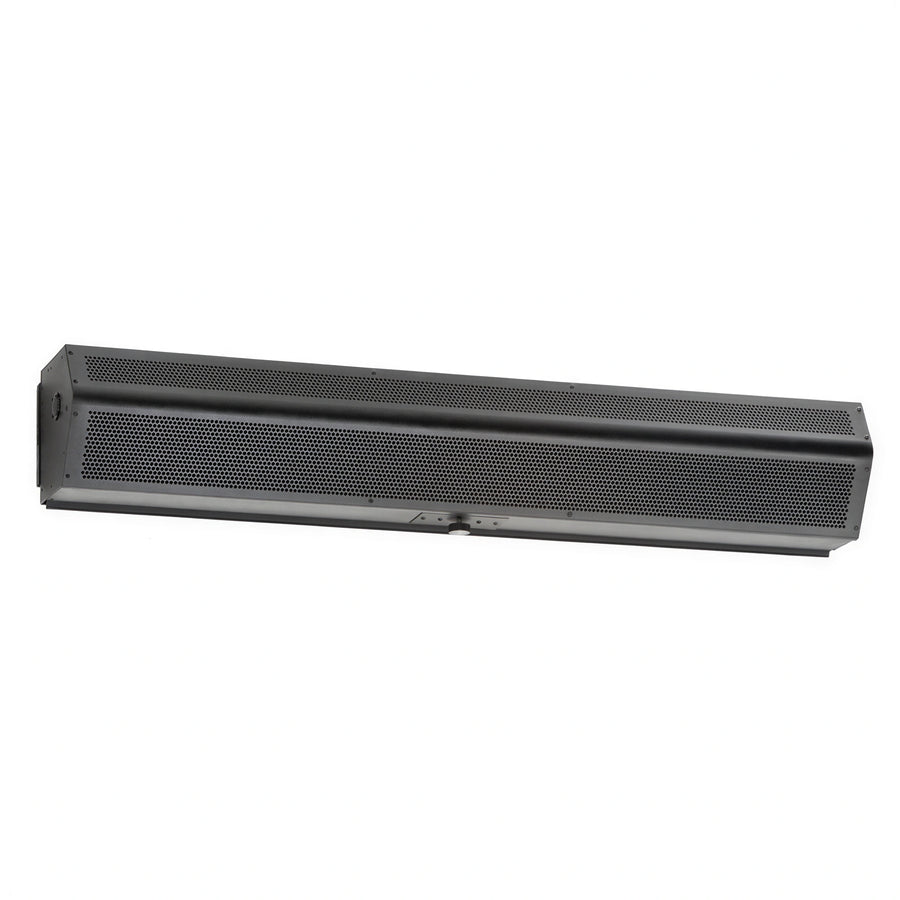

Mars Air Systems LPV296-2UA-OB Unheated Air Curtain for 96" Door, 2 Motors, Black Powder-Coated Galvanized Steel
LPV296-2UA-OB is an unheated LoPro Series 2 air curtain specified for a 96-inch-wide door. Its galvanized steel cabinet has an Obsidian Black powder coat finish and houses two 1/6 HP motors.
The unit uses 115V/60/1-phase power and includes variable-speed control with an off setting plus an adjustable air directional vane with a 40-degree sweep from front to back.
- Maximum opening height: 8 ft
- Maximum velocity: 1,800 fpm
- Maximum air volume: 2,400 cfm
Product Weight:
115.0 lbUnheated operation
Designed as an unheated air curtain.
Door application
Specified for a 96-inch-wide door, with a maximum opening height of 8 ft.
Motor package
Uses two continuous-duty 1/6 HP NEMA 1 motors.
Cabinet and finish
Galvanized steel cabinet with an Obsidian Black powder coat finish.
Electrical configuration
115V/60/1-phase configuration.
Variable-speed control
Variable speed controller includes an off setting.
Air direction adjustment
Adjustable air directional vane provides a 40-degree sweep from front to back.
Mounting bracket
Includes a removable wall mounting bracket.
Air performance
Maximum velocity is 1,800 fpm and maximum air volume is 2,400 cfm.
Certification
cETLus certified.
Warranty
5-year parts warranty.
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
