Mars Air Systems

Mars Air Systems LPV260-1UD-OB Unheated Air Curtain for 60" Door, 1/6 HP Motor, Galvanized Steel Cabinet

SKU: LPV260-1UD-OB
$1,003.06
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

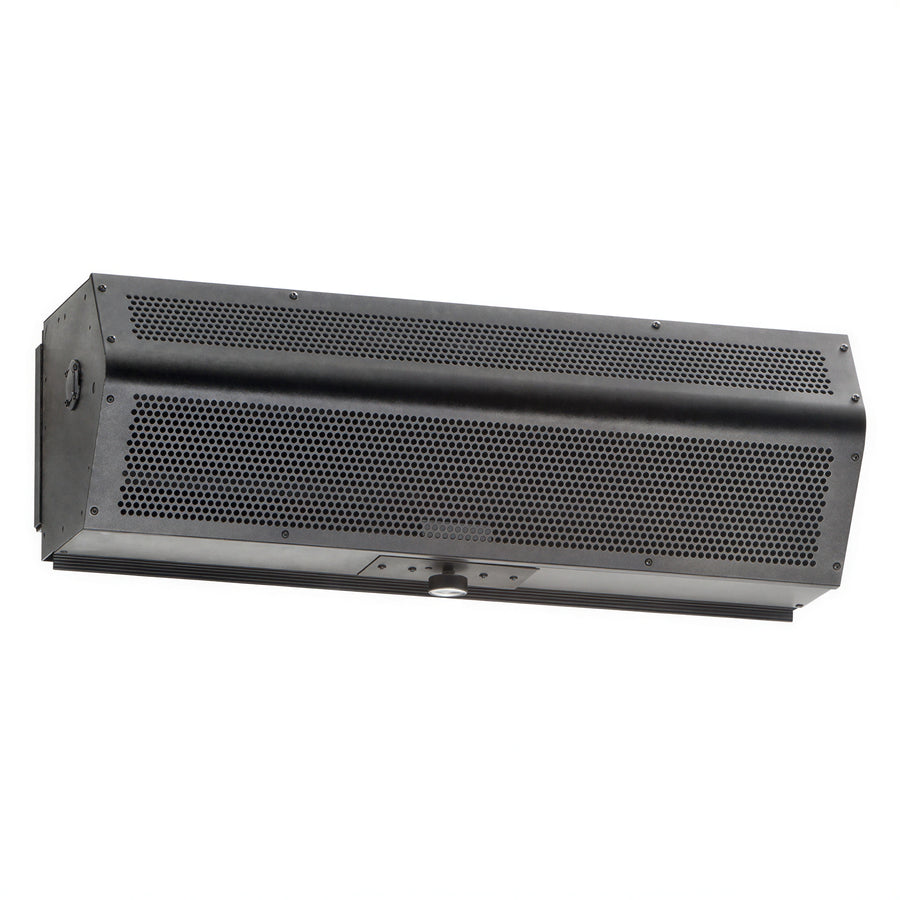

Mars Air Systems LPV260-1UD-OB is an unheated LoPro Series 2 air curtain for 60-inch-wide door openings. It has a galvanized steel cabinet with an Obsidian Black powder coat finish and one 1/6 HP motor.

  • Designed for openings up to 8 feet high.
  • 208–230 V, 60 Hz, single-phase electrical configuration.
  • Variable speed controller with an off setting.
  • Adjustable air directional vane with a 40° front-to-back sweep.
  • Removable wall mounting bracket.
  • cETLus certification.

Product Weight:

80.0 lb

Unheated operation

The LPV260-1UD-OB is an unheated air curtain.

Single 1/6 HP motor

Uses one 1/6 HP continuous-duty NEMA 1 motor.

Variable speed control

Includes a variable speed controller with an off setting.

Adjustable air direction

The air directional vane provides a 40° front-to-back sweep.

Galvanized steel cabinet

The cabinet has an Obsidian Black powder coat finish.

Wall mounting bracket

A removable wall mounting bracket is provided for installation.

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment
Series LoPro Series 2
Type Unheated air curtain
Door opening width 60 in
Model length 60 in
Cabinet material Galvanized steel
Cabinet finish Obsidian Black powder coat
Motor count 1
Motor horsepower 1/6 HP
Voltage 208–230 V
Frequency 60 Hz
Phase Single-phase
Maximum opening height 8 ft
Maximum velocity 1,800 fpm
Maximum air volume 1,500 CFM
Nozzle length 60 in
Rear mounting distance 28 in
Sound level 53 dBA at 10 ft in a free field
Width 22 in
Depth 29 in
Height 15 in
Weight 80.0 lb

Warranty & Protection

5-year parts warranty.

Documents

PDF Cutsheet PDF Download PDF Lpv2 unheated submittals PDF Download PDF Marketing sheet PDF Download PDF Collateral PDF Download PDF Collateral refrigeration PDF Download

Frequently Asked Questions

No. It is an unheated LoPro Series 2 air curtain.
It is specified for a 60-inch-wide door opening and a maximum opening height of 8 feet.
It uses 208–230 V, 60 Hz, single-phase electrical service.
It has one 1/6 HP continuous-duty NEMA 1 motor.
Yes. It has a variable speed controller with an off setting and an adjustable air directional vane with a 40° front-to-back sweep.
A 5-year parts warranty is specified.
