Play manufacturer video for Mars Air Systems LPV248-1UA-OB Unheated Air Curtain for 48 in Door, 1/6 HP Motor, Galvanized Steel CabinetMars Air Systems LPV248-1UA-OB Unheated Air Curtain for 48 in Door, 1/6 HP Motor, Galvanized Steel Cabinet
SKU: LPV248-1UA-OB
$960.46

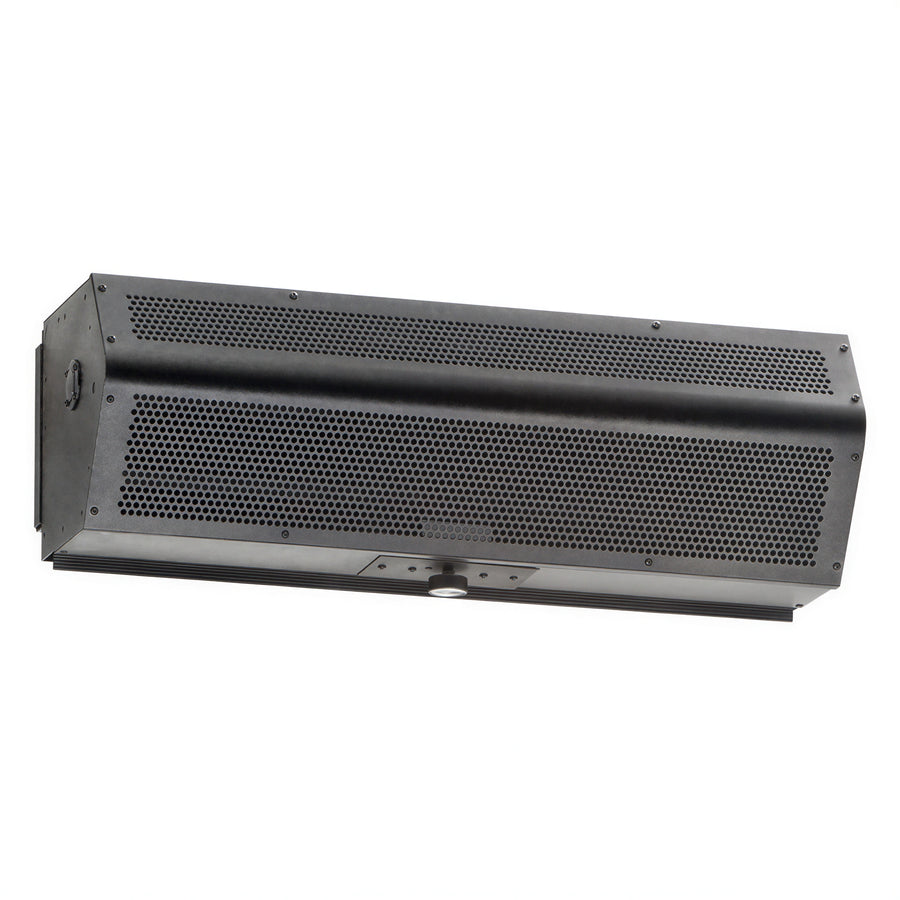

The Mars Air Systems LPV248-1UA-OB is an unheated LoPro Series 2 air curtain for a 48 in door. It has a galvanized steel cabinet with an Obsidian Black powder coat finish, one 1/6 HP motor, and 115 V, 60 Hz, single-phase power.
- Maximum opening height: 8 ft
- Maximum air volume: 1,200 cfm
- Maximum velocity: 1,800 fpm
- Includes a variable speed controller with off setting and an adjustable air directional vane.
Product Weight:
47.0 lbUnheated operation
Designed as an unheated air curtain.
48 in door coverage
Specified for a 48 in door.
Galvanized steel cabinet
The cabinet is galvanized steel with an Obsidian Black powder coat finish.
Continuous-duty motor
Uses one 1/6 HP continuous-duty motor.
Variable speed control
Includes a variable speed controller with an off setting.
Adjustable air direction
The air directional vane provides a 40° sweep from front to back.
Removable wall mounting bracket
Includes a removable wall mounting bracket.
Series
LoPro Series 2
Type
Unheated
Door width
48 in
Maximum opening height
8 ft
Motor count
1 motor
Motor horsepower
1/6 HP
Motor duty
Continuous duty
Motor enclosure
NEMA 1
Voltage
115 V
Frequency
60 Hz
Phase
1-phase
Overall length
48 in
Nozzle length
48 in
Rear mounting distance
22 in
Maximum velocity
1,800 fpm
Maximum air volume
1,200 cfm
Sound level
52 dBA at 10 ft, free field
Cabinet material
Galvanized steel
Finish
Obsidian Black powder coat
Weight
47 lb
Warranty & Protection
5-year parts warranty
Frequently Asked Questions
No. The LPV248-1UA-OB is an unheated air curtain.
It is specified for a 48 in door.
It uses 115 V, 60 Hz, single-phase power.
It has one 1/6 HP continuous-duty motor.
The galvanized steel cabinet has an Obsidian Black powder coat finish.
A 5-year parts warranty is specified.
