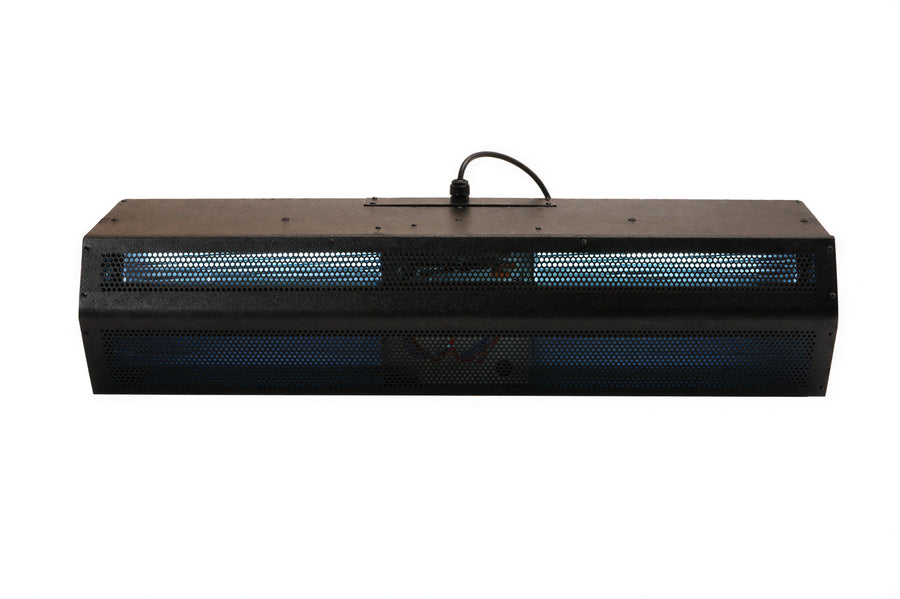

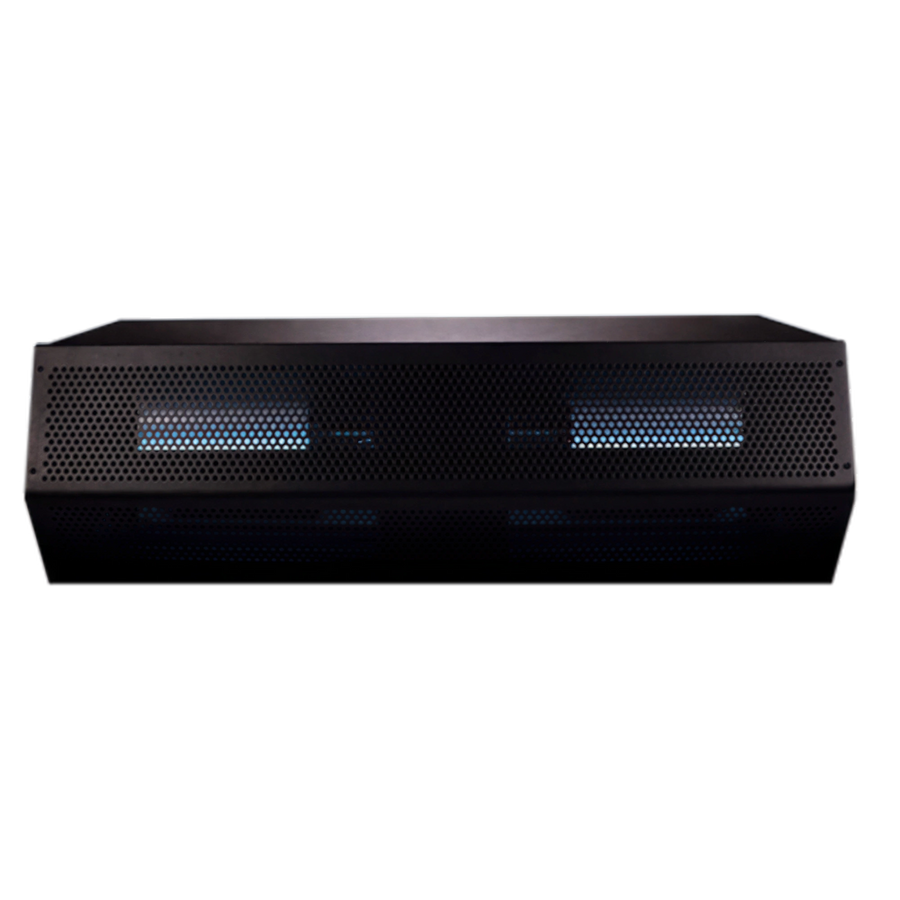

Mars Air Systems LPV242-1UD-OB-UVP Unheated Air Curtain, 42 in. Wide, 12 ft Opening, UVC
SKU: LPV242-1UD-OB-UVP
$1,646.40
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout
Unheated air curtain for 42-inch door openings. The Mars Air Systems LPV242-1UD-OB-UVP features a UVC package, one 1/6 HP motor, and a 24 V control circuit.
- Designed for a 42-inch-wide door and openings up to 12 ft high.
- Galvanized steel cabinet with an Obsidian Black powder coat finish.
- Includes a magnetic switch, part 99-018, and a cord and plug.
- Electrical specification: 208-230 V, 60 Hz, single phase.
Overall Dimensions:
42.0"W x 12.75"D x 12.13"HUnheated operation
The unit is specified as an unheated air curtain.
UVC package
The exact model is a packaged UVC air curtain.
Door opening coverage
Designed for a 42-inch-wide door opening with a maximum opening height of 12 ft.
Magnetic switch and control
Includes magnetic switch 99-018 and a 24 V control circuit.
Cabinet and finish
Galvanized steel cabinet with an Obsidian Black powder coat finish.
Motor
Uses one 1/6 HP motor.
Electrical connection
Specified for 208-230 V, 60 Hz, single-phase power and includes a cord and plug.
Series
LoPro Series 2
Type
Unheated air curtain
Opening width
42 in
Maximum opening height
12 ft
UVC package
UVC
Motors
1 motor
Motor horsepower
1/6 hp
Voltage
208-230 V
Frequency
60 Hz
Phase
Single phase
Current
1.2 A
Control voltage
24 V
Electrical connection
Cord and plug
Cabinet material
Galvanized steel
Finish
Obsidian Black powder coat
Included switch
Magnetic switch, part 99-018
Certifications & Compliance
Frequently Asked Questions
No. It is specified as an unheated air curtain.
It is designed for a 42-inch-wide door opening and has a maximum opening height of 12 ft.
Yes. The LPV242-1UD-OB-UVP is a packaged UVC model.
The unit is specified for 208-230 V, 60 Hz, single-phase power and draws 1.2 A. It includes a cord and plug.
The unit includes a magnetic switch, part 99-018, and a 24 V control circuit.
The listed dimensions are 42 in. wide by 12.75 in. deep by 12.13 in. high.
