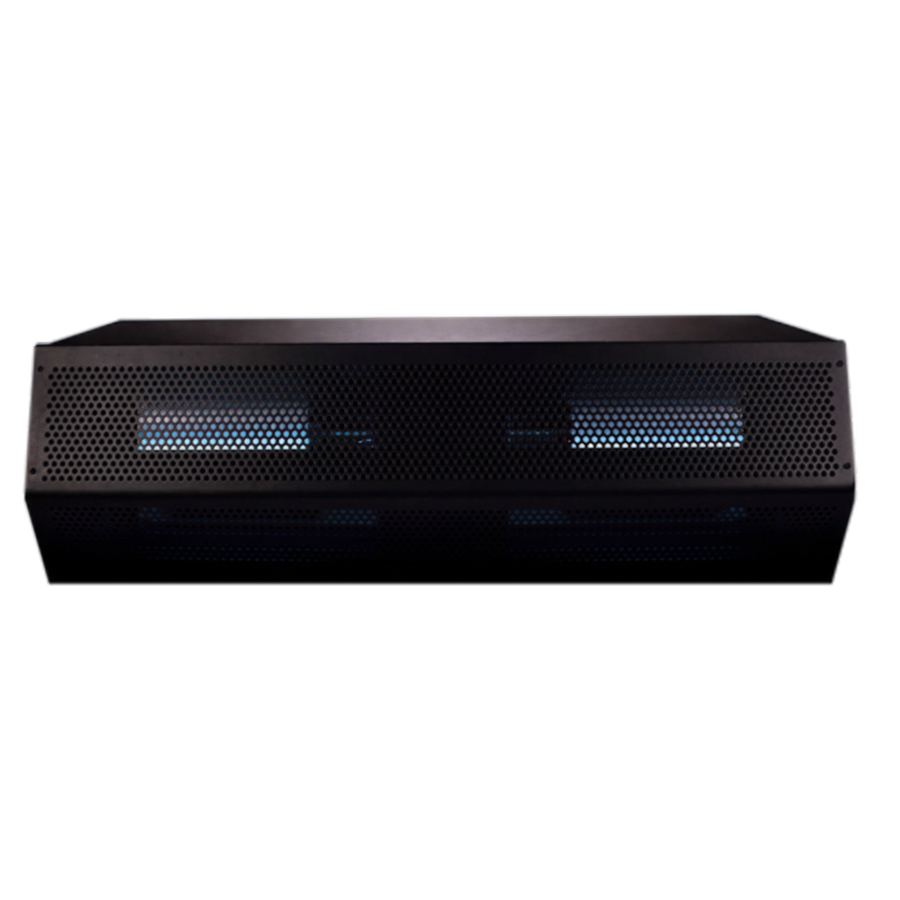

Mars Air Systems LPV242-1UA-OB-UVP Unheated Air Curtain for 42" Door with UVC and Magnetic Switch
SKU: LPV242-1UA-OB-UVP
$1,646.40
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout
The Mars Air Systems LPV242-1UA-OB-UVP is a LoPro Series 2 unheated air curtain for a 42-inch-wide door. It includes a UVC package, a surface-mounted magnetic switch, and 24V control.
- UVC eradication package
- Magnetic switch, part 99-018, included
- Galvanized steel cabinet with Obsidian Black powder coat finish
- One 1/6 HP motor
- 115V, 60 Hz, single-phase electrical specification with cord and plug
Overall Dimensions:
42.0"W x 12.75"D x 12.13"HUVC package
Includes UVC eradication functionality.
Magnetic switch
Includes surface-mounted magnetic switch part 99-018.
Unheated operation
Configured as an unheated air curtain.
24V control
Uses a 24V control circuit.
Motor and electrical
Equipped with one 1/6 HP motor and rated for 115V, 60 Hz, single-phase operation at 2.4 amps.
Cabinet and finish
Galvanized steel cabinet with an Obsidian Black powder coat finish.
Series
LoPro Series 2
Door width
42 in
Type
Unheated
UVC package
Included
Magnetic switch
Included; part 99-018
Control voltage
24 V
Motor
1 × 1/6 HP
Voltage
115 V
Frequency
60 Hz
Phase
1 phase
Current
2.4 A
Power connection
Cord and plug
Cabinet material
Galvanized steel
Finish
Obsidian Black powder coat
Maximum opening height
12 ft
Certifications & Compliance
Frequently Asked Questions
No. It is an unheated air curtain.
It is designed for a 42-inch-wide door.
Yes. A surface-mounted magnetic switch, part 99-018, is included.
It is rated for 115V, 60 Hz, single-phase operation at 2.4 amps and includes a cord and plug.
Yes. The model includes a UVC eradication package.
