Play manufacturer video for Mars Air Systems LPV236-1UD-OB-UVP 36-Inch Unheated Air Curtain with UVCMars Air Systems LPV236-1UD-OB-UVP 36-Inch Unheated Air Curtain with UVC
SKU: LPV236-1UD-OB-UVP
$1,477.15

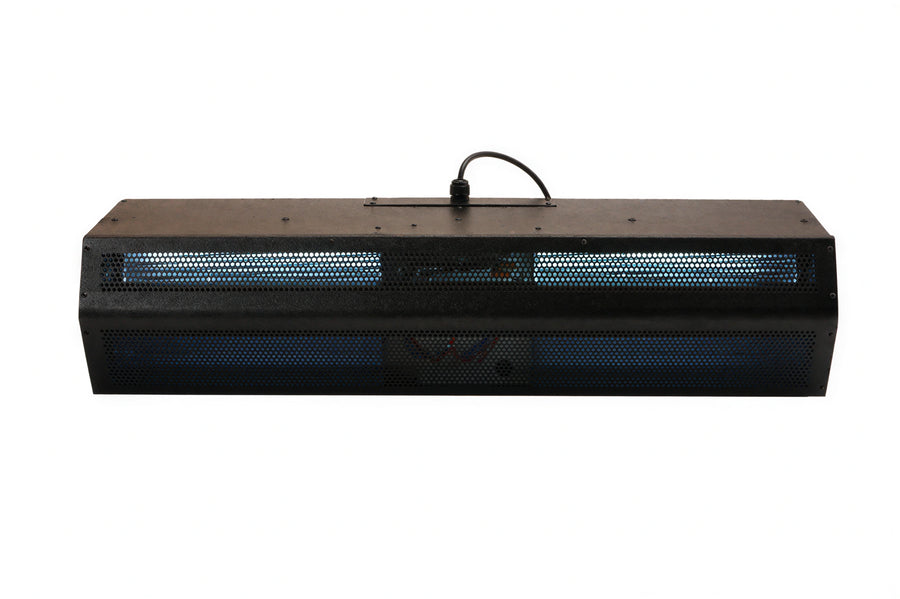

The Mars Air Systems LPV236-1UD-OB-UVP is an unheated LoPro Series 2 air curtain designed for a 36-inch door opening. It features UVC eradication and a galvanized steel cabinet with an Obsidian Black powder coat finish.
- Includes a magnetic switch, part 99-018, and 24 V control.
- Uses one 1/6 hp motor and operates at 208–230 V, 60 Hz, single phase.
- Includes a cord and plug.
Overall Dimensions:
36.0"W x 12.75"D x 12.13"HProduct Weight:
31.8 lbUVC eradication
The UVP configuration provides UVC eradication.
Unheated operation
This air curtain is configured without heat.
Magnetic switch included
Includes surface-mounted magnetic switch 99-018.
24 V control
Includes a 24 V control circuit.
Galvanized steel cabinet
The cabinet has an Obsidian Black powder coat finish.
Single motor
Uses one 1/6 hp motor.
Cord and plug
Includes a cord and plug for connection.
Series
LoPro Series 2
Type
Unheated
Door width
36 in
Maximum opening height
12 ft
Motors
1 motor
Motor horsepower
1/6 hp
UVC package
UVC eradication
Voltage
208–230 V
Frequency
60 Hz
Phase
Single phase
Current
1.2 A
Control voltage
24 V
Power connection
Cord and plug
Cabinet material
Galvanized steel
Finish
Obsidian Black powder coat
Frequently Asked Questions
It is an unheated LoPro Series 2 air curtain with UVC eradication.
It is designed for a 36-inch door opening.
It operates at 208–230 V, 60 Hz, single phase, with a listed current of 1.2 A.
Yes. It includes magnetic switch 99-018.
The galvanized steel cabinet has an Obsidian Black powder coat finish.
Yes. It includes a 24 V control.
