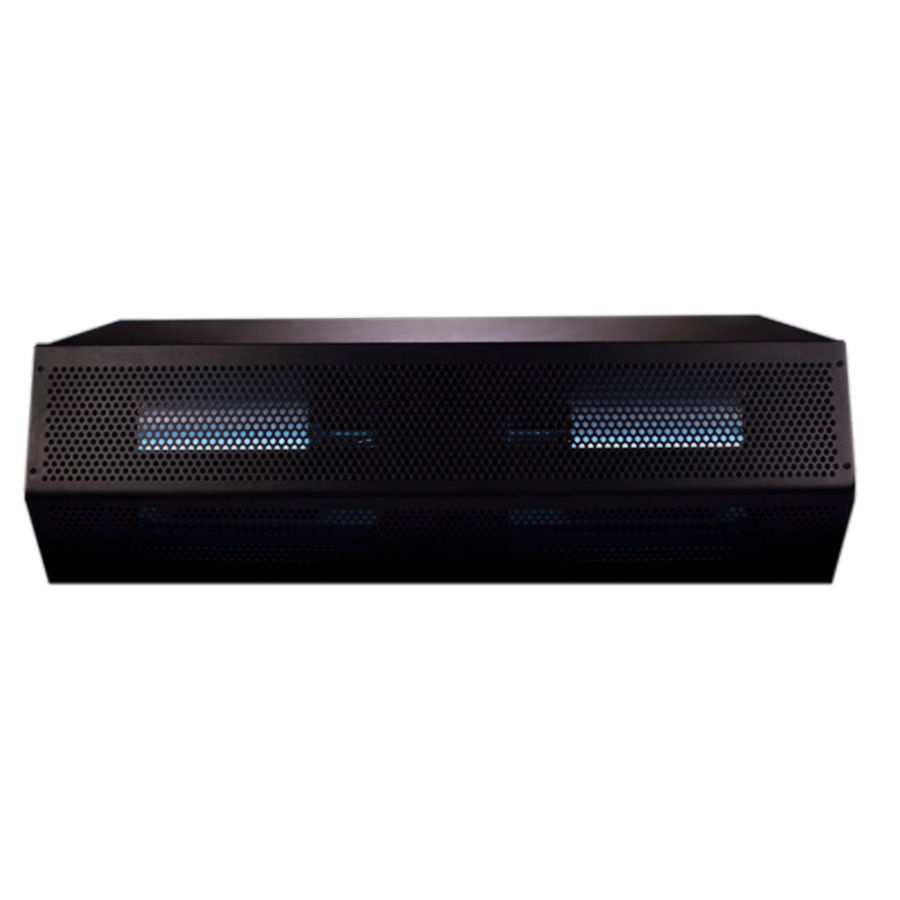

Mars Air Systems LPV236-1UA-OB-UVP Unheated Air Curtain for 36 in Door, 12 ft Opening, 1/6 HP Motor
SKU: LPV236-1UA-OB-UVP
$1,570.80
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout
The Mars Air Systems LPV236-1UA-OB-UVP is an unheated LoPro Series 2 air curtain for a 36 in door and openings up to 12 ft high. It includes a UVC eradication package, magnetic switch 99-018, and 24 V control.
- Galvanized steel cabinet with Obsidian Black powder coat finish
- One 1/6 HP motor
- 115 V, 60 Hz, single-phase operation
- Cord and plug connection
Overall Dimensions:
36.0"W x 12.75"D x 12.13"HProduct Weight:
48.0 lbUnheated operation
Specified as an unheated air curtain.
UVC package
Includes a UVC eradication package.
Magnetic switch
Includes magnetic switch 99-018.
24 V control
Includes 24 V control.
Cabinet finish
Galvanized steel cabinet with Obsidian Black powder coat finish.
Electrical connection
Uses 115 V, 60 Hz, single-phase power with cord and plug.
Series
LoPro Series 2
Type
Unheated
Door width
36 in
Maximum opening height
12 ft
Motor count
1 motor
Motor horsepower
1/6 hp
Voltage
115 V
Frequency
60 Hz
Phase
Single-phase
Current
2.4 A
Control voltage
24 V
Cabinet material
Galvanized steel
Finish
Obsidian Black powder coat
Electrical connection
Cord and plug
Certifications & Compliance
Frequently Asked Questions
No. It is specified as an unheated air curtain.
It is designed for a 36 in door and openings up to 12 ft high.
It uses 115 V, 60 Hz, single-phase power, draws 2.4 A, and includes a cord and plug.
Yes. Magnetic switch 99-018 is included.
Yes. The product includes 24 V control.
The galvanized steel cabinet has an Obsidian Black powder coat finish.
