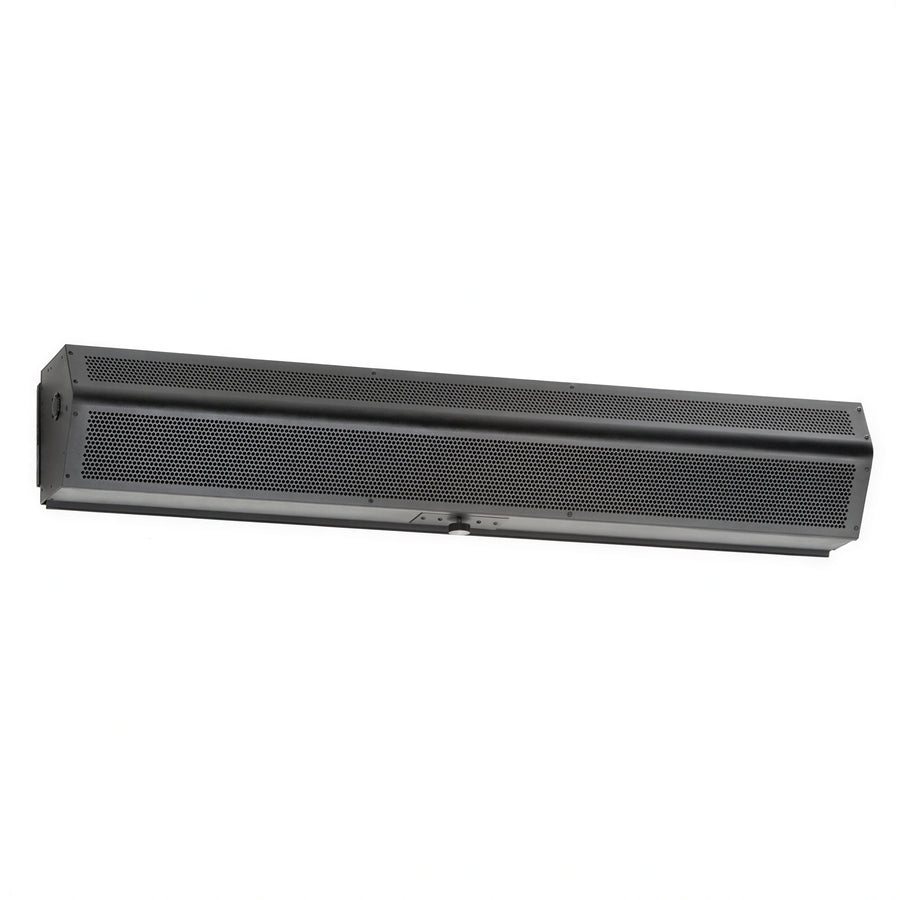

Play manufacturer video for Mars Air Systems LPV2120-2UA-OB Unheated Air Curtain, 120-Inch Width, 2 Motors, 1/6 HP EachMars Air Systems LPV2120-2UA-OB Unheated Air Curtain, 120-Inch Width, 2 Motors, 1/6 HP Each
SKU: LPV2120-2UA-OB
$2,234.40
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout
The Mars Air Systems LPV2120-2UA-OB is an unheated LoPro Series 2 air curtain specified for a 120-inch door opening. It uses two 1/6 HP motors and operates on 115 V, 60 Hz, single-phase power.
- Galvanized steel cabinet with an Obsidian Black powder coat finish.
- Variable speed controller with an off setting.
- Adjustable air directional vane with a 40-degree front-to-back sweep.
- Removable wall mounting bracket.
Product Weight:
140.0 lbUnheated operation
Configured as an unheated air curtain for a 120-inch door opening.
Two-motor design
Uses two 1/6 HP continuous-duty motors.
Variable speed control
Includes a variable speed controller with an off setting.
Adjustable air direction
The air directional vane provides a 40-degree front-to-back sweep.
Cabinet and finish
The cabinet is galvanized steel with an Obsidian Black powder coat finish.
Wall mounting
Includes a removable wall mounting bracket.
Series
LoPro Series 2
Type
Unheated air curtain
Door width
120 in
Maximum opening height
8 ft
Motor count
2 motors
Horsepower per motor
1/6 HP
Voltage
115 V
Frequency
60 Hz
Phase
1 phase
Cabinet material
Galvanized steel
Finish
Obsidian Black powder coat
Overall length
121 1/2 in
Nozzle length
121 1/2 in
Rear mounting distance
28 in
Maximum air velocity
1,800 fpm
Maximum air volume
3,000 cfm
Sound level
54 dBA at 10 ft in a free field
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
Frequently Asked Questions
No. It is an unheated air curtain.
It is specified for a 120-inch door opening.
It uses 115 V, 60 Hz, single-phase power.
It has two 1/6 HP motors.
The galvanized steel cabinet has an Obsidian Black powder coat finish.
The documentation specifies a 5-year parts warranty.
