Play manufacturer video for Mars Air Systems LPV2108-2UA-OB Unheated Air Curtain, 108"W, 8' Opening, (2) 1/6 HP MotorsMars Air Systems LPV2108-2UA-OB Unheated Air Curtain, 108"W, 8' Opening, (2) 1/6 HP Motors

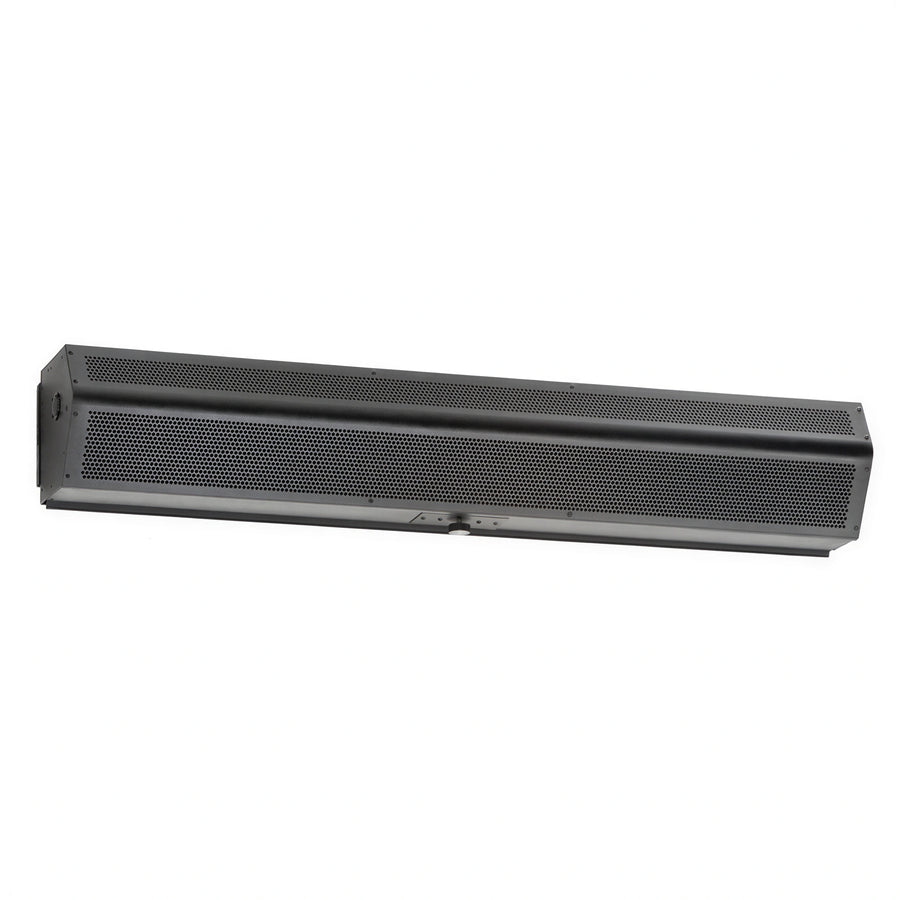

The Mars Air Systems LPV2108-2UA-OB is an unheated LoPro Series 2 air curtain for a 108-inch door opening. It uses two 1/6 HP motors and operates at 115 V, 60 Hz, single phase.
The unit has a galvanized steel cabinet with an Obsidian Black powder coat finish, a variable speed controller with an off setting, and an adjustable air directional vane with a 40-degree sweep.
- For openings up to 8 ft high
- Maximum air velocity of 1,800 fpm
- Maximum air volume of 2,700 cfm
- cETLus certified
Product Weight:
130.0 lbUnheated operation
Provides unheated air curtain operation for the documented application.
108-inch door application
Designed for a 108-inch door opening with a maximum opening height of 8 ft.
Two motors
Uses two 1/6 HP continuous-duty NEMA 1 motors.
115 V electrical operation
Operates at 115 V, 60 Hz, single phase.
Obsidian Black finish
Features a galvanized steel cabinet with an Obsidian Black powder coat finish.
Variable speed control
Includes a variable speed controller with an off setting.
Adjustable air direction
The air directional vane provides a 40-degree sweep from front to back.
Wall mounting bracket
Includes a removable wall mounting bracket.
cETLus certification
The exact product is identified with cETLus certification.
Parts warranty
Documentation specifies a 5-year parts warranty.
Warranty & Protection
5-year parts warranty.
