Mars Air Systems

Mars Air Systems LPN284-2UD-OB Unheated Air Curtain for 84 in. Door, 8 ft Opening, 2 Motors

SKU: LPN284-2UD-OB
$2,016.00
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

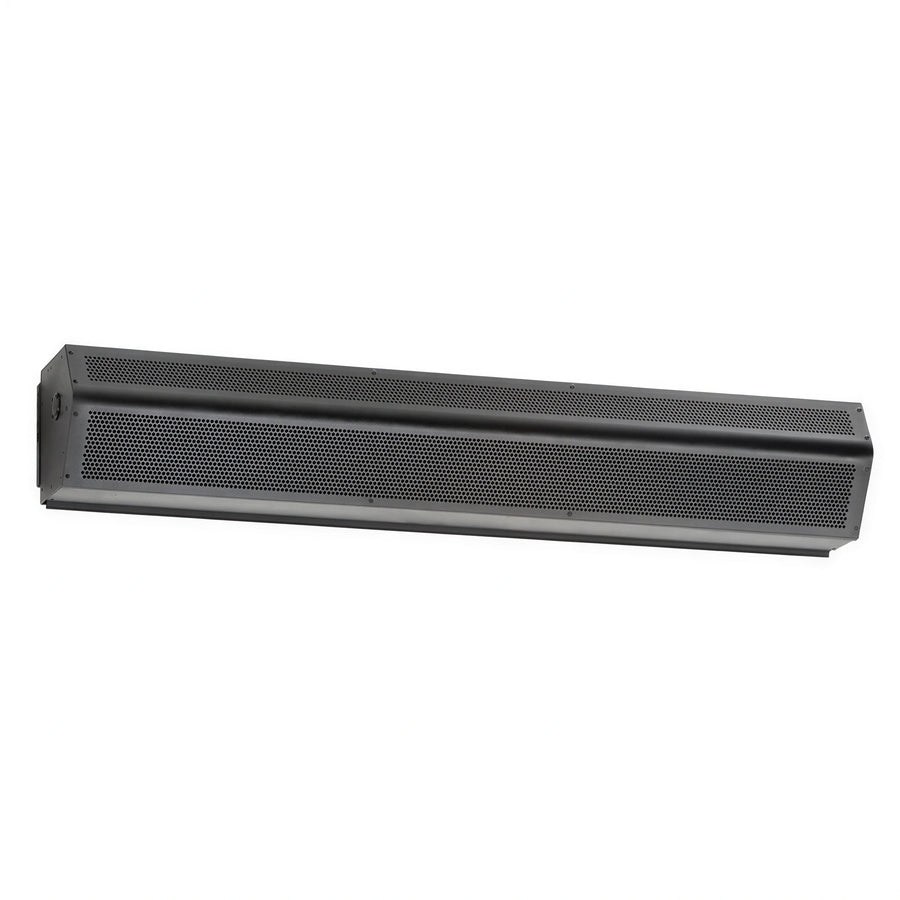

The Mars Air Systems LPN284-2UD-OB is an unheated LoPro Series 2 air curtain designed for an 84-inch door and openings up to 8 feet high. It uses two 1/6 HP motors and operates on 208–230 V, 60 Hz, single-phase power.

  • Sanitation certified to ANSI/NSF 37 standards
  • Galvanized steel cabinet with an Obsidian Black powder coat finish
  • Adjustable air directional vane with a 40-degree front-to-back sweep
  • Removable wall mounting bracket

Unheated operation

Provides an unheated air curtain configuration.

84-inch door coverage

Designed for an 84-inch door and openings up to 8 feet high.

Two-motor configuration

Uses two 1/6 HP continuous-duty NEMA 1 motors.

Adjustable airflow direction

Includes an adjustable air directional vane with a 40-degree sweep from front to back.

Galvanized steel cabinet

Features a galvanized steel cabinet with an Obsidian Black powder coat finish.

Wall mounting

Includes a removable wall mounting bracket.

Sanitation certification

Sanitation certified to ANSI/NSF 37 standards.

Series LoPro Series 2
Type Unheated
Door width 84 in
Maximum opening height 8 ft
Motors 2
Horsepower per motor 1/6 hp
Motor duty Continuous duty
Motor enclosure NEMA 1
Voltage 208–230 V
Frequency 60 Hz
Phase 1-phase
Cabinet material Galvanized steel
Finish Obsidian Black powder coat
Maximum air velocity 1,800 fpm
Maximum air volume 2,100 cfm
Sound level 53 dBA at 10 ft in a free field

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified
Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

5-year parts warranty

Documents

PDF Cutsheet PDF Download PDF Lpn2 unheated sanitation submittals PDF Download PDF Collateral refrigeration PDF Download PDF Marketing sheet PDF Download PDF Collateral PDF Download PDF Video PDF Download

Frequently Asked Questions

No. The LPN284-2UD-OB is an unheated air curtain.
It is designed for an 84-inch door with a maximum opening height of 8 feet.
It operates on 208–230 V, 60 Hz, single-phase power.
It has two 1/6 HP continuous-duty motors.
The galvanized steel cabinet has an Obsidian Black powder coat finish.
The product includes a 5-year parts warranty.
