Play manufacturer video for Mars Air Systems LPN242-1UD-OB Unheated Air Curtain for 42 in Door, 1/6 HP Motor, Obsidian Black Galvanized SteelMars Air Systems LPN242-1UD-OB Unheated Air Curtain for 42 in Door, 1/6 HP Motor, Obsidian Black Galvanized Steel

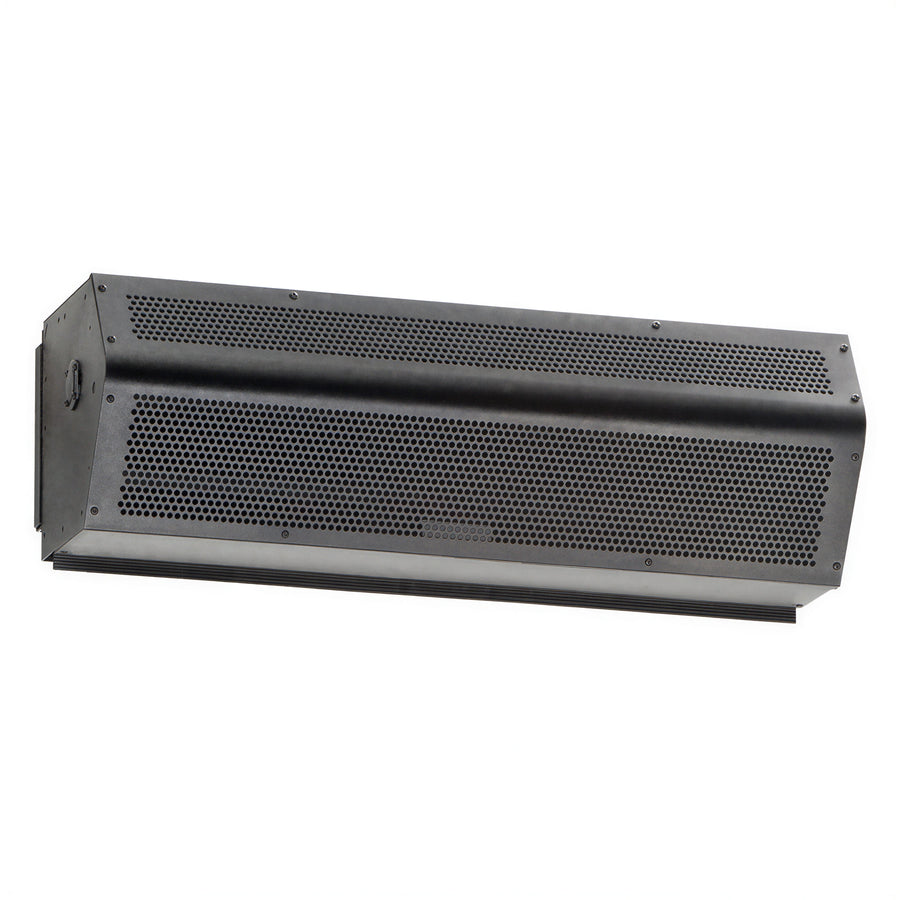

The Mars Air Systems LPN242-1UD-OB is an unheated LoPro Series 2 air curtain designed for a 42-inch door. It features a galvanized steel cabinet with an Obsidian Black powder-coat finish and one 1/6 HP motor.
- 208–230 V, 60 Hz, single-phase electrical configuration
- Sanitation certified to ANSI/NSF 37 standards
- Model data lists 1,800 fpm maximum velocity and 1,050 cfm maximum volume at 60 Hz and 1,725 RPM
- Adjustable air directional vane with a 40-degree front-to-back sweep
- Removable wall mounting bracket
Product Weight:
35.0 lbUnheated operation
Provides air-curtain operation without a heating element.
42-inch coverage
The model has a 42-inch overall length and 42-inch nozzle length for a 42-inch door.
Single 1/6 HP motor
Uses one continuous-duty 1/6 HP NEMA 1 motor.
Galvanized steel cabinet
The cabinet is made from galvanized steel and has an Obsidian Black powder-coat finish.
ANSI/NSF 37 sanitation certification
The product is specified as sanitation certified to ANSI/NSF 37 standards.
Adjustable air direction
The air directional vane provides a 40-degree front-to-back sweep.
Removable wall mounting bracket
Includes a removable wall mounting bracket design.
Documented air performance
Model data lists 1,800 fpm maximum velocity and 1,050 cfm maximum volume at 60 Hz and 1,725 RPM.
Certifications & Compliance
Warranty & Protection
5-year parts warranty
