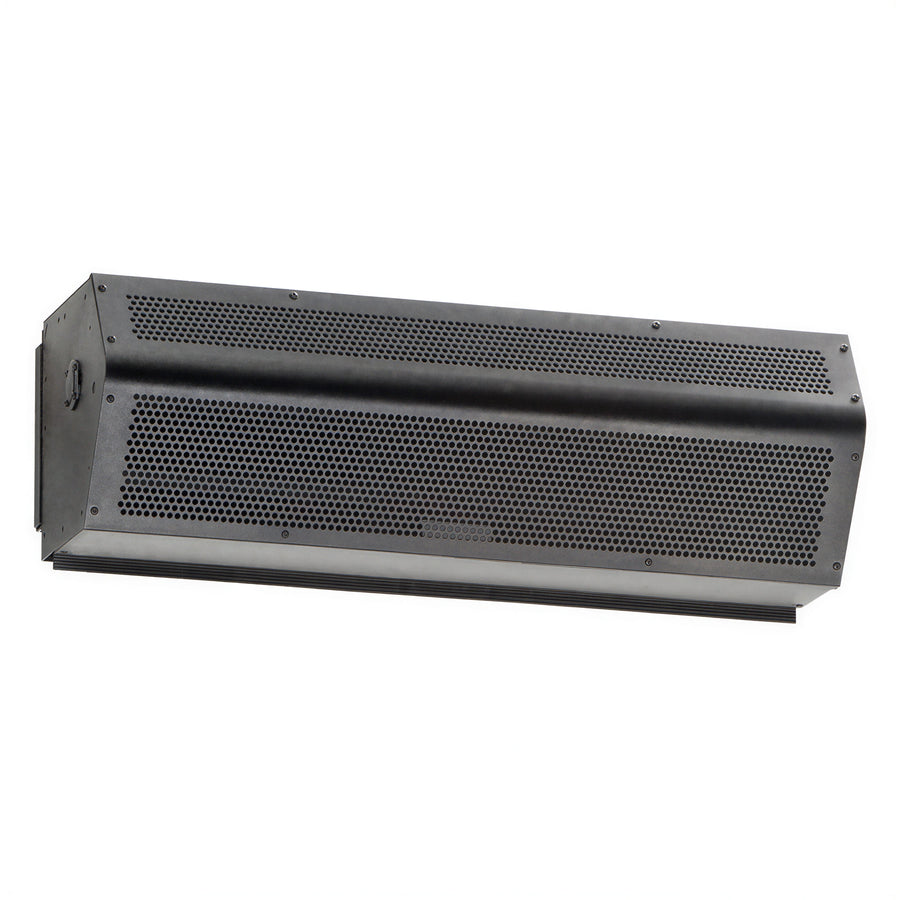

Mars Air Systems LPN236-1UD-OB Unheated Air Curtain for 36 in Door, 8 ft Opening, 1/6 HP Motor
The Mars Air Systems LPN236-1UD-OB is an unheated LoPro Series 2 air curtain for a 36-inch door and openings up to 8 feet high. It has one 1/6 HP motor, a galvanized steel cabinet, and an Obsidian Black powder coat finish.
- Operates at 208–230 V, 60 Hz, single phase.
- Provides a maximum air volume of 900 cfm and maximum velocity of 1,800 fpm.
- ETL certified to ANSI/NSF 37 sanitation standards.
Unheated operation
Provides air curtain airflow without a heating function.
36-inch door coverage
Specified for a 36-inch-wide door and openings up to 8 feet high.
Single 1/6 HP motor
Uses one 1/6 HP continuous-duty NEMA 1 motor.
Air performance
Maximum velocity is 1,800 fpm and maximum air volume is 900 cfm.
Adjustable air direction
Includes an adjustable air directional vane with a 40-degree front-to-back sweep.
Galvanized steel cabinet
Cabinet construction is galvanized steel with an Obsidian Black powder coat finish.
Wall mounting bracket
Includes a removable wall mounting bracket.
Sanitation certification
ETL certified to conform to ANSI/NSF 37 sanitation standards.
Certifications & Compliance
Warranty & Protection
5-year parts warranty
