Mars Air Systems LPN2120-2UD-OB Unheated Air Curtain, 120" Wide, 8 ft Opening, 2 Motors

SKU: LPN2120-2UD-OB
$2,234.40
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

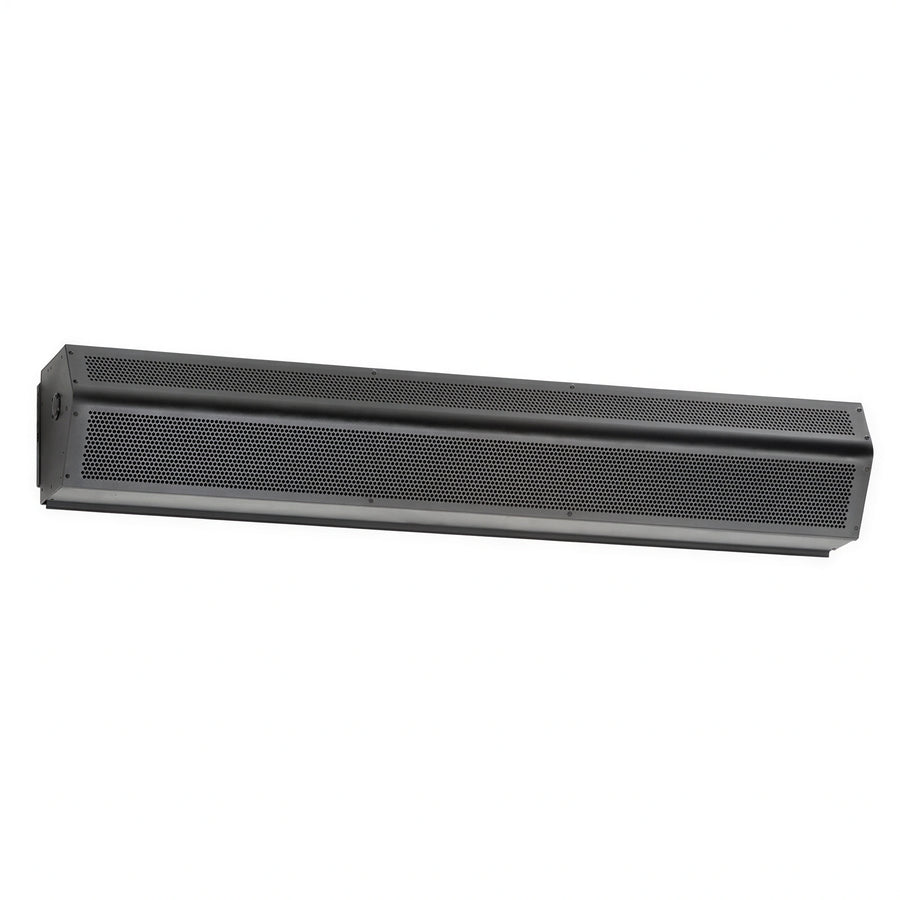

Mars Air Systems LPN2120-2UD-OB is an unheated LoPro Series 2 air curtain designed for a 120-inch door and openings up to 8 ft high.

  • Two 1/6 HP motors
  • 208–230 V, 60 Hz, single-phase electrical configuration
  • Galvanized steel cabinet with an Obsidian Black powder coat finish
  • Sanitation certified to ANSI/NSF 37 standards
  • Maximum air volume of 3,000 cfm and maximum velocity of 1,800 fpm

Unheated operation

Provides unheated air curtain operation.

Two-motor configuration

Uses two 1/6 HP motors.

Sanitation certification

Certified to ANSI/NSF 37 sanitation standards.

Obsidian Black finish

Features a galvanized steel cabinet with an Obsidian Black powder coat finish.

Adjustable airflow direction

Includes an adjustable air directional vane with a 40° front-to-back sweep.

Wall mounting bracket

Includes a removable wall mounting bracket.

Airflow performance

Rated for a maximum velocity of 1,800 fpm and maximum volume of 3,000 cfm.

Series LoPro Series 2
Type Unheated
Nominal width 120 in
Maximum opening height 8 ft
Motors 2 motors
Horsepower per motor 1/6 HP
Voltage 208–230 V
Frequency 60 Hz
Phase 1 phase
Cabinet material Galvanized steel
Finish Obsidian Black powder coat
Sanitation standard ANSI/NSF 37
Maximum air velocity 1,800 fpm
Maximum air volume 3,000 cfm
Weight 102 lb

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed
Certified badge of NSF Certified
NSF Certified

Warranty & Protection

5-year parts warranty

Documents

PDF Cutsheet PDF Download PDF Lpn2 unheated sanitation submittals PDF Download PDF Marketing sheet PDF Download PDF Video PDF Download PDF Collateral PDF Download PDF Collateral refrigeration PDF Download

Frequently Asked Questions

No. It is an unheated air curtain.
It has two 1/6 HP motors.
It uses 208–230 V, 60 Hz, single-phase power.
It is designed for a 120-inch door and openings up to 8 ft high.
Yes. It is certified to ANSI/NSF 37 sanitation standards.
