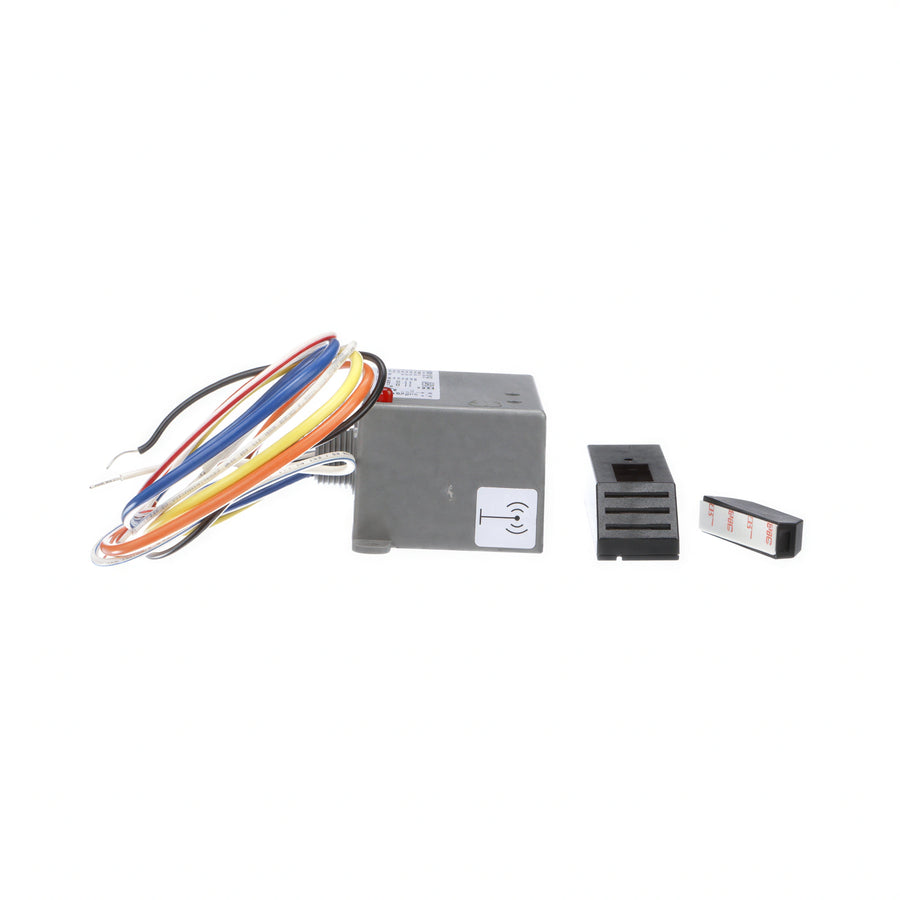

Mars Air Systems J0722 Air Door Controller Kit with Surface-Mounted Magnetic Reed Switch, (2) 1/2 HP Motors Max, 115V/1-Ph
SKU: J0722
$520.80
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout
The Mars Air Systems J0722 is an industrial air door controller kit with a surface-mounted magnetic reed switch. It operates on 115V single-phase power and supports up to (2) 1/2 HP motors.
- Industrial metal surface-mounted magnetic reed switch
- No time delay
- 115V/1-phase operation
- Solid-state control package
- Maximum capacity of (2) 1/2 HP motors
Industrial surface-mounted magnetic reed switch
Uses the industrial 99-125 surface-mounted magnetic reed switch with metal construction.
115V single-phase operation
Designed for 115V/1-phase power.
Two-motor capacity
Rated for up to (2) 1/2 HP motors.
No time delay
This model is specified without a time-delay function.
Solid-state control
The control package uses solid-state control for air door operation.
Type
Control package
Controller type
Solid-state
Voltage
115V
Phase
1-phase
Door switch
Industrial surface-mounted magnetic reed switch
Time delay
None
Motor capacity
(2) 1/2 HP max
Door switch voltage rating
120VAC max
Door switch amperage rating
3A max
Maximum reed switch gap
1/2 inch
Certifications & Compliance
Warranty & Protection
1-year parts warranty.
Frequently Asked Questions
The J0722 is rated for 115V single-phase operation.
It uses an industrial surface-mounted magnetic reed switch.
No. The J0722 is specified as a no-time-delay controller kit.
It supports up to (2) 1/2 HP motors.
The cutsheet states a 1-year parts warranty.
