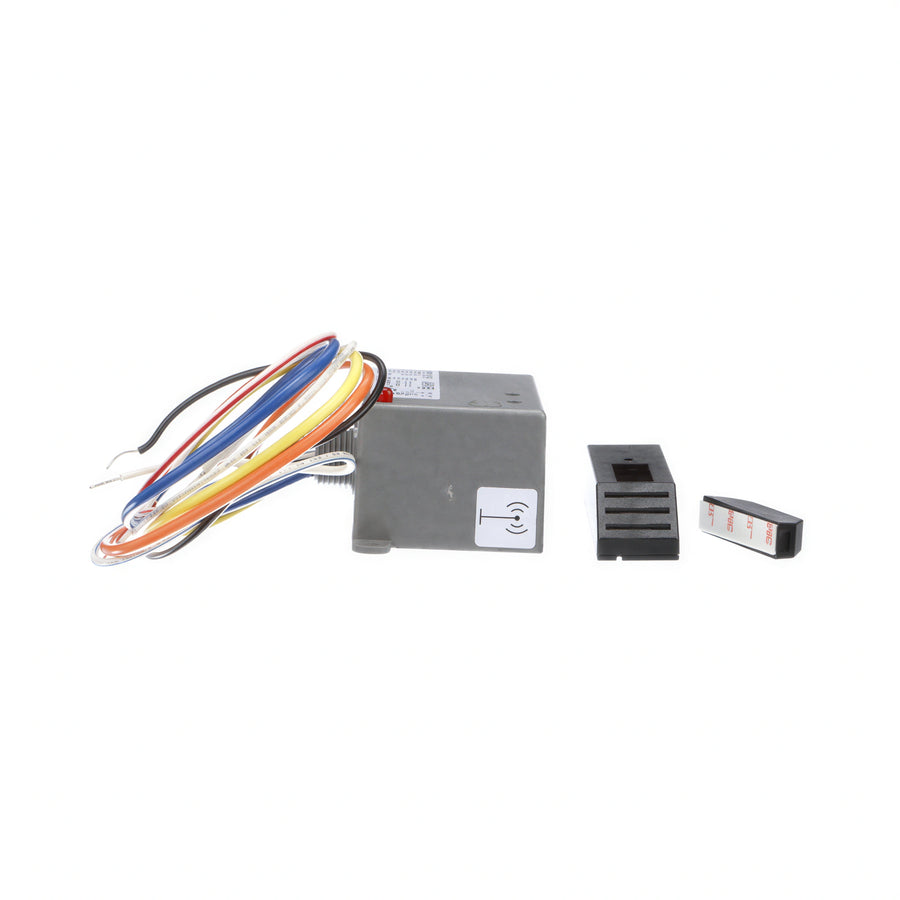

Play manufacturer video for Mars Air Systems J0706 Air Door Controller Kit with Surface-Mounted Magnetic Reed Switch, 2-Motor Maximum, 208–277V, Single-PhaseMars Air Systems J0706 Air Door Controller Kit with Surface-Mounted Magnetic Reed Switch, 2-Motor Maximum, 208–277V, Single-Phase
SKU: J0706
$294.00
The Mars Air Systems J0706 is a solid-state air door controller kit for 208-277V single-phase applications.
- Includes a commercial plastic surface-mounted magnetic reed switch.
- Supports up to two 1/2 HP motors.
- Uses a no-time-delay controller configuration.
- The switch has normally open and normally closed contacts.
Product Weight:
15.0 lbSolid-state control
The kit uses a solid-state controller package for air curtain control.
Motor capacity
Rated for up to two 1/2 HP motors.
Magnetic reed switch
Uses a commercial plastic surface-mounted magnetic reed switch, part 99-018.
No time delay
J0706 is the no-time-delay configuration.
Switch contacts
The magnetic reed switch provides normally open and normally closed contacts.
Switch rating
The commercial magnetic reed switch is rated up to 24 VAC and 1/2 A maximum.
NEMA rating
The control package is rated for NEMA 1 applications when field installed by others.
Type
Control package
Controller type
Solid-state
Voltage
208-277V
Phase
Single-phase
Motor capacity
(2) 1/2 HP maximum
Time delay
None
Door switch
Commercial surface-mounted magnetic reed switch, part 99-018
Switch construction
Plastic
Switch rating
Up to 24 VAC; 1/2 A maximum
Switch contacts
Single-pole, normally open and normally closed
NEMA rating
NEMA 1; field installed by others
Certifications & Compliance
Warranty & Protection
1 year parts warranty
Frequently Asked Questions
The J0706 is specified for 208-277V single-phase operation.
It supports up to two 1/2 HP motors.
No. J0706 is the no-time-delay controller configuration.
It uses a commercial plastic surface-mounted magnetic reed switch, part 99-018.
