Play manufacturer video for Mars Air Systems J0029 Air Door Controller Kit, Adjustable 6-Second–20-Minute Time Delay, Plunger/Roller Switch, 1/2 HP Max, 208-277V, 1-PhaseMars Air Systems J0029 Air Door Controller Kit, Adjustable 6-Second–20-Minute Time Delay, Plunger/Roller Switch, 1/2 HP Max, 208-277V, 1-Phase
SKU: J0029
$331.80
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout

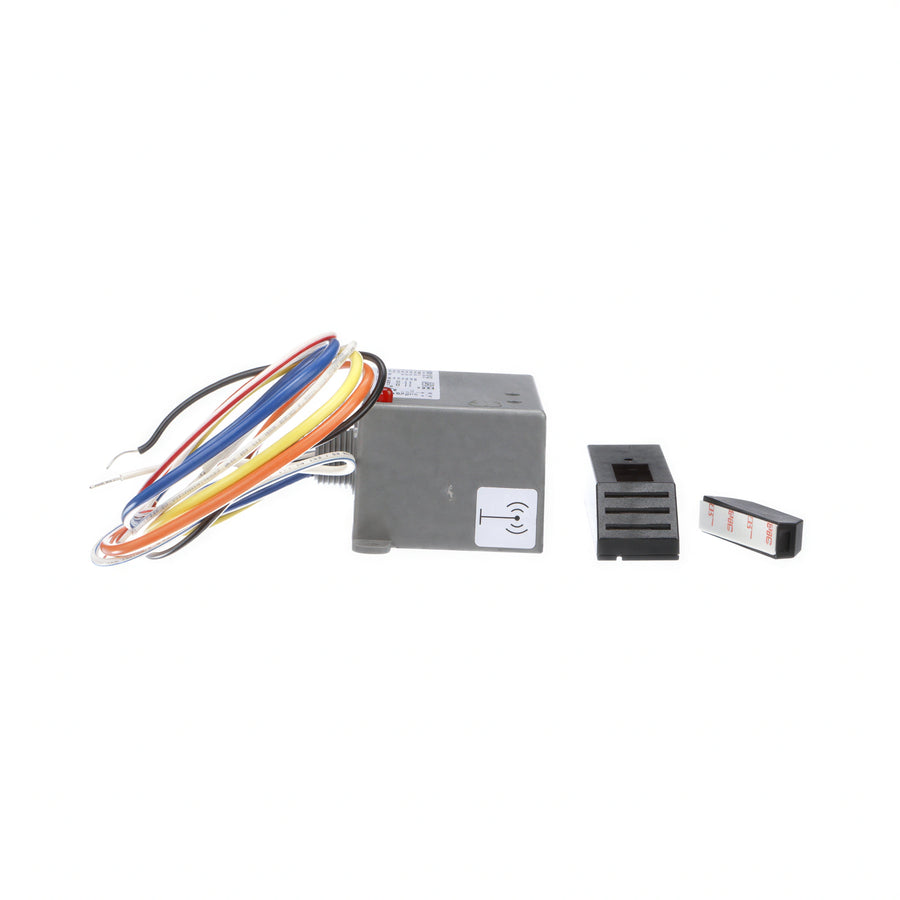

The Mars Air Systems J0029 is a commercial air door controller kit with an adjustable 6-second to 20-minute time delay and a combination plunger/roller mechanical switch.
- Specified for 208-277 V, 1-phase operation.
- Supports a maximum motor rating of 1/2 HP.
Adjustable time delay
Field-adjustable time delay ranges from 6 seconds to 20 minutes.
Combination plunger/roller switch
Uses a combination plunger/roller mechanical limit switch, part 99-014.
Solid-state controller package
The J0029 is identified as part of Mars Air Systems' solid-state RIB control packages.
Single-phase operation
Specified for 208-277 V, 1-phase operation.
Motor rating
Rated for a maximum motor load of 1/2 HP.
Type
control package
Package type
Commercial
Voltage
208-277 V
Phase
1-phase
Maximum motor rating
1/2 HP max
Time delay
Adjustable, 6 seconds to 20 minutes
Door switch
Combination plunger/roller mechanical switch
Door switch part number
99-014
Frequently Asked Questions
The time delay adjusts from 6 seconds to 20 minutes.
The kit uses a combination plunger/roller mechanical limit switch, part 99-014.
The maximum motor rating is 1/2 HP.
The J0029 is specified for 208-277 V, 1-phase operation.
