Play manufacturer video for Mars Air Systems HV296-2UG-TS Unheated Air Curtain for 96 in Door, 2 Motors, Galvanized Steel CabinetMars Air Systems HV296-2UG-TS Unheated Air Curtain for 96 in Door, 2 Motors, Galvanized Steel Cabinet

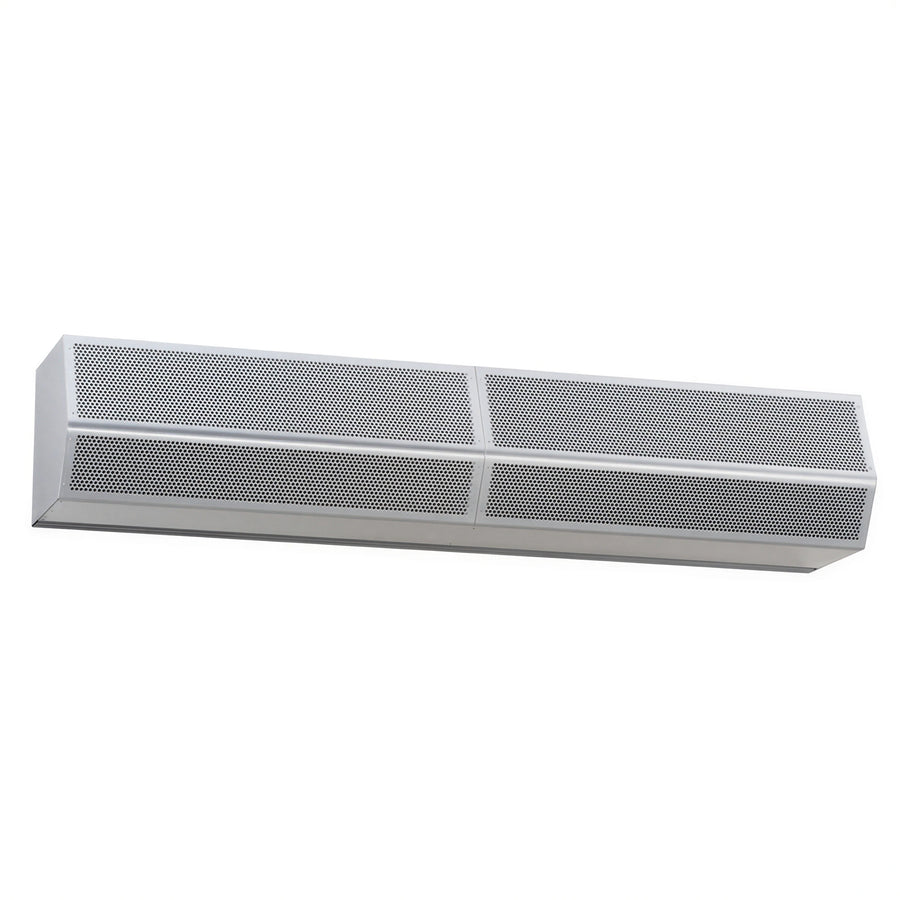

The Mars Air Systems HV296-2UG-TS is an unheated High Velocity 2 air curtain designed for a 96 in door. It uses two 1 HP motors and has a galvanized steel cabinet with a Titanium Silver powder coat finish.
This model is specified for 208–230 V, 60 Hz, three-phase service. Adjustable air directional vanes provide a 40-degree sweep from front to back.
- Configuration: Unheated air curtain for a 96 in door.
- Motor system: Two continuous-duty 1 HP TEAO motors.
- Published performance: 6,144 fpm maximum core velocity, 2,447 fpm average velocity, and 4,894 cfm volume.
- Warranty: 5-year parts warranty.
Overall Dimensions:
96.0"W x 15.63"D x 14.0"HUnheated air curtain
High Velocity 2 series configuration for a 96 in door.
Two 1 HP motors
Two continuous-duty Totally Enclosed Air Over motors rated at 1 HP each; motors are NEMA 1.
Galvanized steel cabinet
The cabinet has a Titanium Silver powder coat finish.
Adjustable air direction
Air directional vanes provide a 40-degree sweep from front to back.
Three-phase electrical configuration
Specified for 208–230 V, 60 Hz, three-phase service.
Published air performance
Model data lists 6,144 fpm maximum core velocity, 2,447 fpm average velocity, and 4,894 cfm volume.
5-year parts warranty
The product sheet lists a 5-year parts warranty.
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
