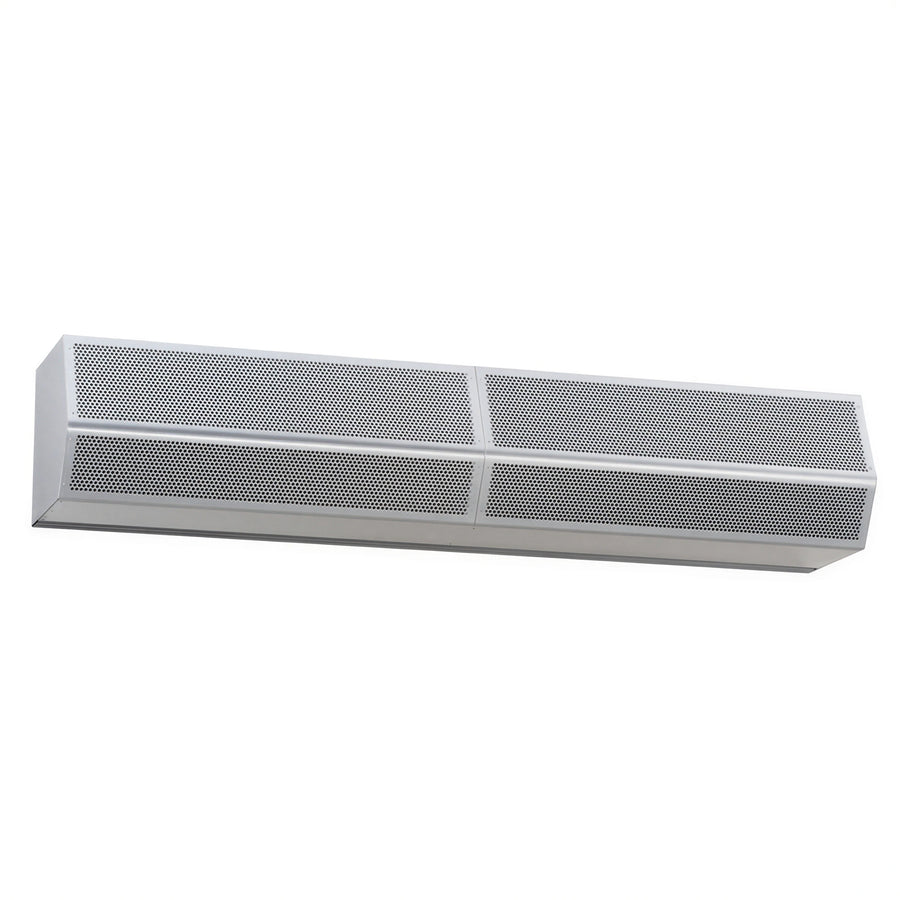

Mars Air Systems HV272-2UH-TS Unheated Air Curtain for 72" Door, 2 Motors, 1 HP Each

SKU: HV272-2UH-TS
$3,208.80
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

The Mars Air Systems HV272-2UH-TS is an unheated High Velocity 2 air curtain designed for a 72-inch door opening.

  • Two 1 HP continuous-duty TEAO motors
  • 460 V, 60 Hz, 3-phase electrical configuration
  • Galvanized steel cabinet with Titanium Silver powder coat finish
  • Adjustable air directional vanes with a 40° front-to-back sweep
  • Maximum opening height of 14 ft
  • 5-year parts warranty

Overall Dimensions:

72.0"W x 15.63"D x 14.0"H

Unheated operation

Designed as an unheated air curtain for a 72-inch opening.

Two 1 HP motors

Uses two 1 HP continuous-duty Totally Enclosed Air Over motors with NEMA 1 construction.

460 V three-phase power

Specified for 460 V, 60 Hz, 3-phase electrical service.

Adjustable air direction

Directional vanes provide a 40° sweep from front to back.

Galvanized steel cabinet

The cabinet has a Titanium Silver powder coat finish.

High Velocity 2 series

Part of the Mars Air Systems High Velocity 2 series.

Series High Velocity 2
Type Unheated
Width 72 in
Motors 2 motors
Horsepower per motor 1 HP
Motor type Continuous-duty TEAO, NEMA 1
Voltage 460 V
Frequency 60 Hz
Phase 3-phase
Cabinet material Galvanized steel
Finish Titanium Silver powder coat
Maximum opening height 14 ft
Air directional vane sweep 40° front to back

Certifications & Compliance

Warranty & Protection

5-year parts warranty

Documents

PDF Cutsheet PDF Download PDF Hv2 unheated submittals PDF Download PDF Video PDF Download PDF Marketing sheet PDF Download PDF Collateral PDF Download PDF Collateral refrigeration PDF Download

Frequently Asked Questions

No. The HV272-2UH-TS is an unheated air curtain.
It has two 1 HP motors.
It is specified for 460 V, 60 Hz, 3-phase service.
The maximum opening height is 14 ft.
The product measures 72 in wide, 15.63 in deep, and 14 in high.
The product includes a 5-year parts warranty.
