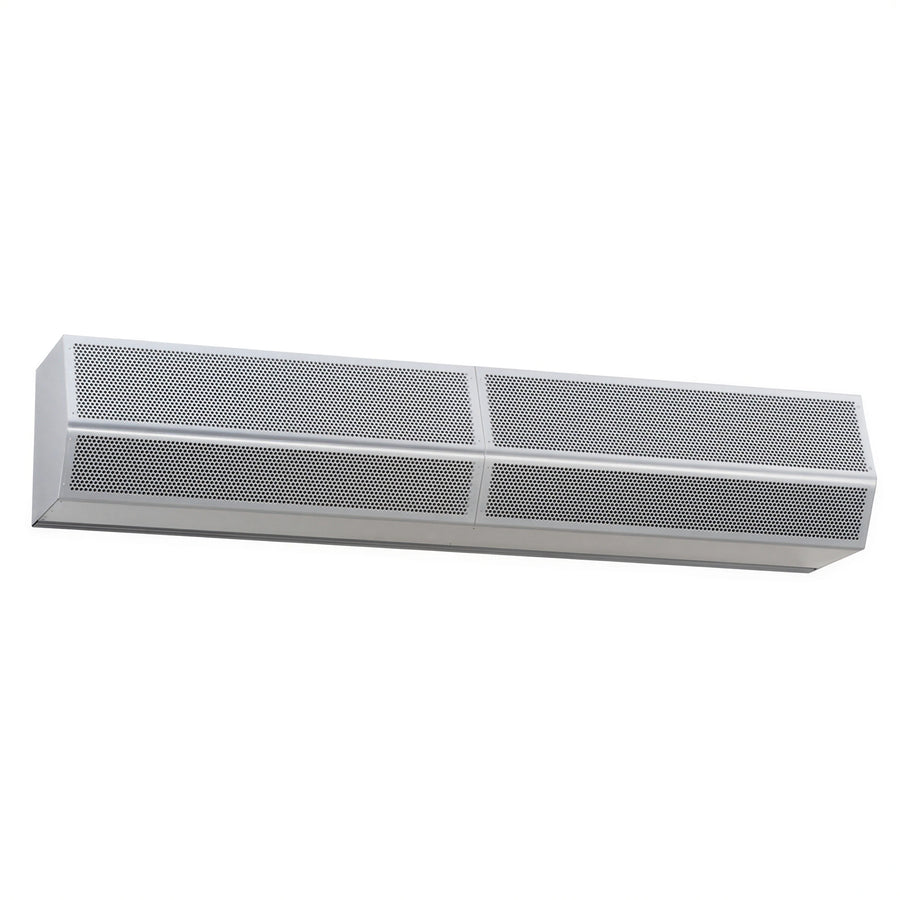

Mars Air Systems HV260-1UH-TS Unheated Air Curtain for 60" Door, 1 HP Motor, Galvanized Steel Cabinet
The Mars Air Systems HV260-1UH-TS is a High Velocity 2 unheated air curtain sized for a 60-inch door. It has one 1 HP motor, 460 V/60 Hz/3-phase electrical service, and a galvanized steel cabinet with a Titanium Silver powder coat finish.
Published mechanical data lists a 2,856 CFM air volume, 6,100 fpm maximum core velocity, and 2,285 fpm average velocity. The model is not AMCA-certified and includes a listed 5-year parts warranty.
- Opening height: Rated for openings up to 14 ft.
- Air direction: Adjustable vanes provide a 40° front-to-back sweep.
Overall Dimensions:
60.0"W x 15.63"D x 14.0"HUnheated operation
Specified as an unheated air curtain.
60-inch door coverage
Sized for a 60-inch-wide door opening.
1 HP motor
Uses one 1 HP continuous-duty TEAO motor with NEMA 1 construction.
460 V three-phase power
Specified for 460 V, 60 Hz, 3-phase electrical service.
Galvanized steel cabinet
Features a galvanized steel cabinet with a Titanium Silver powder coat finish.
Adjustable air direction
Directional vanes provide a 40° front-to-back sweep.
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
