Play manufacturer video for Mars Air Systems HV260-1UD-TS Unheated Air Curtain for 60" Door, 1 HP Motor, Galvanized Steel CabinetMars Air Systems HV260-1UD-TS Unheated Air Curtain for 60" Door, 1 HP Motor, Galvanized Steel Cabinet

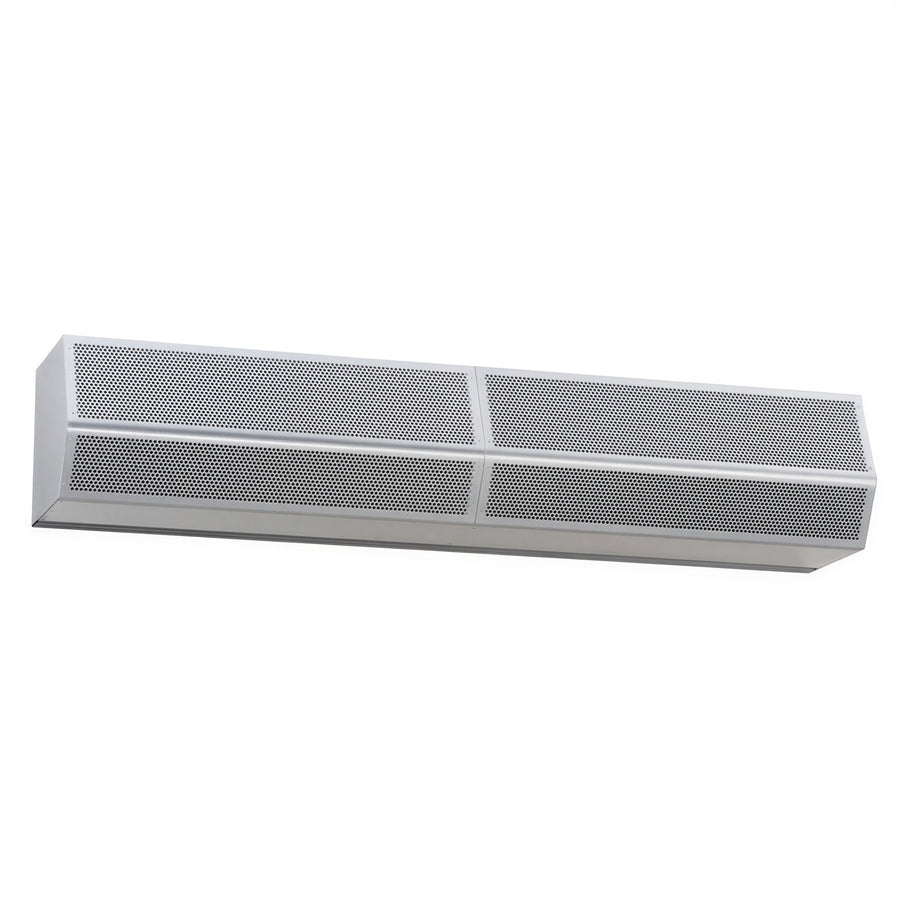

HV260-1UD-TS is an unheated High Velocity 2 air curtain sized for a 60-inch-wide door. It uses one 1 HP motor with 208–230 V, 60 Hz, single-phase power.
The galvanized steel cabinet has a Titanium Silver powder coat finish. Adjustable air directional vanes provide a 40-degree sweep from front to back.
- Listed maximum core velocity: 6,100 fpm
- Listed average velocity: 2,285 fpm
- Listed air volume: 2,856 cfm
- 5-year parts warranty
Overall Dimensions:
60.0"W x 15.63"D x 14.0"HUnheated operation
Unheated air curtain configuration for a 60-inch-wide door.
Single 1 HP motor
One continuous-duty Totally Enclosed Air Over motor, NEMA 1, with 208–230 V, 60 Hz, single-phase power.
Galvanized steel cabinet
Cabinet construction is galvanized steel.
Titanium Silver finish
Titanium Silver powder coat finish.
Adjustable air direction
Air directional vanes provide a 40-degree sweep from front to back.
Listed airflow performance
The listed data includes 6,100 fpm maximum core velocity, 2,285 fpm average velocity, 2,856 cfm air volume, and 80% velocity uniformity.
Parts warranty
5-year parts warranty.
Certifications & Compliance
Warranty & Protection
5-year parts warranty.
