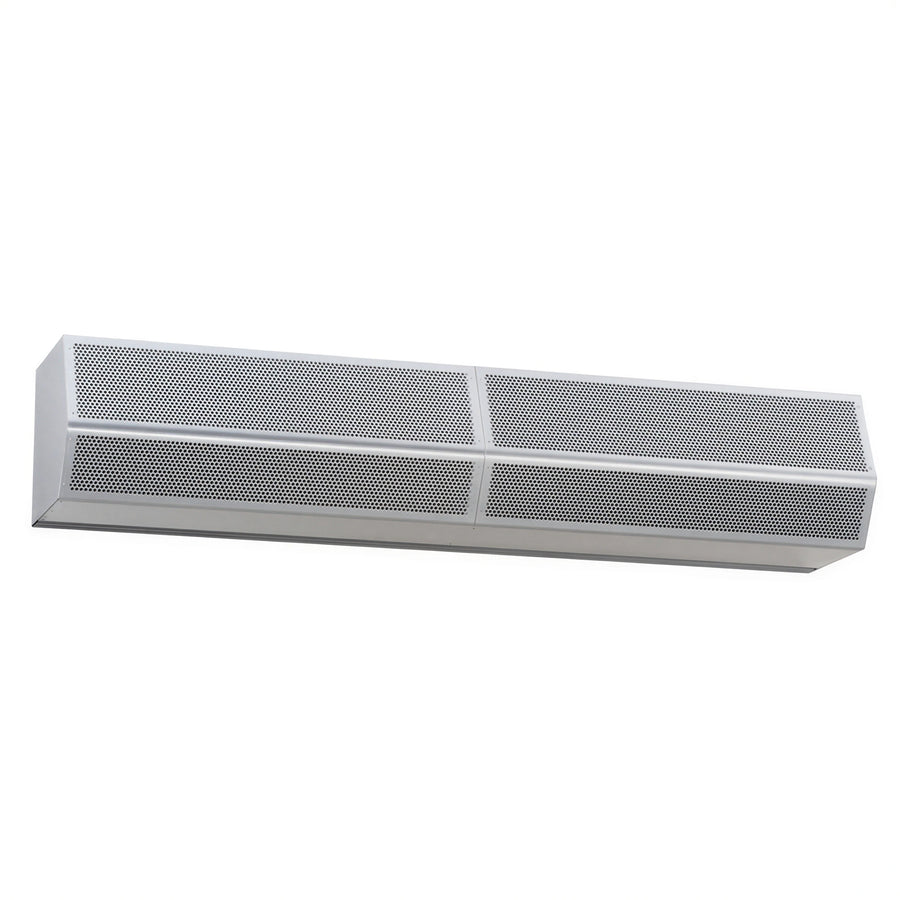

Mars Air Systems HV248-1UH-TS Unheated Air Curtain for 48" Door, Galvanized Steel Cabinet, 1 HP Motor
The Mars Air Systems HV248-1UH-TS is an unheated High Velocity 2 air curtain specified for 48-inch-wide doors and openings up to 14 feet high. It uses one 1 HP continuous-duty TEAO motor and operates on 460V, 60 Hz, three-phase power.
- Cabinet: Galvanized steel with a Titanium Silver powder coat finish.
- Air direction: Adjustable vanes with a 40-degree front-to-back sweep.
- Performance: 6,144 fpm maximum core velocity and 2,447 cfm air volume.
- Certifications: cETLus and AMCA Certified Ratings Seal.
Overall Dimensions:
48.0"W x 15.63"D x 14.0"HUnheated operation
The HV248-1UH-TS is an unheated air curtain.
48-inch door application
Specified for a 48-inch-wide door and equipped with a 48-inch overall length.
Single 1 HP motor
Uses one 1 HP continuous-duty Totally Enclosed Air Over motor with NEMA 1 construction.
460V three-phase power
Operates at 460V, 60 Hz, three-phase power.
Galvanized steel cabinet
The cabinet is galvanized steel with a Titanium Silver powder coat finish.
Adjustable airflow direction
Air directional vanes provide a 40-degree sweep from front to back.
Opening-height specification
The maximum opening height is listed as 14 feet.
AMCA-certified performance
The exact HV248 model is listed in the AMCA Certified Lab Data and is not identified among the unlicensed models.
Certifications & Compliance
Warranty & Protection
5-year parts warranty
