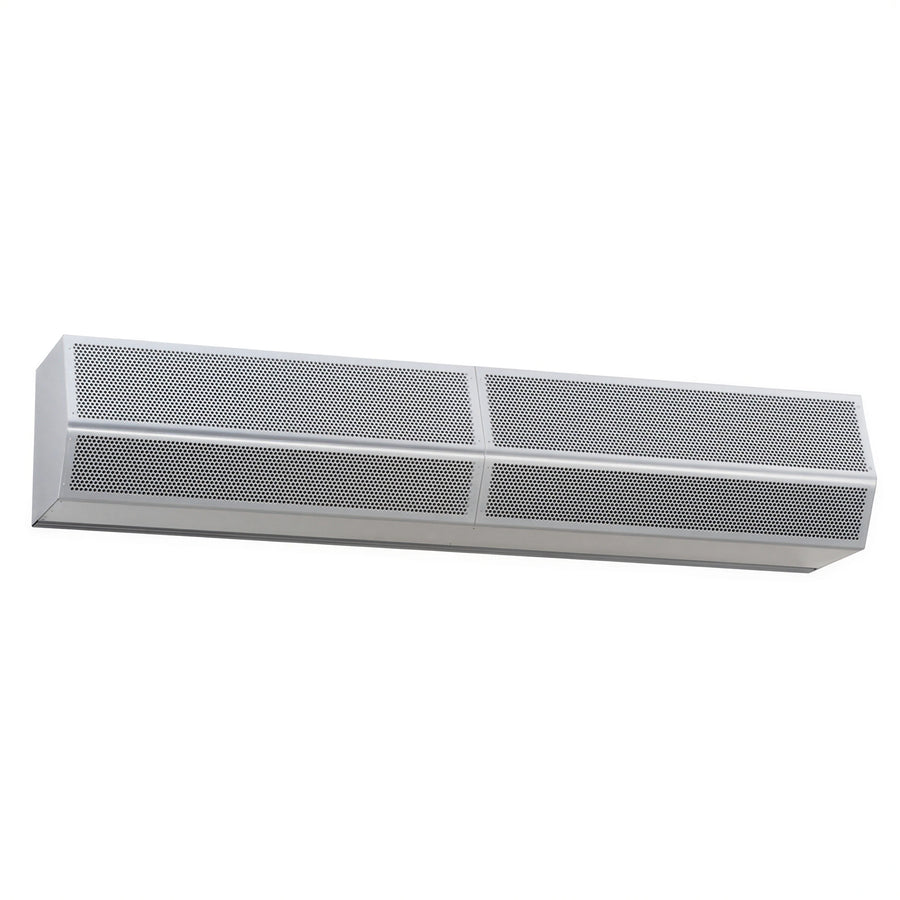

Mars Air Systems HV236-1UH-TS High-Velocity Air Curtain, 36" Door, Unheated, 1 HP Motor

SKU: HV236-1UH-TS
$1,473.30
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The Mars Air Systems HV236-1UH-TS is an unheated High Velocity 2 air curtain designed for a 36-inch door. It features a galvanized steel cabinet with a Titanium Silver powder coat finish, one 1 HP motor, and 460 V, 60 Hz, three-phase electrical service.

  • Adjustable air directional vanes provide a 40-degree front-to-back sweep.
  • Documented environmental separation is up to 14 feet, with insect control up to 12 feet.
  • The unit has a listed 5-year parts warranty and cETLus certification.

Overall Dimensions:

36.0"W x 15.63"D x 14.0"H

Product Weight:

150.0 lb

Unheated configuration

The HV236-1UH-TS is configured as an unheated air curtain.

Single 1 HP motor

Uses one continuous-duty Totally Enclosed Air Over motor with a NEMA 1 enclosure.

460 V three-phase power

Specified for 460 V, 60 Hz, three-phase electrical service.

Galvanized steel cabinet

The cabinet is galvanized steel with a Titanium Silver powder coat finish.

Adjustable air direction

Air directional vanes provide a 40-degree sweep from front to back.

AMCA-certified performance data

The HV236 model is listed with AMCA-certified lab data; the document states that AMCA ratings apply at free delivery.

Parts warranty

The product documentation lists a 5-year parts warranty.

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment
Product type Air curtain
Series High Velocity 2
Heating Unheated
Door width 36 in
Motor count 1
Motor horsepower 1 HP
Motor type Totally Enclosed Air Over (TEAO), continuous duty
Motor enclosure NEMA 1
Voltage 460 V
Frequency 60 Hz
Phase 3-phase
Full-load amperage 1.6 A at 460 V/3-phase
Cabinet material Galvanized steel
Finish Titanium Silver powder coat
Maximum opening height 14 ft
Air directional vane adjustment 40-degree sweep front to back
Sound level 70 dBA at 10 ft in a free field
Maximum core velocity 6000 fpm
Average velocity 2745 fpm
Air volume 2059 cfm
Velocity uniformity 90%
Power rating 1245 W

Warranty & Protection

5-year parts warranty.

Documents

PDF Cutsheet PDF Download PDF Hv2 unheated submittals PDF Download PDF Collateral PDF Download PDF Marketing sheet PDF Download

Frequently Asked Questions

No. It is an unheated air curtain.
It is designed for a 36-inch door.
The specified electrical service is 460 V, 60 Hz, three-phase.
It has one 1 HP continuous-duty TEAO motor.
The listed dimensions are 36 inches wide, 15.63 inches deep, and 14.0 inches high.
The product documentation lists a 5-year parts warranty.
The product is listed as cETLus certified and appears in the documentation's AMCA-certified lab data for the HV236 model.
