Key specifications
- Amps
- 3.3/3.2 Amps
- Phase
- 3-Phase
- Dimensions
- 36.0"W × 15.63"D × 14.0"H
- Type
- Air Curtain
- Style
- Unheated
- Installation Type
- Wall Mounted
Spec sheet

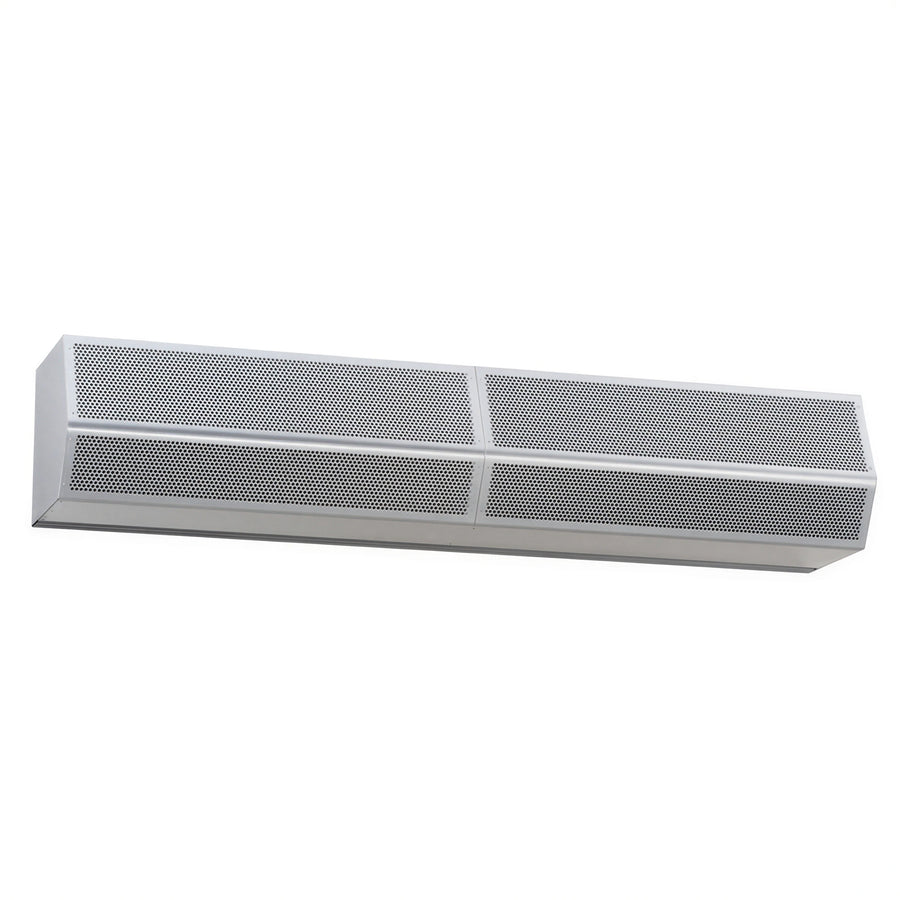

Mars Air Systems HV236-1UG-TS Unheated Air Curtain, 36 in W Door, 14 ft Max Opening, 1 HP Motor
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Mars Air Systems HV236-1UG-TS is an unheated air curtain for a 36 in door opening with a listed maximum opening height of 14 ft. It has a galvanized steel cabinet with a Titanium Silver powder coat finish and one 1 HP motor.
The unit operates on 208-230 Volts, 60 Hz, 3-Phase power and includes adjustable air directional vanes with a 40° sweep.
- Unheated design for environmental separation applications
- Wall fastening at both ends without intermediate support
- 5-year parts warranty
Overall Dimensions:
36.0"W x 15.63"D x 14.0"HProduct Weight:
27.0 lbUnheated Design
The unit is specified as unheated.
Door Opening Coverage
Sized for a 36 in door opening with a listed maximum opening height of 14 ft.
Motor
Uses one 1 HP continuous-duty TEAO motor.
Adjustable Air Direction
Adjustable air directional vanes provide a 40° front-to-back sweep.
Cabinet Construction
Galvanized steel cabinet with a Titanium Silver powder coat finish.
Electrical Configuration
Configured for 208-230 Volts, 60 Hz, 3-Phase service.
Wall Fastening
Can be fastened to the wall at both ends without intermediate support.
Warranty
Includes a 5-year parts warranty.
