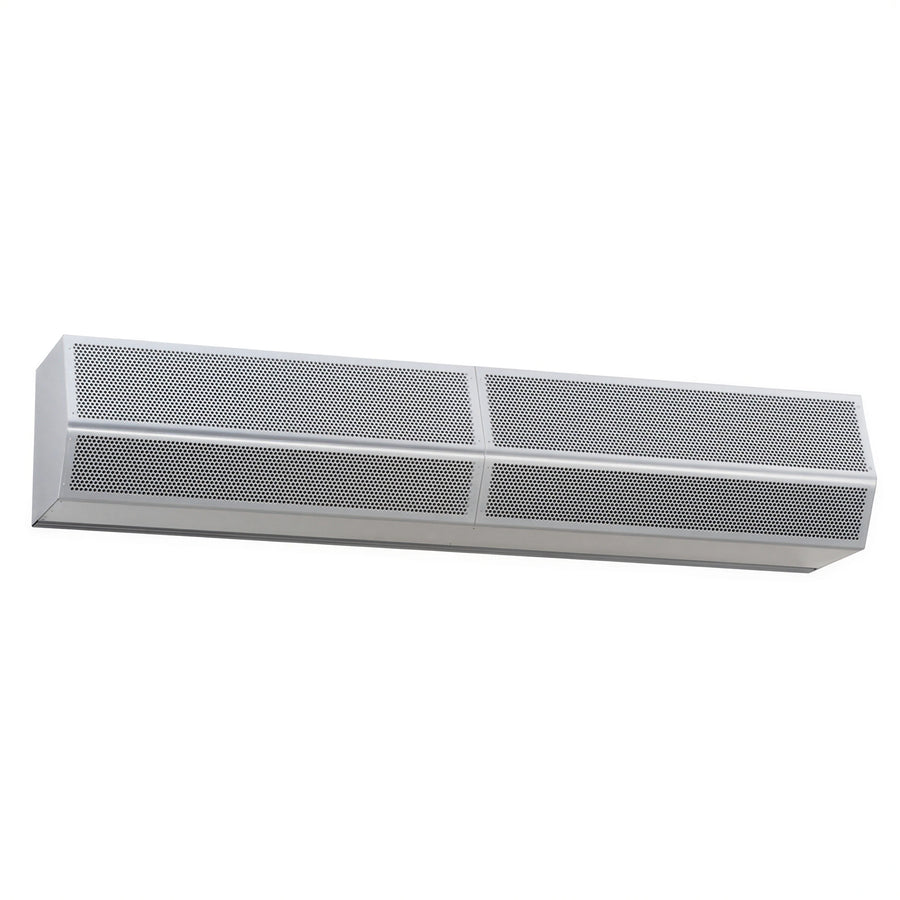

Mars Air Systems HV236-1UD-TS Unheated Air Curtain for 36" Door, 1 HP Motor, 14 ft Maximum Opening Height
HV236-1UD-TS is a Mars Air Systems High Velocity 2 unheated air curtain sized for a 36 in door opening and a maximum opening height of 14 ft. It uses one 1 HP motor and operates on 208–230 V, 60 Hz, single-phase power.
The unit has a galvanized steel cabinet with a Titanium Silver powder coat finish, adjustable air directional vanes with a 40° front-to-back sweep, and cETLus certification.
Overall Dimensions:
36.0"W x 15.63"D x 14.0"HProduct Weight:
150.0 lbUnheated operation
The model is specified as an unheated air curtain.
36 in opening width
Sized for a 36 in door opening.
Single 1 HP motor
Uses one 1 HP continuous-duty TEAO motor with a NEMA 1 designation.
Adjustable air direction
Air directional vanes provide a 40° front-to-back sweep.
Cabinet and finish
Galvanized steel cabinet with a Titanium Silver powder coat finish.
Electrical configuration
Operates at 208–230 V, 60 Hz, single phase.
Opening height
Specified for a maximum opening height of 14 ft.
Warranty
The product sheet lists a 5-year parts warranty.
Warranty & Protection
5-year parts warranty.
