Mars Air Systems HV2120-3UH-TS High-Velocity Air Curtain for 120" Door, Unheated, 3 Motors

SKU: HV2120-3UH-TS
$4,389.00
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

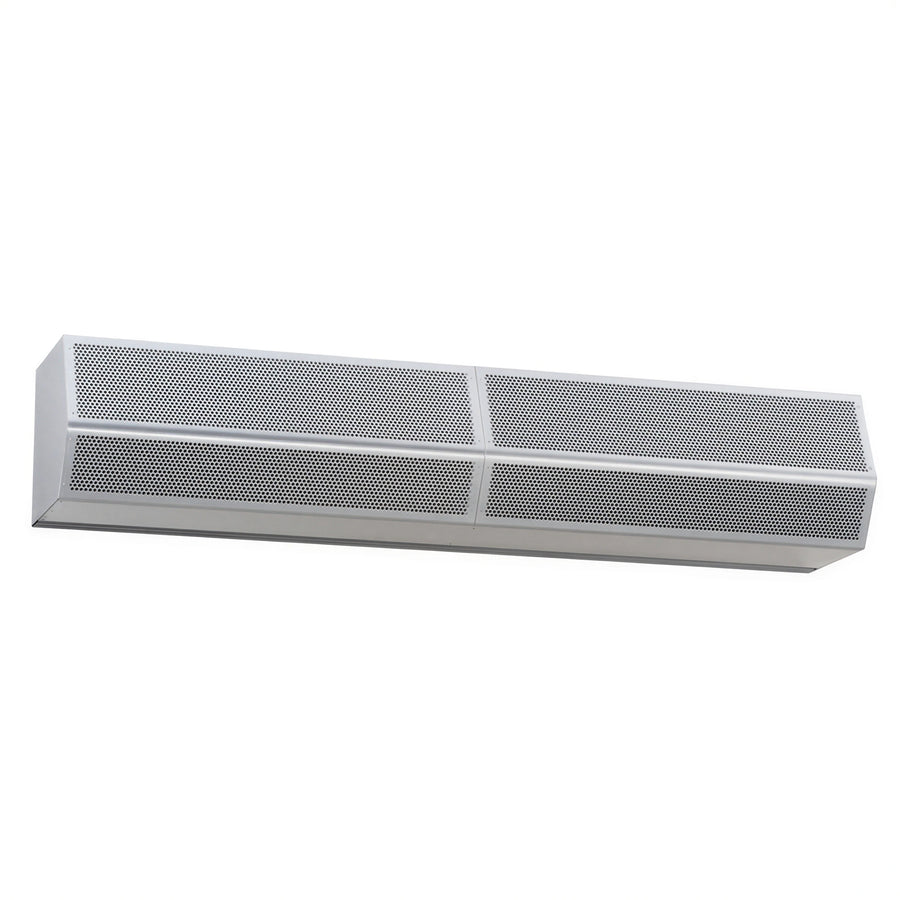

The Mars Air Systems HV2120-3UH-TS is a High Velocity 2 unheated air curtain for a 120-inch-wide door. It has a galvanized steel cabinet with a Titanium Silver powder coat finish, three 1 HP motors, and 460 V, 60 Hz, three-phase power.

  • Maximum opening height: 14 ft
  • Adjustable air directional vanes with a 40-degree front-to-back sweep
  • 5-year parts warranty

Overall Dimensions:

120.0"W x 15.63"D x 14.0"H

Unheated operation

This model is specified as an unheated air curtain.

Three 1 HP motors

The unit uses three 1 HP motors.

460 V three-phase power

Electrical specification is 460 V, 60 Hz, three-phase.

Galvanized steel cabinet

The cabinet is galvanized steel with a Titanium Silver powder coat finish.

Adjustable air direction

Air directional vanes provide a 40-degree front-to-back sweep.

120-inch door coverage

The model is specified for a 120-inch-wide door and a maximum opening height of 14 ft.

Series High Velocity 2
Type Unheated air curtain
Door width 120 in
Maximum opening height 14 ft
Motors 3
Horsepower per motor 1 HP
Voltage 460 V
Frequency 60 Hz
Phase 3-phase
Cabinet material Galvanized steel
Finish Titanium Silver powder coat
Nozzle length 120 in
Maximum core velocity 6,060 fpm
Average velocity at nozzle 2,678 fpm
Air volume 6,693 CFM
Velocity uniformity 93%
Power rating 3,615 W
Sound level 75 dBA
Adjustable vane sweep 40 degrees front to back

Certifications & Compliance

Warranty & Protection

5-year parts warranty

Documents

PDF Cutsheet PDF Download PDF Hv2 unheated submittals PDF Download PDF Marketing sheet PDF Download PDF Video PDF Download PDF Collateral refrigeration PDF Download PDF Collateral PDF Download

Frequently Asked Questions

No. It is specified as an unheated air curtain.
It is specified for a 120-inch-wide door.
The specification is 460 V, 60 Hz, three-phase power.
It has three 1 HP motors.
The listed dimensions are 120 in wide, 15.63 in deep, and 14 in high.
A 5-year parts warranty is listed.
