Mars Air Systems HV2108-3UD-TS Unheated Air Curtain for 108 in Door, 3 Motors, Galvanized Steel Cabinet

SKU: HV2108-3UD-TS
$3,742.20
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Air Doors Best Sellers Equipment Facility & Ventilation Equipment Facility Air Curtains Kitchen Ventilation & Climate Control Mars Air Systems New Arrivals Restaurant Equipment

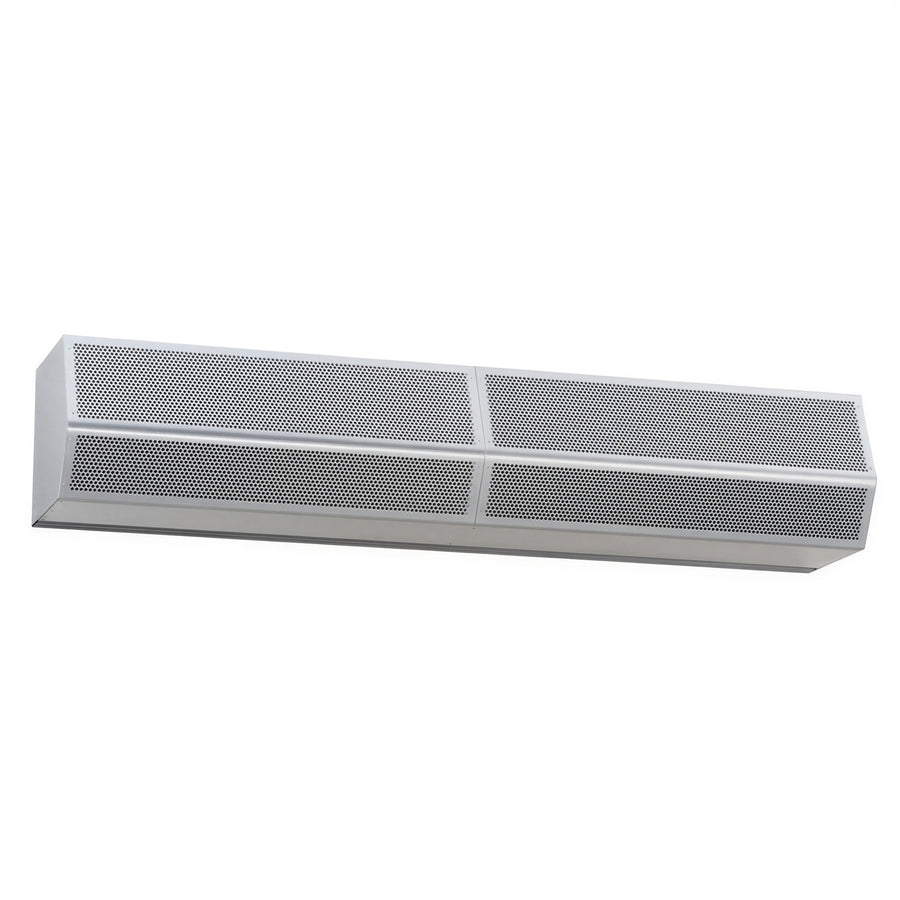

The Mars Air Systems HV2108-3UD-TS is an unheated High Velocity 2 air curtain specified for a 108-inch door. It features a galvanized steel cabinet with a Titanium Silver powder coat finish and three 1 HP motors.

  • 208-230 V, 60 Hz, single-phase electrical configuration
  • Continuous-duty TEAO motors in a NEMA 1 configuration
  • Adjustable air directional vanes with a 40-degree front-to-back sweep
  • cETLus certified

Overall Dimensions:

108.0"W x 15.63"D x 14.0"H

Unheated operation

The HV2108-3UD-TS is an unheated air curtain.

108-inch door coverage

The unit is specified for a 108-inch-wide door.

Three 1 HP motors

Includes three continuous-duty Totally Enclosed Air Over motors in a NEMA 1 configuration.

Galvanized steel cabinet

The cabinet has a Titanium Silver powder coat finish.

Adjustable air direction

Adjustable vanes provide a 40-degree sweep from front to back.

Single-phase electrical configuration

Rated for 208-230 V, 60 Hz, single-phase operation.

cETLus certification

The product is identified as cETLus certified.

Series High Velocity 2
Type Unheated
Door width 108 in
Maximum opening height 14 ft
Motors 3 motors
Horsepower per motor 1 hp
Motor type Continuous-duty TEAO, NEMA 1
Voltage 208-230 V
Frequency 60 Hz
Phase Single-phase
Full-load amp at rated voltage 15.0 A at 208-230 V, single-phase
Cabinet material Galvanized steel
Finish Titanium Silver powder coat
Maximum core velocity at nozzle 6,000 fpm
Average velocity 2,745 fpm
Air volume 6,177 cfm
Velocity uniformity 90%
Sound level 75 dBA at 10 ft in a free field

Certifications & Compliance

Warranty & Protection

5-year parts warranty.

Documents

PDF Cutsheet PDF Download PDF Hv2 unheated submittals PDF Download PDF Collateral refrigeration PDF Download PDF Marketing sheet PDF Download PDF Collateral PDF Download PDF Video PDF Download

Frequently Asked Questions

No. The HV2108-3UD-TS is an unheated air curtain.
It is specified for a 108-inch-wide door.
It is rated for 208-230 V, 60 Hz, single-phase operation.
It has three continuous-duty 1 HP TEAO motors in a NEMA 1 configuration.
The unit measures 108 in wide, 15.63 in deep, and 14 in high.
The product has a 5-year parts warranty.
