Marco MARCO SYPP 4 SYPP Beverage and Concentrate Dispense System, 14.6"W x 10.1"D x 24.4"H dispenser dimensions, 12.9"W x
- Product type
- Beverage and concentrate dispense system
- Order code
- 5000915
- Dilution range
- 1:1 to 30:1
- Included concentrate channels
- 4 concentrates
- Tap-to-tray clearance
- 9.4 in
- Water connection
- 3/8-inch push-fit on cold water line
Specifications
Description

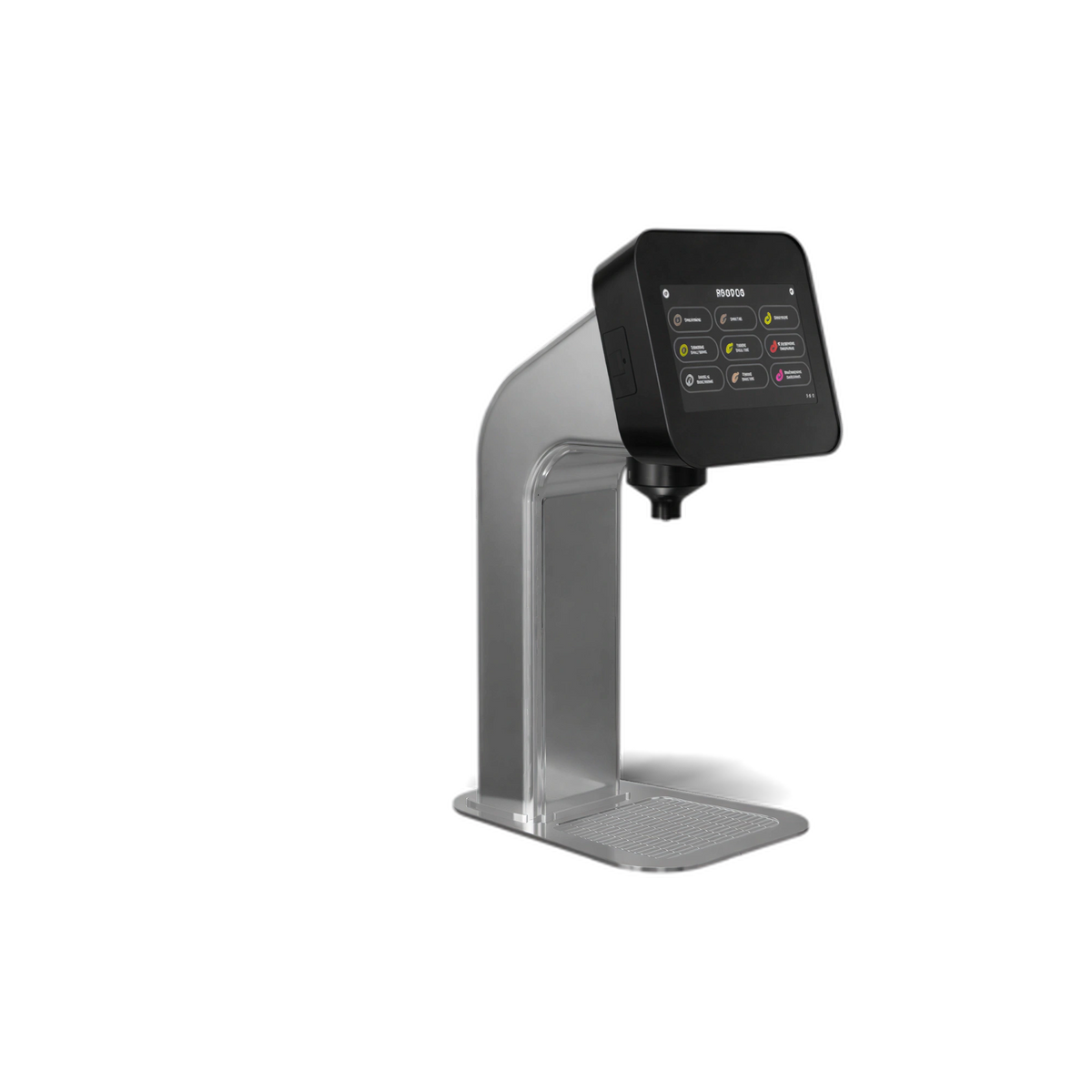

The MARCO SYPP 4 is a beverage and concentrate dispense system that automates the dilution of syrup and liquid concentrate for preset beverage recipes and volumes.
- Programmable touchscreen: Manage recipes and dispensing from the touch screen.
- Flexible dilution: Dilutes from 1:1 to 30:1.
- Four-concentrate pump box: Includes one under-counter SYPP Pump box to manage the dispense of four concentrates.
- Countertop format: The dispenser provides 9.4-inch tap-to-tray clearance.
- Utilities: Uses a 3/8-inch push-fit connection on the cold-water line and is rated at 150 W, 120–230 V, 50–60 Hz, with a NEMA 5-15P plug.
Overall Dimensions:
14.6"W x 10.1"D x 24.4"HProduct Weight:
82.6 lbProgrammable touchscreen
The touch screen supports recipe management and dispensing.
Automated dilution
Dilutes syrup and liquid concentrate for preset beverage recipes and volumes.
1:1 to 30:1 dilution range
Supports dilution ratios from 1:1 through 30:1.
Four-concentrate pump box
The included under-counter SYPP Pump box manages the dispense of four concentrates.
Tap-to-tray clearance
The dispenser provides 9.4 inches of tap-to-tray clearance.
Cold-water connection
Uses a 3/8-inch push-fit connection on the cold-water line.
Electrical rating
Rated at 150 W and 120–230 V at 50–60 Hz with a NEMA 5-15P plug.
