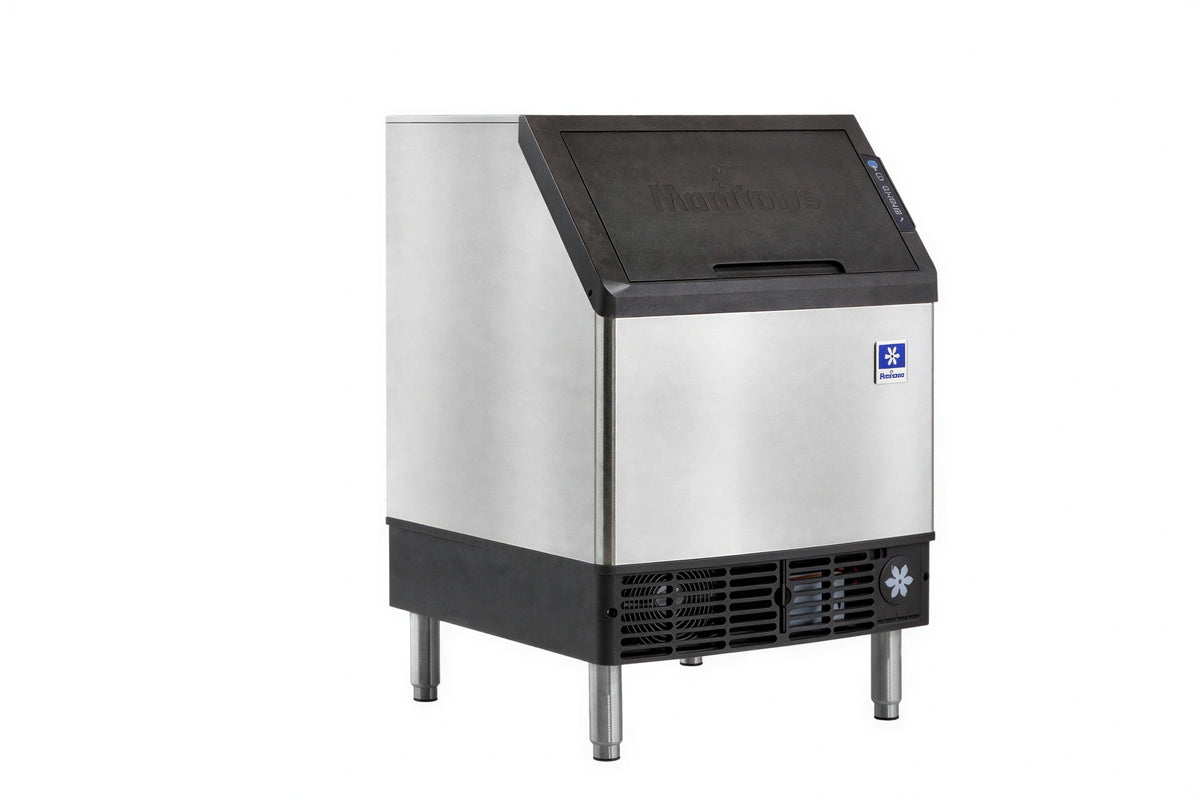

Manitowoc NEO UYP0240W Undercounter Half-Dice Ice Maker with 90 lb Bin, Water-Cooled, Stainless Steel
- Total amperage
- 6.0 A, water-cooled
- Dimensions
- 26.0"W × 28.5"D × 38.5"H
- Condenser type
- Water-cooled
- Refrigerant
- R290
- Ice shape
- Half-dice, 3/8 in x 1 1/8 in x 7/8 in (0.95 x 2.86 x 2.22 cm)
- Ice production at 70°F air / 50°F water
- Up to 235 lb (107 kg) per 24 hours
Specifications
Description
The Manitowoc NEO UYP0240W is a self-contained, water-cooled undercounter ice maker that produces half-dice ice and stores up to 90 lb.
- Produces up to 235 lb of ice per 24 hours at 70°F air and 50°F water.
- AHRI-certified production is 214 lb per 24 hours at 90°F air and 70°F water.
- Integrated 5-micron onboard water filtration, touchpad controls, and status indicators support daily operation.
- The forward-sliding storage bin provides access to refrigeration components for cleaning and maintenance.
Overall Dimensions:
26.0"W x 28.5"D x 38.5"HProduct Weight:
165.0 lbHalf-dice ice production
Produces half-dice ice measuring 3/8 in x 1 1/8 in x 7/8 in.
Water-cooled design
A self-contained water-cooled condenser supports the ice-making system.
Integrated water filtration
Includes an integrated 5-micron onboard water filter.
Touchpad controls
Controls include on/off, delay, clean, filter replacement, full-bin, and service indicators.
Production delay
Provides 8-hour and 16-hour production-delay settings.
Forward-sliding bin
The removable storage bin slides forward to provide access to refrigeration components for cleaning and maintenance.
Front ventilation
Front ventilation supports undercounter installation.
Adjustable legs
Includes 6 in adjustable stainless steel legs.
