Key specifications
- Ice shape
- Half-dice
- Condenser type
- Air-cooled
- Refrigerant
- R290
- Ice production at 70°F air / 50°F water
- Up to 200 lb per 24 hours (91 kg)
- AHRI-certified ice production at 90°F air / 70°F water
- 180 lb per 24 hours (82 kg)
- Storage capacity
- 90 lb (40 kg)

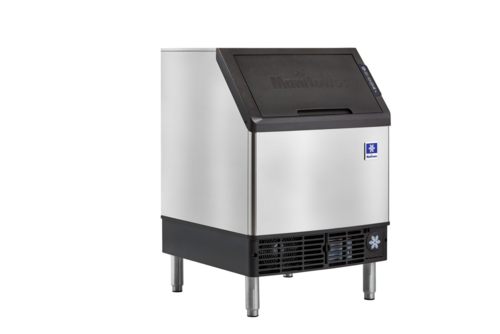

Manitowoc NEO UYP0190A Half-Dice Air-Cooled Undercounter Ice Machine with 90 lb Storage Bin
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
Manitowoc NEO UYP0190A is a self-contained, air-cooled undercounter ice machine that produces half-dice ice and stores up to 90 lb.
- Produces up to 200 lb of ice per 24 hours at 70°F air and 50°F water; AHRI-certified production is 180 lb per 24 hours at 90°F air and 70°F water.
- Features an integrated 5 micron onboard water filter, front ventilation, touchpad controls, and a forward-sliding storage bin.
- Measures 26 in W x 28.5 in D x 38.5 in H on 6 in adjustable stainless steel legs.
Overall Dimensions:
26.0"W x 28.5"D x 38.5"HProduct Weight:
157.0 lbHalf-dice ice
Produces half-dice ice measuring 3/8 in x 1/8 in x 7/8 in.
Air-cooled self-contained design
Uses an air-cooled condenser in a self-contained undercounter configuration.
Onboard water filtration
Includes an integrated 5 micron onboard water filter.
Touchpad controls
Touchpad includes on/off, production delay, clean, filter replacement, full bin, and service indicators.
Production delay
Provides 8-hour and 16-hour production delay settings.
Forward-sliding storage bin
The storage bin slides forward to provide access to refrigeration components.
Front ventilation
Front ventilation supports undercounter installation or placement next to other equipment.
Adjustable stainless steel legs
Includes 6 in adjustable stainless steel legs.
Documentation
Certifications & Compliance
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
