Manitowoc

Manitowoc CrystalCraft Square Cube Air-Cooled Self-Contained Ice Maker, 100 lb/Day

SKU: USP0100A
$3,186.43
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Ice Makers Ice Machines Ice Makers & Bins Manitowoc New Arrivals Restaurant Equipment

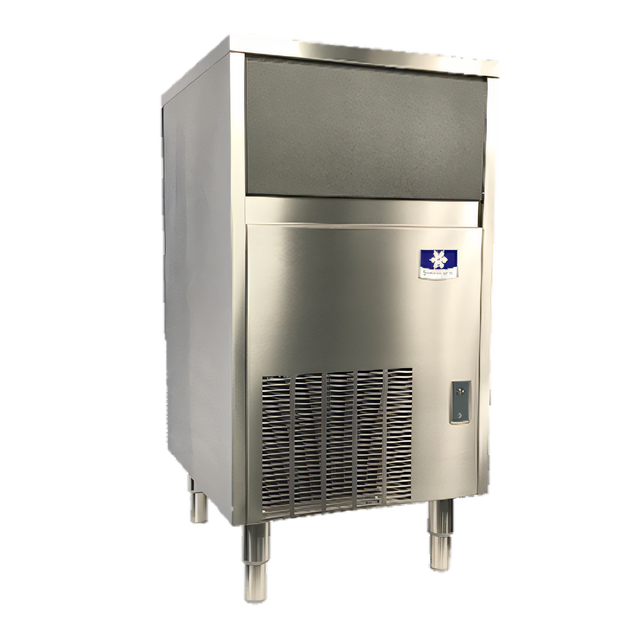

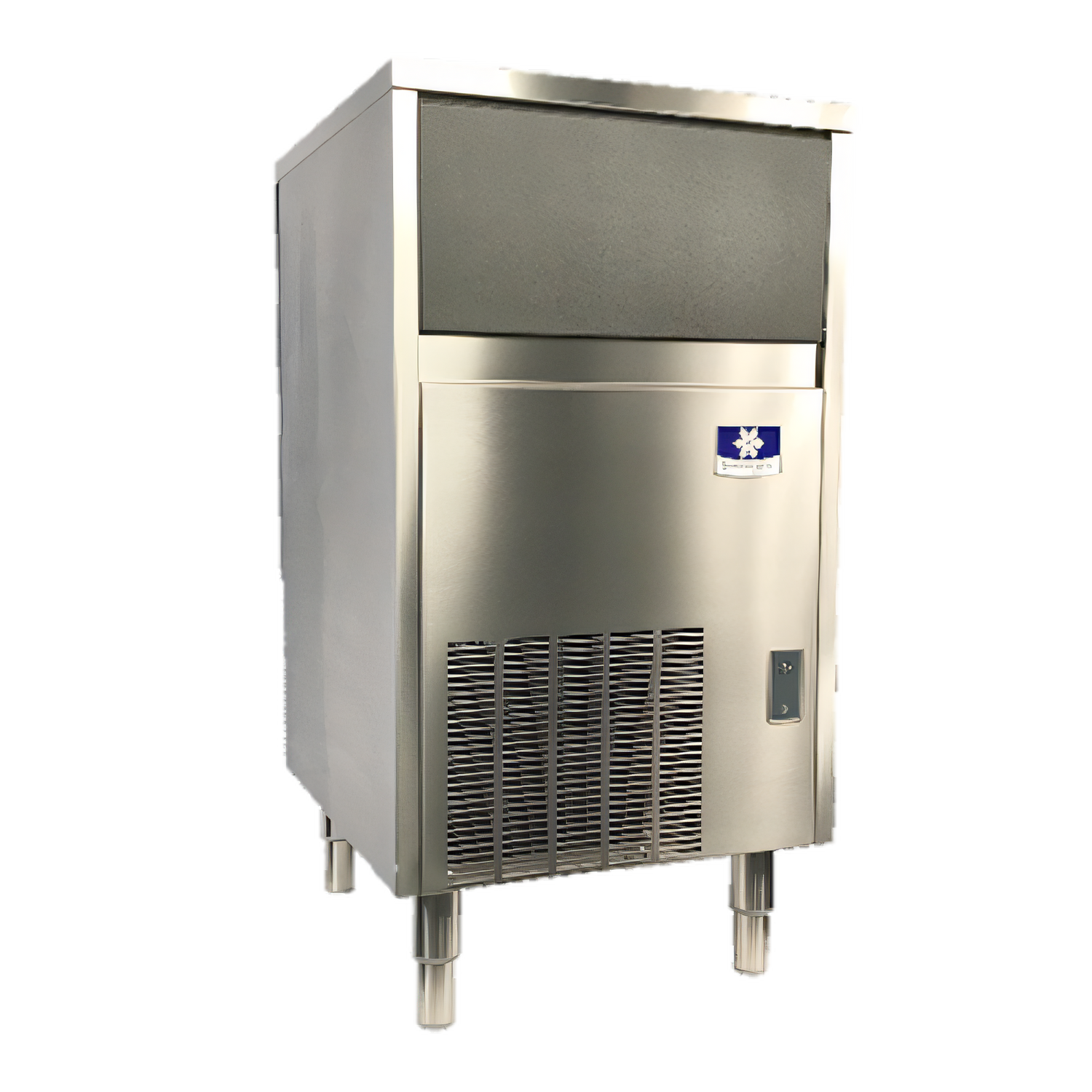

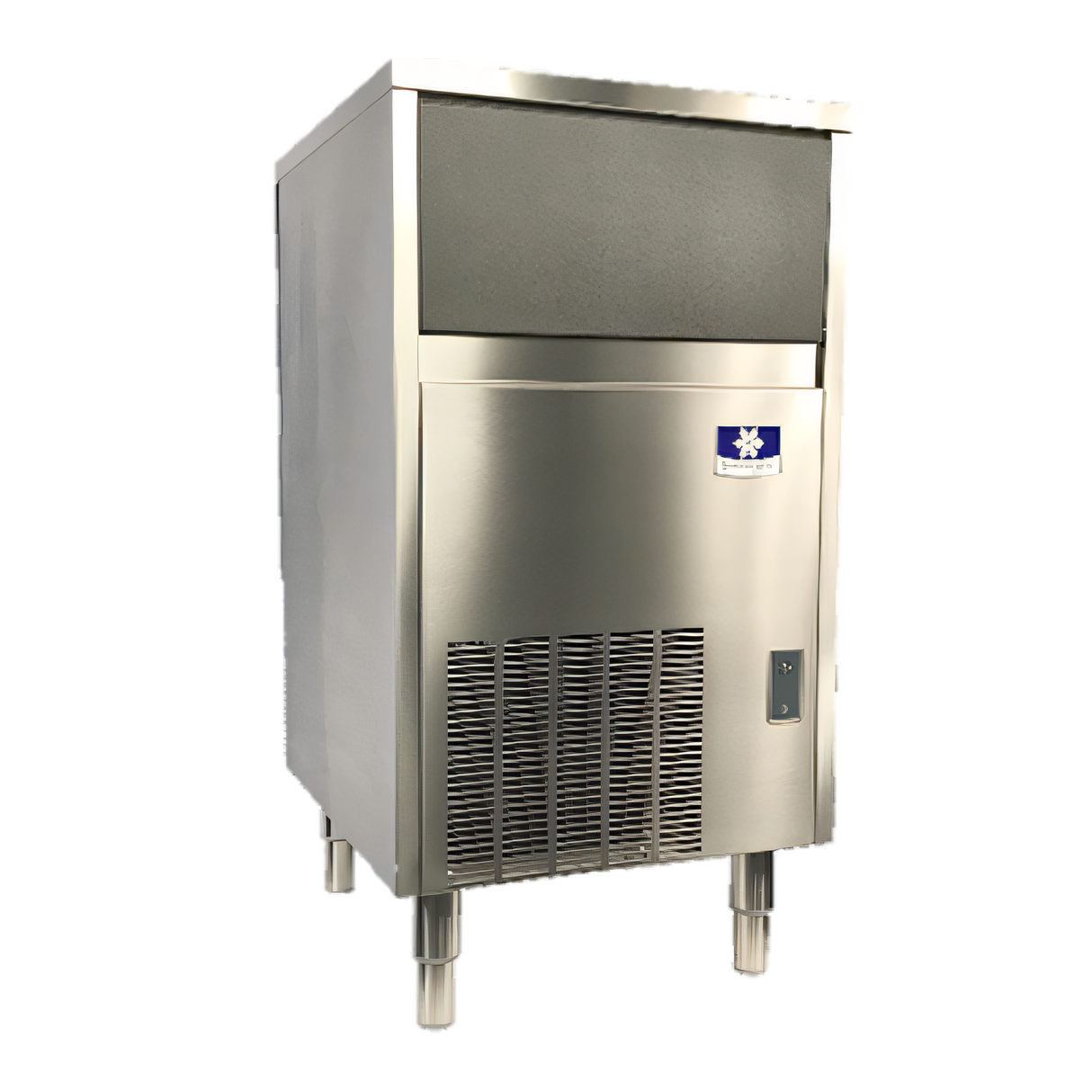

Manitowoc CrystalCraft Square Cube Air-Cooled Self-Contained Ice Maker, 100 lb/Day

Stainless Steel Cabinet, 115V, 1-Phase, 38 lb Storage

Compact and dependable, this air-cooled square cube ice maker delivers clear 1-inch cubes with self-contained refrigeration and a corrosion-resistant stainless steel cabinet.

  • Produces up to 100 lb of square cube ice per 24 hours.
  • Makes crystal clear 1 inch x 1 inch cubes for beverage presentation.
  • Built-in storage holds 38 lb of ice.
  • Air-cooled, self-contained design simplifies installation.
  • Stainless steel cabinet resists corrosion in demanding commercial environments.
  • 115V, 60 Hz, 1-phase electrical setup with a NEMA 5-15P plug.
  • Includes standard bin legs, adjustable legs, and an ice scoop.

Overall Dimensions:

19.68"W x 22.83"D x 37.5"H

Product Weight:

209.0 lb

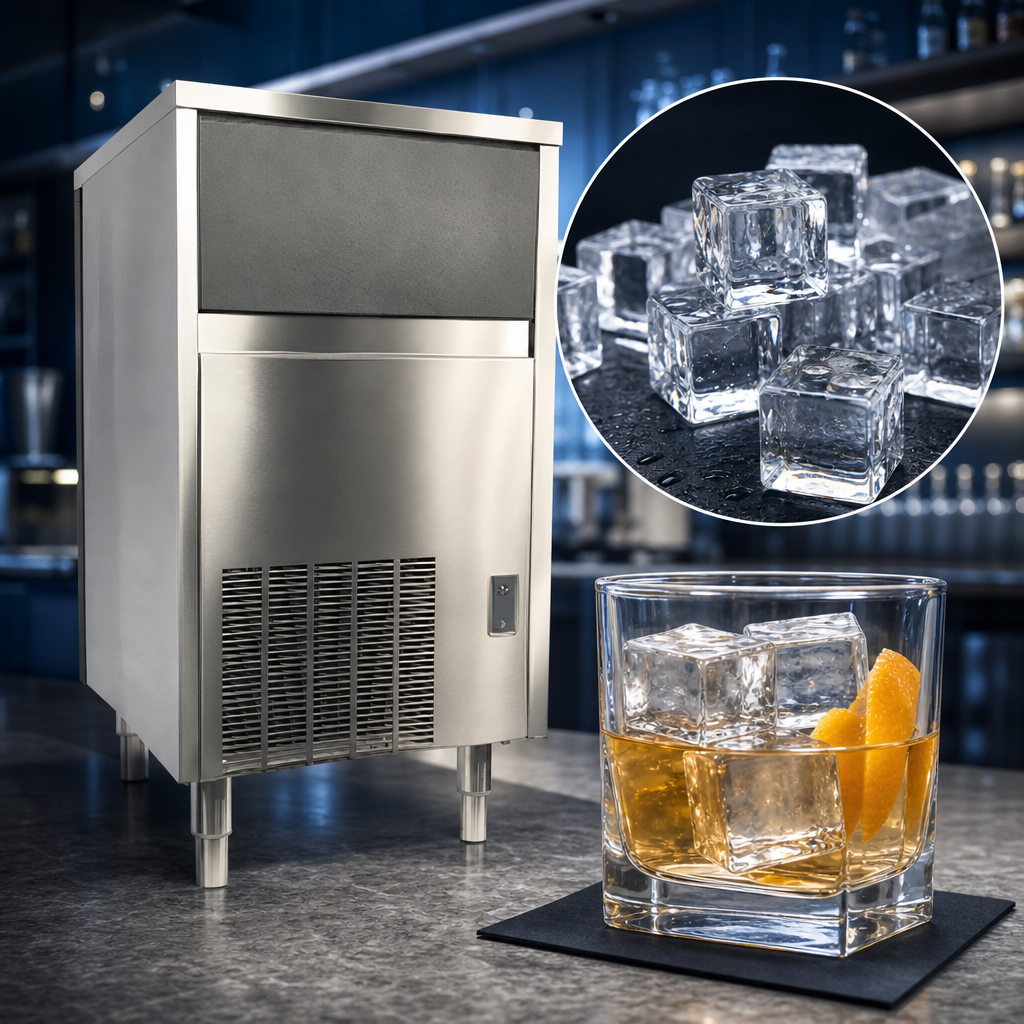

Square Cube Ice Production

Produces crystal clear 1 inch x 1 inch square cubes that help improve presentation in drinks.

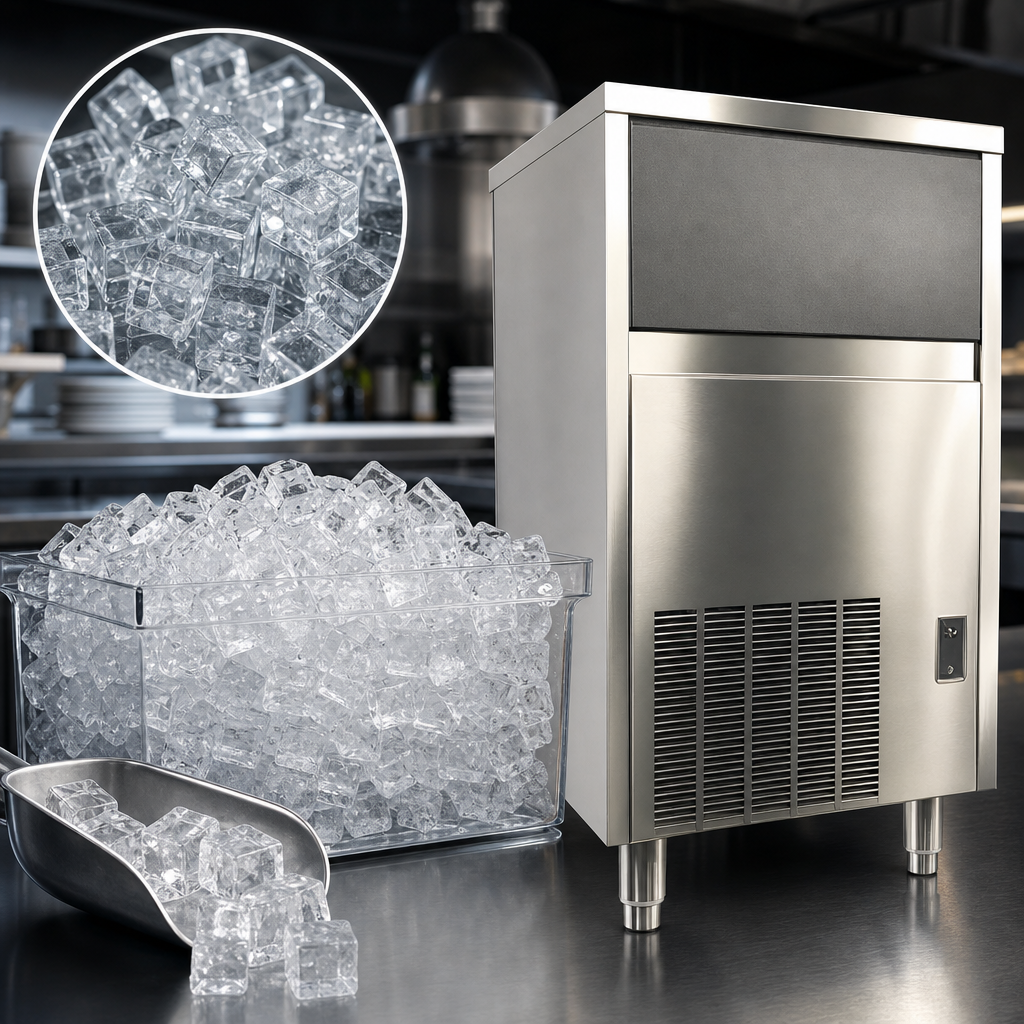

Daily Output

Generates up to 100 lb of ice per day under 70°F air and 50°F water conditions.

Storage Capacity

Built-in storage capacity holds 38 lb of ice.

Air-Cooled Self-Contained System

Uses a self-contained refrigeration system with air intake in front and exhaust in back; no side vents.

Stainless Steel Cabinet

Heavy-duty stainless steel cabinet helps resist corrosion and supports long-term durability.

Electrical Connection

Factory pre-wired for 115V, 60 Hz, single-phase service with a 6-foot power cord and NEMA 5-15P plug.

Standard Equipment

Includes an ice scoop, 6-inch bin legs, and adjustable standard legs from 4-1/2 inches to 6 inches.

R290 Refrigerant

Uses R290 refrigerant and a 1/3 HP compressor.

Type Ice Maker
Style Square Cube
Condenser Type Air-Cooled
Refrigeration Type Self-Contained
Ice Production Capacity 100 lb per 24 Hours
Storage Capacity 38 lb
Horsepower 1/3 HP
Refrigerant Type R290
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 10 Amps
Plug Type NEMA 5-15P
Cord Length 6 Feet
Material Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 20 Inches
Shipping Depth 23 Inches
Shipping Height 38 Inches
Shipping Weight 209 lb.

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

3 years parts and labor

Documents

PDF Cutsheet PDF Download PDF Quick reference guide PDF Download PDF Full line brochure PDF Download PDF Quick reference guide - english PDF Download PDF Ice type brochure PDF Download PDF Sell sheet PDF Download PDF Quick reference guide - spanish PDF Download PDF Cleaner product guide PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces up to 100 lb of ice per 24 hours under 70°F air and 50°F water conditions.
It makes crystal clear square cubes measuring 1 inch by 1 inch.
The unit is wired for 115V, 60 Hz, single-phase power and includes a 6-foot cord with a NEMA 5-15P plug.
The built-in storage capacity is 38 lb.
Minimum installation clearance is 2 inches on the sides, 8 inches at the back, and 2 inches at the top.
The cutsheet lists a 3-year parts and labor warranty.
