Key specifications
- Total Amperage
- 5.0 amps
- Dimensions
- 26.0"W × 28.5"D × 38.5"H
- Ice Shape
- Regular-dice
- Cube Dimensions
- 1 1/8 in. x 1 1/8 in. x 7/8 in. (2.86 x 2.86 x 2.22 cm)
- Refrigerant
- R290
- Condenser Type
- Air-cooled
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description

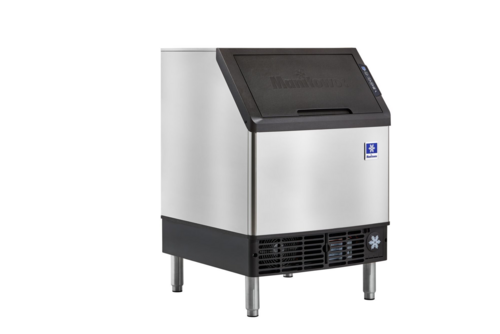

The Manitowoc NEO URP0140A is a self-contained, air-cooled undercounter ice maker producing regular-dice ice. It makes up to 130 lb of ice per 24 hours at 70°F air and 50°F water, with an AHRI-certified production rate of 107 lb at 90°F air and 70°F water.
- Integrated storage: The built-in bin stores up to 90 lb of ice.
- On-board filtration: Integrated 5 micron water filtration supports ice machine operation.
- Operator controls: Touchpad controls include on/off, 8- and 16-hour production delay, clean, filter replacement, full-bin, and service indicators.
- Service access: The forward-sliding storage bin provides access to refrigeration components for cleaning and maintenance.
- Installation: Front ventilation and 6-inch adjustable stainless steel legs support undercounter installation.
Overall Dimensions:
26.0"W x 28.5"D x 38.5"HProduct Weight:
160.0 lbRegular-dice ice
Produces regular-dice ice measuring 1 1/8 in. x 1 1/8 in. x 7/8 in.
Air-cooled, self-contained design
Combines the ice maker and storage bin in one air-cooled undercounter unit.
Integrated water filtration
Includes a 5 micron on-board water filter.
Touchpad controls
Provides on/off, 8- and 16-hour production delay, clean, filter replacement, full-bin, and service indicators.
Forward-sliding storage bin
Provides access to refrigeration components for cleaning and maintenance.
Front ventilation
Front air intake and exhaust support undercounter installation.
Adjustable stainless steel legs
Includes 6 in. adjustable stainless steel legs.
Standard ice scoop
A standard plastic NEO ice scoop is included.
Documentation
Certifications & Compliance
Frequently Asked Questions
This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.
The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
- Count every piece against the delivery receipt.
- Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
- Photograph the freight on the truck before it’s moved.
- If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.
Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.
Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.
If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
Need help deciding?
Our specialist can help you confirm dimensions, building requirements, and other important details before you buy. We usually reply within 1 hour.
