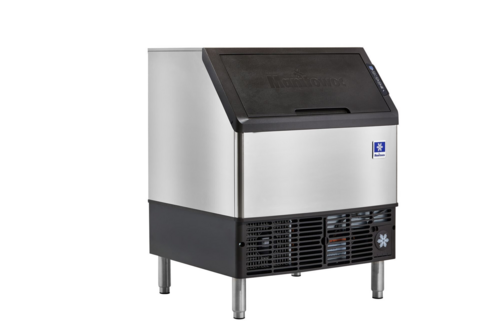

Manitowoc NEO UDP0310W 30-Inch Undercounter Water-Cooled Dice Ice Machine With Bin, 300 lb/Day, 119 lb Storage
- Condenser Type
- Water-cooled
- Refrigerant
- R290
- Ice Shape
- Dice
- Cube Dimensions
- 7/8 in x 7/8 in x 7/8 in
- Daily Ice Production
- Up to 300 lb/24 hours at 70°F air and 50°F water; 280 lb/24 hours at 90°F air and 70°F water
- Ice Storage Capacity
- 119 lb
Specifications
Description
The Manitowoc NEO UDP0310W is a self-contained, water-cooled undercounter ice machine that produces dice ice and stores up to 119 lb. It uses R290 refrigerant and includes an integrated 5-micron onboard water filter.
Production is up to 300 lb per 24 hours at 70°F air and 50°F water, or 280 lb per 24 hours at 90°F air and 70°F water under AHRI-certified conditions. The machine includes touchpad controls, front ventilation, a forward-sliding storage bin, and adjustable stainless steel legs.
- Dice cubes measure 7/8 in x 7/8 in x 7/8 in.
- Touchpad functions include production delay, cleaning, filter replacement, full-bin, and service indicators.
- Product dimensions are 30 in W x 28.5 in D x 38.5 in H.
Overall Dimensions:
30.0"W x 28.5"D x 38.5"HProduct Weight:
220.0 lbWater-cooled self-contained system
Uses a self-contained water-cooled refrigeration system with R290 refrigerant.
Dice ice production
Produces 7/8 in x 7/8 in x 7/8 in dice ice, with production up to 300 lb per 24 hours at 70°F air and 50°F water.
Integrated ice storage
Stores up to 119 lb of ice in the included storage bin.
Onboard water filtration
Includes an integrated 5-micron onboard water filter.
Touchpad controls
Provides production delay, clean, filter replacement, full-bin, and service indicators.
Forward-sliding storage bin
The removable bin slides forward to provide access to refrigeration components for cleaning and maintenance.
Front ventilation
Front ventilation supports installation under countertops or next to other equipment.
Adjustable stainless steel legs
Includes 6-inch adjustable stainless steel legs.
