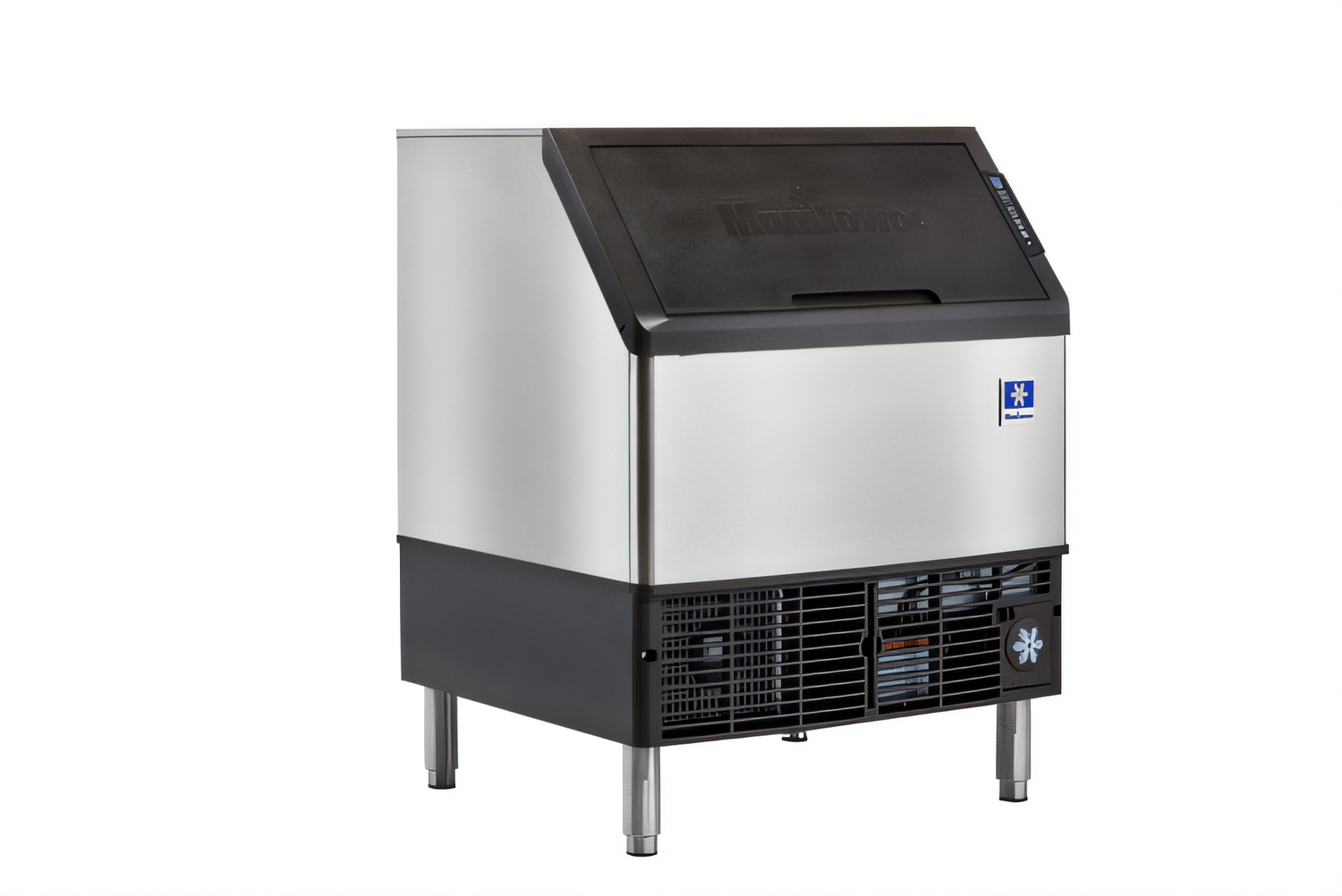

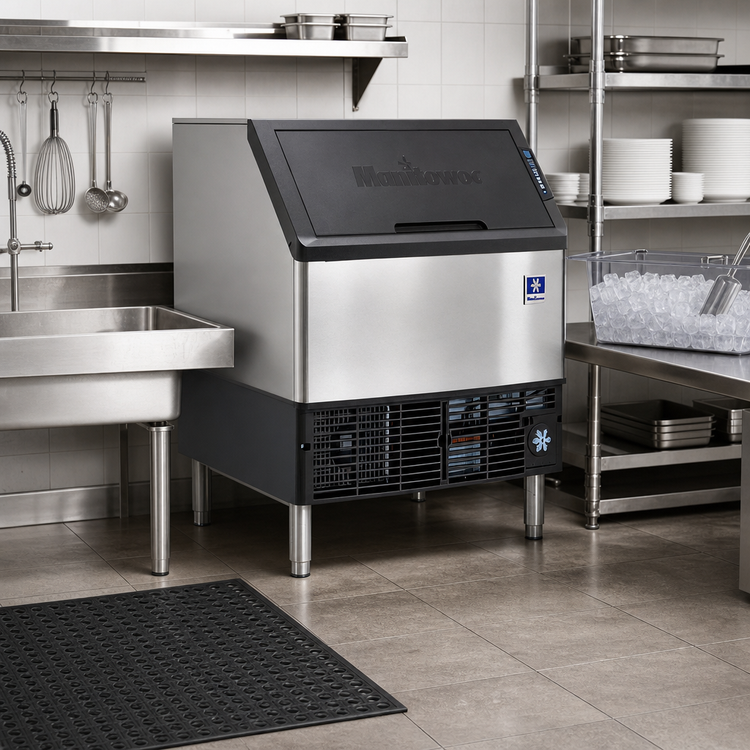

Manitowoc NEO UDP0310A Undercounter Full-Size Dice Ice Machine with 119 lb Bin

Air-Cooled, Self-Contained, R290, 315 lb/Day

A compact undercounter ice machine that combines full-size dice ice production, built-in storage, and integrated filtration in a self-contained air-cooled design.

  • Produces full-size dice ice in a compact undercounter footprint.
  • Delivers up to 315 lb of ice per 24 hours at 70°F air / 50°F water, with AHRI-certified output of 263 lb/day at 90°F air / 70°F water.
  • Integrated 119 lb storage bin keeps ice ready at the point of use.
  • Built-in 5-micron onboard water filtration helps improve ice clarity and machine performance.
  • Touchpad controls and status indicators simplify daily operation and service.
  • Front ventilation and a forward-sliding bin support easier installation, cleaning, and maintenance.

Overall Dimensions:

30.0"W x 28.5"D x 38.5"H

Product Weight:

208.0 lb

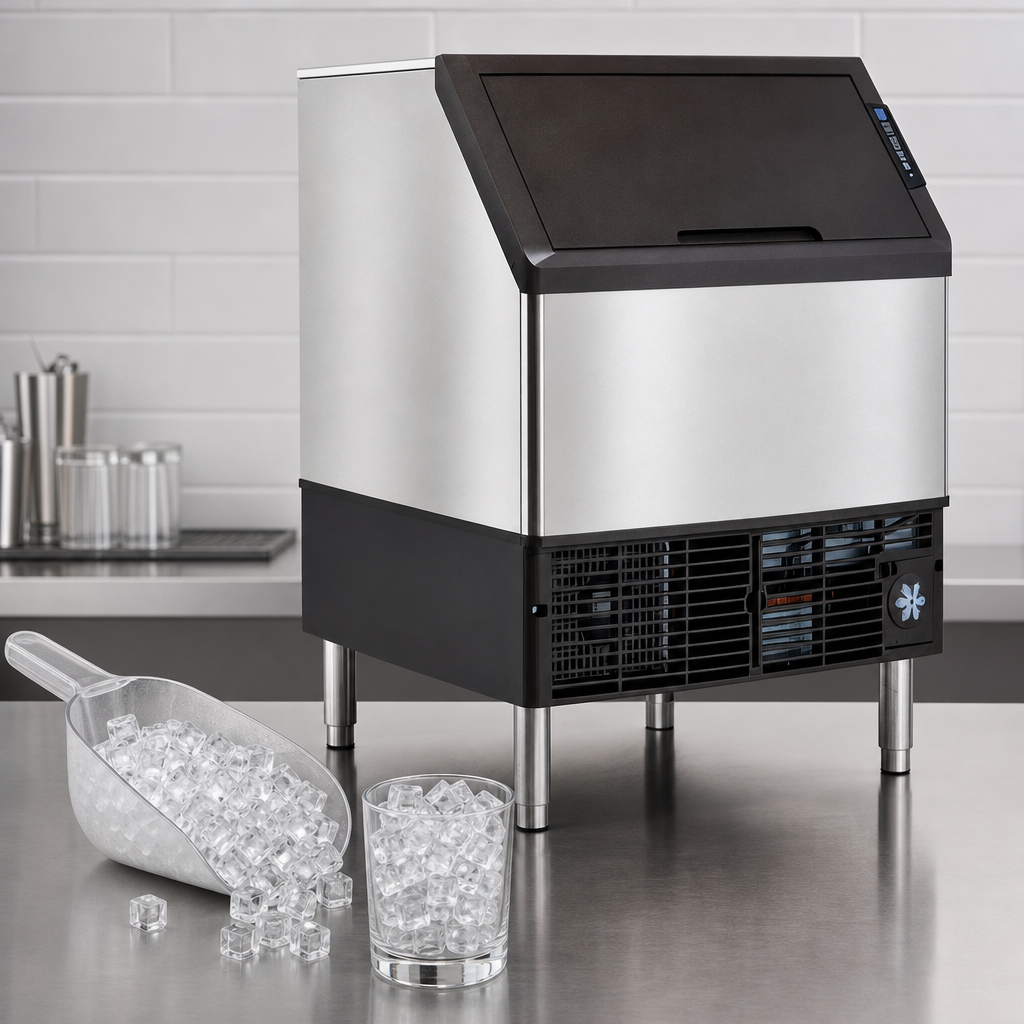

Full-Size Dice Ice

Makes dice cubes measuring 7/8" x 7/8" x 7/8".

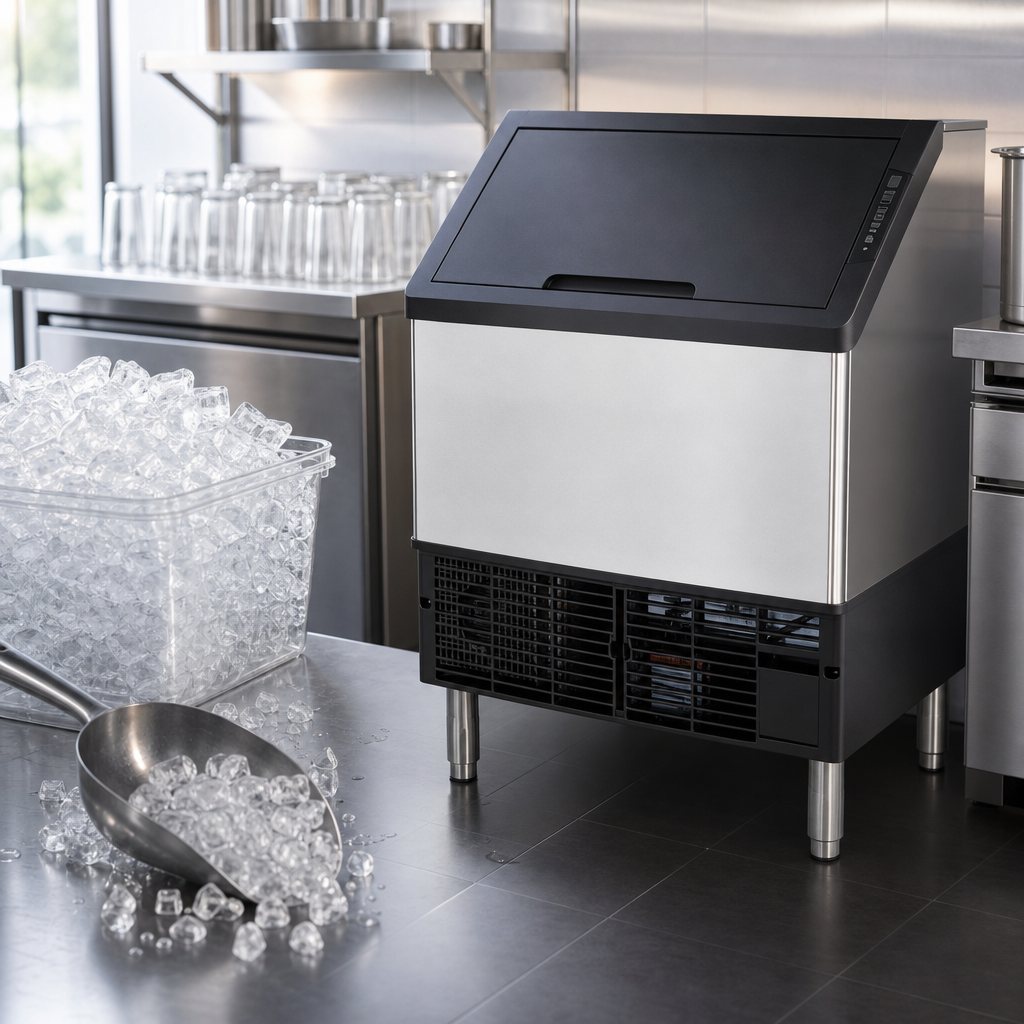

High Daily Output

Produces up to 315 lb per 24 hours at 70°F air / 50°F water; AHRI certified at 263 lb per 24 hours at 90°F air / 70°F water.

Integrated Storage Bin

Built-in bin holds up to 119 lb of ice.

R290 Refrigerant

Uses R290 refrigerant in a self-contained refrigeration system.

On-Board Water Filtration

Integrated 5-micron filter helps improve ice quality and machine performance.

Touchpad Controls

Controls include on/off, delay, clean, filter change, full bin, and service indicators.

Forward-Sliding Bin

Removable storage bin slides forward for easier access to refrigeration components during cleaning and service.

Front Ventilation

Front air flow supports undercounter installation or placement next to other equipment.

Adjustable Stainless Steel Legs

6-inch adjustable legs help with leveling and installation.

Standard Ice Scoop Included

Standard plastic NEO ice scoop is included.

Type Ice Machine with Bin
Style Full-Size Dice
Installation Type Undercounter
Condenser Type Air-Cooled
Refrigeration Type Self-Contained
Refrigerant Type R290
Capacity 119 lbs
Production Capacity 315 lbs per 24 Hours at 70°F Air / 50°F Water
AHRI Certified Production Capacity 263 lbs per 24 Hours at 90°F Air / 70°F Water
BTU 5,500 BTU/Hour Average
Voltage 115 Volts
Amps 8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 8 Feet
Material Stainless Steel
Finish Stainless Steel
Water Connection Required
Drain Connection Required
Water Inlet Size 3/8 Inch F.P.T.
Drain Connection Size 1/2 Inch F.P.T.
Shipping Width 30 Inches
Shipping Depth 29 Inches
Shipping Height 39 Inches
Shipping Weight 179 lb
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Limited commercial warranty

Documents

PDF Cutsheet PDF Download PDF Quick reference guide PDF Download PDF Cleaner product guide PDF Download PDF Quick reference guide - spanish PDF Download PDF Brochure PDF Download PDF Owner's manual PDF Download PDF Quick reference guide - english PDF Download PDF Full line brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It makes full-size dice ice measuring 7/8" x 7/8" x 7/8".
It produces up to 315 lb per 24 hours at 70°F air / 50°F water, and it is AHRI certified at 263 lb per 24 hours at 90°F air / 70°F water.
The built-in storage bin holds 119 lb of ice.
Yes. It includes integrated 5-micron onboard water filtration.
Standard power is 115/60/1 at 8 amps with an 8 ft cord and NEMA 5-15P plug. 208-230/60/1 and 230/50/1 options are also available.
Recommended clearance is 5" on the top, sides, and back, but no minimum clearance is required.
