Key specifications
- Dimensions
- 26.0"W × 28.5"D × 38.5"H
- Ice shape
- Dice
- Cube size
- 7/8" x 7/8" x 7/8" (2.22 x 2.22 x 2.22 cm)
- Daily ice production
- Up to 200 lb/24 hours (91 kg/24 hours) at 70°F air and 50°F water
- AHRI-certified production
- 175 lb/24 hours (79 kg/24 hours) at 90°F air and 70°F water
- Storage capacity
- 90 lb (40 kg)

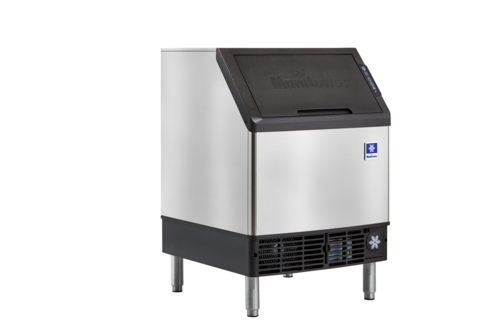

Manitowoc NEO UDP0190A Undercounter Self-Contained Dice Ice Machine with 90 lb Bin, Air-Cooled, Stainless Steel
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
Manitowoc NEO UDP0190A is a self-contained, air-cooled undercounter ice machine that produces dice ice and stores up to 90 lb.
The unit produces up to 200 lb of ice per 24 hours at 70°F air and 50°F water, or 175 lb per 24 hours at AHRI conditions of 90°F air and 70°F water. It includes an integrated 5 micron on-board water filter, touchpad controls, front ventilation, and a stainless steel finish.
- 26"W x 28.5"D x 38.5"H on 6" adjustable stainless steel legs
- Forward-sliding storage bin provides access to refrigeration components
- Dice cube size: 7/8" x 7/8" x 7/8"
Overall Dimensions:
26.0"W x 28.5"D x 38.5"HProduct Weight:
160.0 lbDice ice production
Produces up to 200 lb of dice ice per 24 hours at 70°F air and 50°F water, with 175 lb per 24 hours at AHRI conditions of 90°F air and 70°F water.
Integrated water filtration
Includes an integrated 5 micron on-board water filter.
Air-cooled, self-contained design
Combines an air-cooled condenser with a self-contained undercounter configuration.
Touchpad controls
Touchpad includes on/off, 8- and 16-hour production delay, clean, filter-change, full-bin, and service functions or indicators.
Forward-sliding storage bin
The storage bin slides forward to provide access to refrigeration components for cleaning and maintenance.
Front ventilation
Front ventilation is specified for installation under countertops or next to other equipment.
Adjustable stainless steel legs
Includes 6-inch adjustable stainless steel legs.
Stainless steel finish
