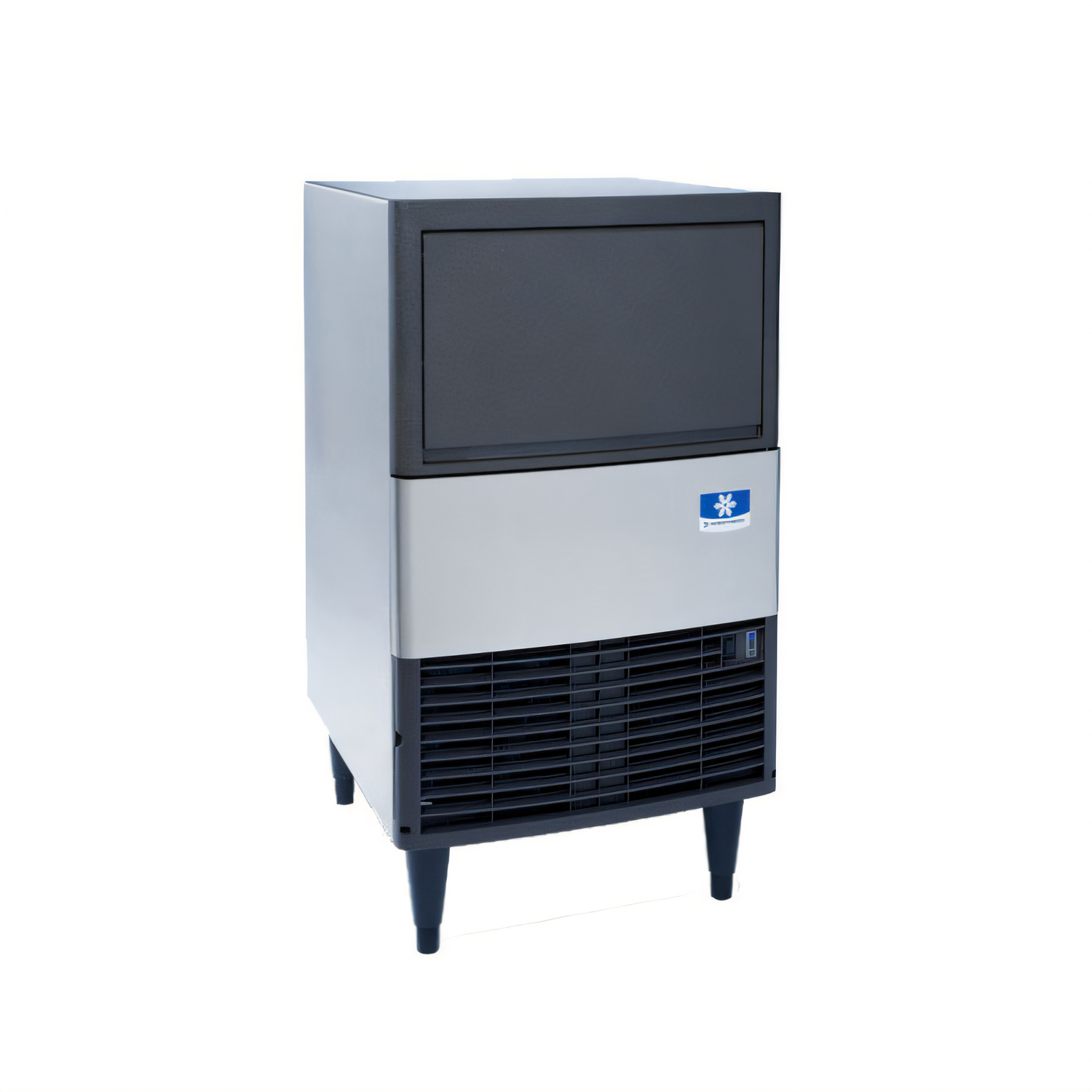

Manitowoc NEO Stainless Steel Undercounter Dice Ice Maker with 31 lb Storage Bin

Self-Contained, Air-Cooled, 115V, 110 lb/Day Production

This compact undercounter ice machine delivers up to 110 lb of dice ice per day with 31 lb of built-in storage for dependable back-of-house service.

  • Produces up to 110 lb of dice-style ice per 24 hours, with 75 lb output at 90°/70° conditions.
  • Built-in bin stores up to 31 lb of ice, keeping product ready during peak service.
  • Air-cooled, self-contained design with front ventilation is ideal for undercounter installation.
  • Front on/off/clean selector, full bin indicator, and service indicator simplify daily operation.
  • Alpha-San antimicrobial protection, sealed foodzone, and removable water trough support cleaner operation.
  • 6" adjustable legs, slide-out air filter, and forward-sliding storage bin make service and maintenance easier.

Overall Dimensions:

19.69"W x 22.34"D x 36.0"H

Product Weight:

114.0 lb

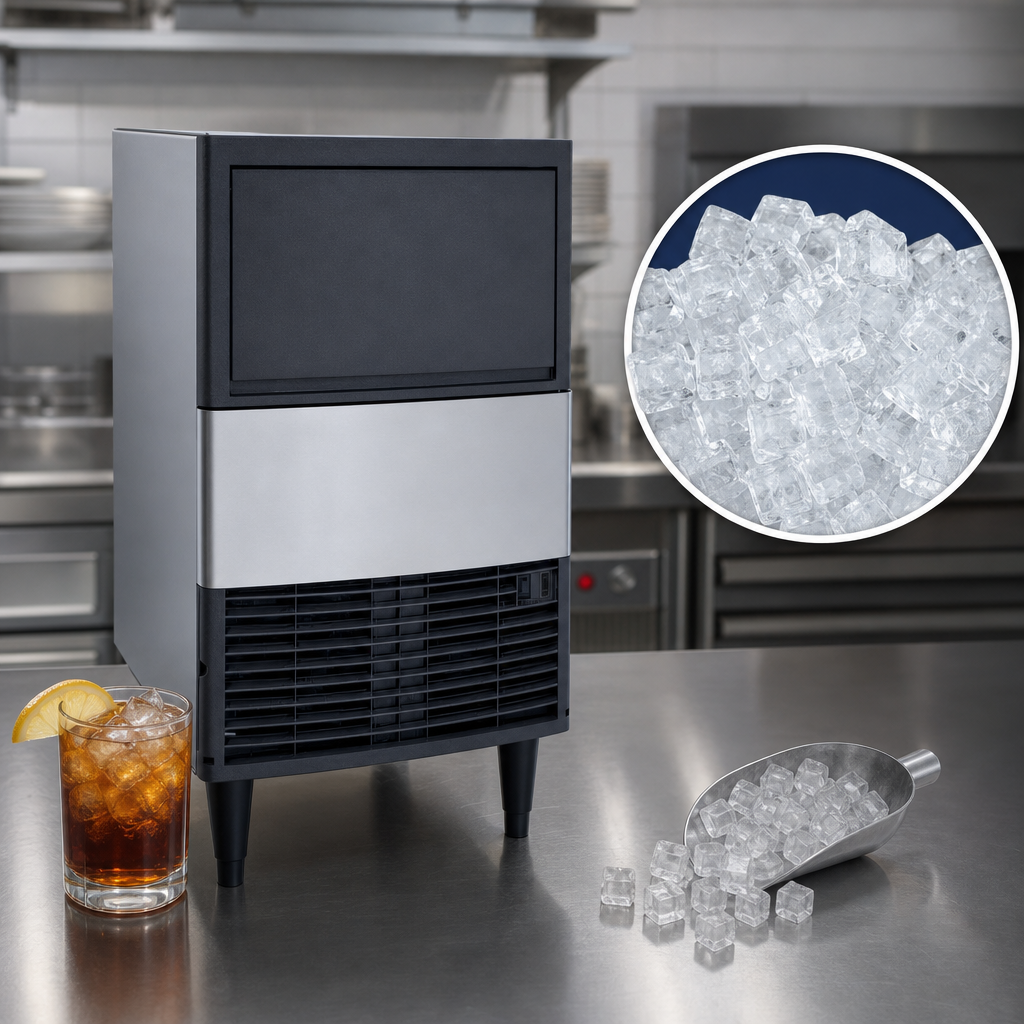

Dice Ice Shape

Produces dice cubes measuring 7/8" x 7/8" x 7/8" for standard beverage service.

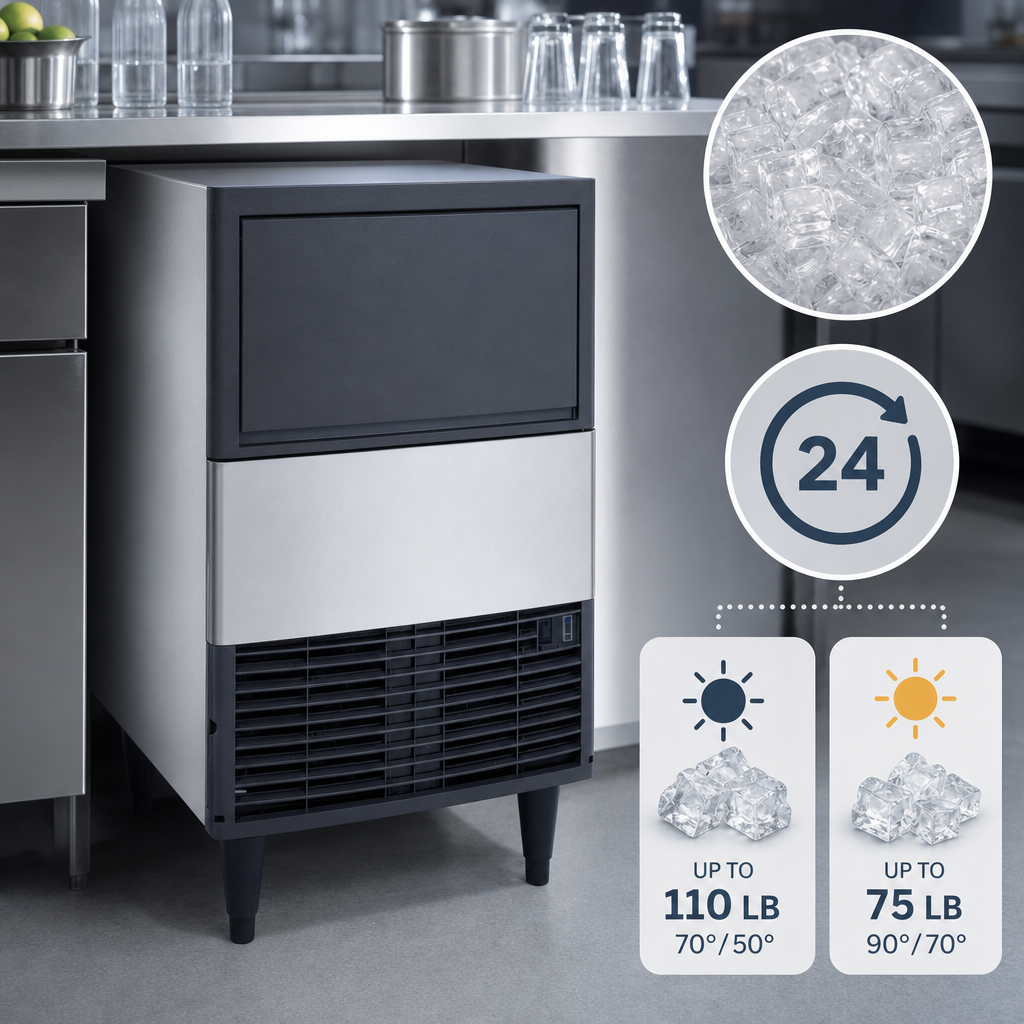

Daily Ice Production

Delivers up to 110 lb of ice per 24 hours at 70°/50°, or 75 lb at 90°/70° conditions.

Built-In Storage Bin

Holds up to 31 lb of ice so service is ready when demand spikes.

Air-Cooled, Self-Contained Design

Front ventilation supports undercounter placement without the need for a separate refrigeration system.

Front Access Controls

On/off/clean selector switch is located up front for easier operation without removing the panel.

Sanitation-Focused Foodzone

Sealed foodzone with removable water trough, distribution tube, and damper door helps simplify cleaning.

Alpha-San Antimicrobial Protection

Built-in antimicrobial protection helps inhibit the growth of bacteria on key contact surfaces.

Service-Friendly Maintenance

Forward-sliding storage bin, reusable slide-out air filter, and 6" adjustable legs help simplify access and upkeep.

R290 Refrigerant

Uses R290 refrigerant for the refrigeration system.

Type Ice Maker with Bin
Style Cube-Style
Installation Type Undercounter
Refrigeration Type Air-Cooled
Refrigerant Type R290
Voltage 115 Volts
Amps 4.2 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
BTU 2,050 BTU/Hr Average / 2,500 BTU/Hr Peak
Capacity 31 lb Ice Storage Capacity
Controls On/Off/Clean Switch
Water Connection Required
Drain Connection Required
Finish Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 20 Inches
Shipping Depth 23 Inches
Shipping Height 36 Inches
Shipping Weight 114 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Limited commercial warranty.

Documents

PDF Cutsheet PDF Download PDF Quick reference guide - english PDF Download PDF Quick reference guide PDF Download PDF Cleaner product guide PDF Download PDF Full line brochure PDF Download PDF Quick reference guide - spanish PDF Download PDF Ice type brochure PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It makes dice ice cubes measuring 7/8" x 7/8" x 7/8".
Up to 110 lb per 24 hours at 70°/50°, or 75 lb at 90°/70° conditions.
The built-in bin stores up to 31 lb of ice.
Standard operation is 115/60/1 with 4.2 amps, a 6 ft cord, and a NEMA 5-15P plug; 230/50/1 is also available.
No. The unit is intended for indoor installation only.
The ice maker has a limited commercial warranty: 3 years parts and labor for the ice maker, 5 years parts and labor for the evaporator, and 5 years parts / 3 years labor for the compressor.
