Key specifications

BTU
40,000 BTU average; 46,000 BTU peak
Amps
2 Amps
Phase
1-Phase
Dimensions
48.0"W × 31.0"D × 36.0"H
Type
Cube Ice Maker
Style
Remote Air-Cooled
Spec sheet
Manitowoc SKU: SYF3000C

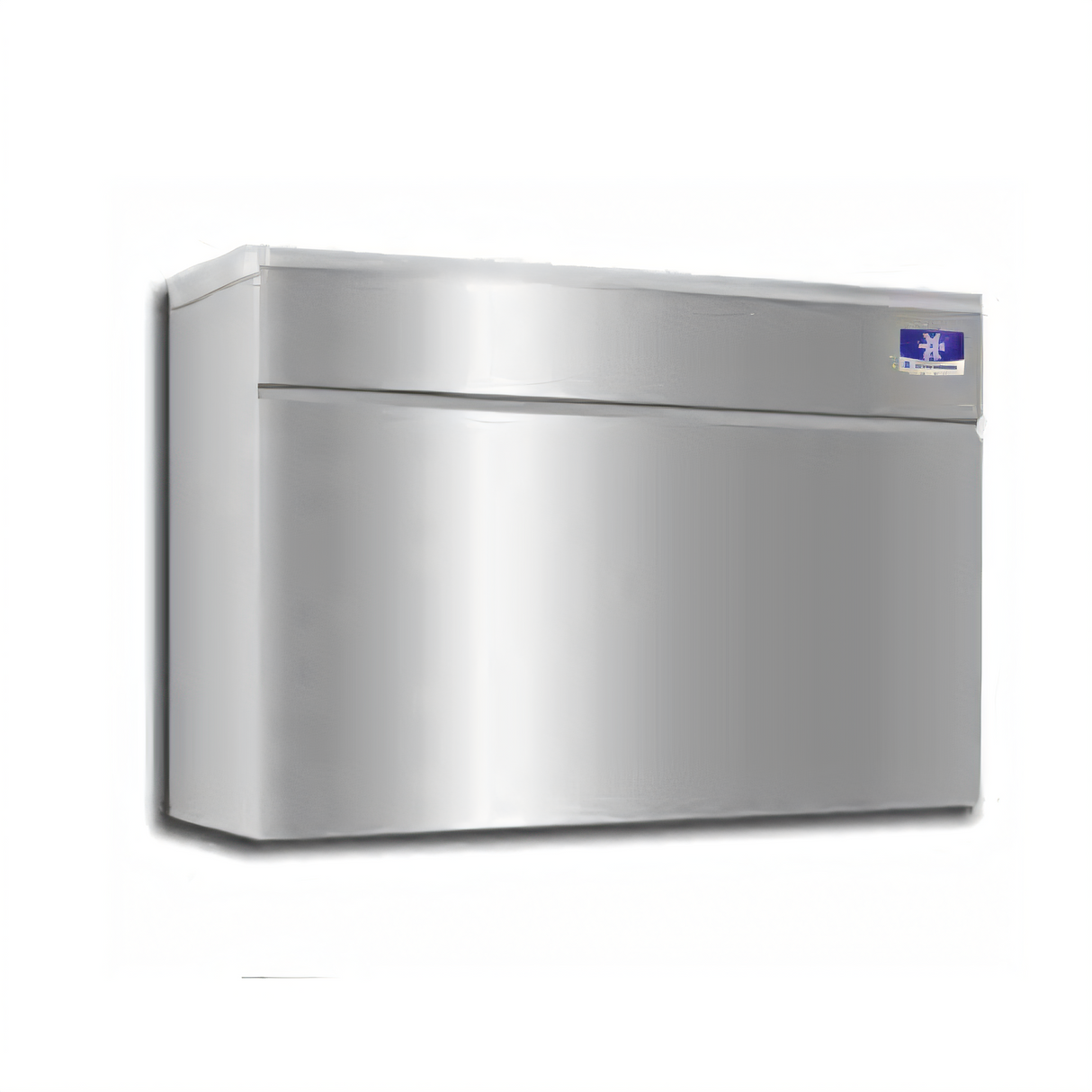

Manitowoc Quadzilla SYF3000C 48-Inch Half-Dice Ice Maker

Discontinued
$16,556.10
/each
No longer available — the manufacturer has retired this model.
Refrigeration system
Cube size
Included: Manitowoc warranty 5-year parts-and-labor coverage on the evaporator; 5-year parts and 3-year labor coverage on the compressor; 3-year parts-and-labor coverage on other ice machine components

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cube Ice Maker
Style Remote Air-Cooled
Material Stainless Steel
Finish Stainless Steel
Ice Type Half Dice
Ice Cube Size 3/8 in x 1 1/8 in x 7/8 in
Capacity 2,910 lb/24 hours at 70°F air / 50°F water
AHRI Certified Capacity 2,400 lb/24 hours at 90°F air / 70°F water
Condenser Type Air-Cooled
Refrigeration Type Remote
Evaporator Count 4
Voltage 115 Volts
Amps 2 Amps
Maximum Fuse Size 15 Amps
Hertz 60 Hz
Phase 1-Phase
BTU 40,000 BTU average; 46,000 BTU peak
Compressor Horsepower 4.5 HP
Temperature Range 35°F to 110°F ambient; 35°F to 90°F water
Water Pressure 20–80 psi
Water Usage 21.5 gal/100 lb at 90°F air / 70°F water
Power Consumption 4.75 kWh/100 lb at 90°F air / 70°F water
Maximum Line Length 100 ft
Maximum Vertical Rise 35 ft above ice maker
Maximum Vertical Drop 15 ft below ice maker
Technology CVD

Description

The Quadzilla SYF3000C is a remote air-cooled cube ice maker that produces up to 2,910 lb of half-dice ice per 24 hours at 70°F air and 50°F water.

  • Remote refrigeration: Designed for remote refrigeration; the condensing unit and interconnecting lines are sold separately.
  • Half-dice ice: Produces cubes measuring 3/8 in x 1 1/8 in x 7/8 in.
  • High production: AHRI-certified production is 2,400 lb per 24 hours at 90°F air and 70°F water.
  • Stainless steel construction: Includes a stainless steel tubular frame and stainless steel exterior.
  • Separate storage: The ice machine and storage bin are sold separately.

Overall Dimensions:

48.0"W x 31.0"D x 36.0"H

Product Weight:

423.0 lb

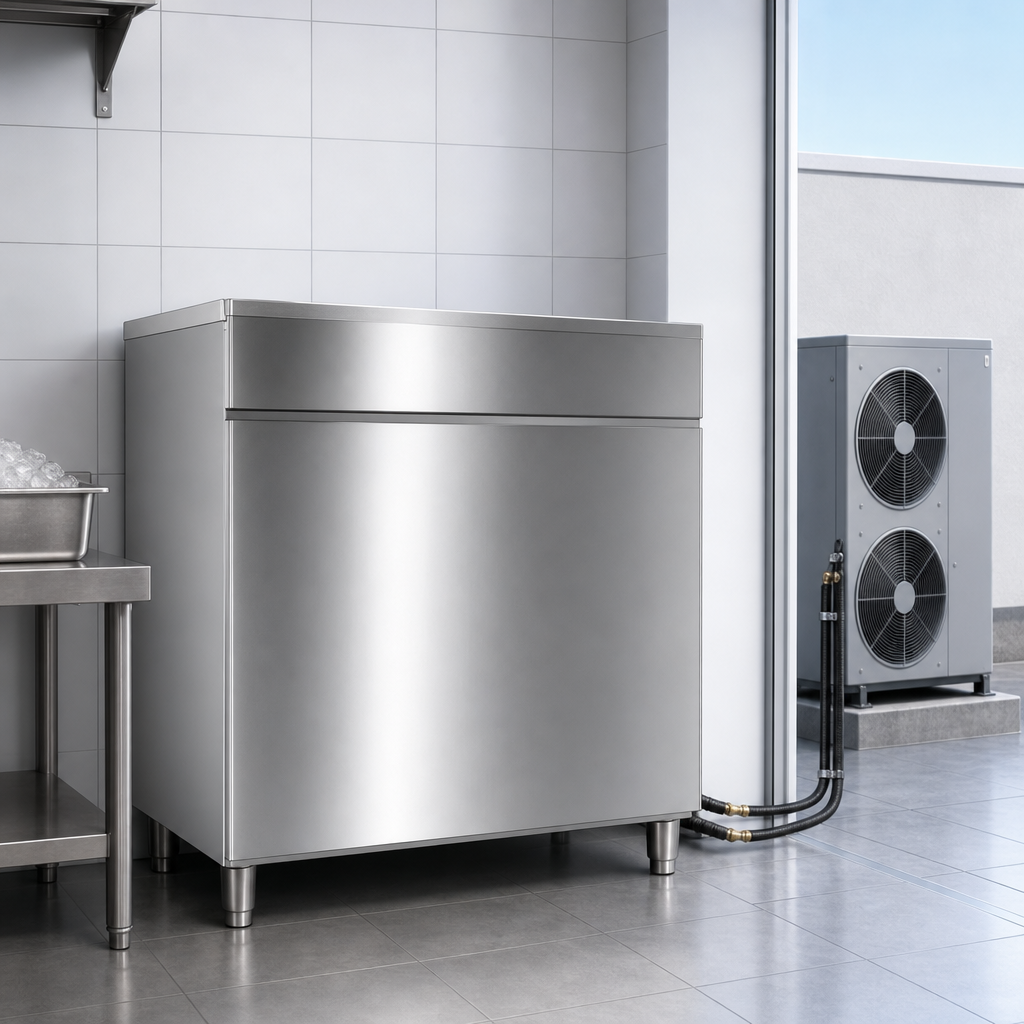

Remote Refrigeration

Designed for remote refrigeration; the condensing unit and interconnecting lines are sold separately.

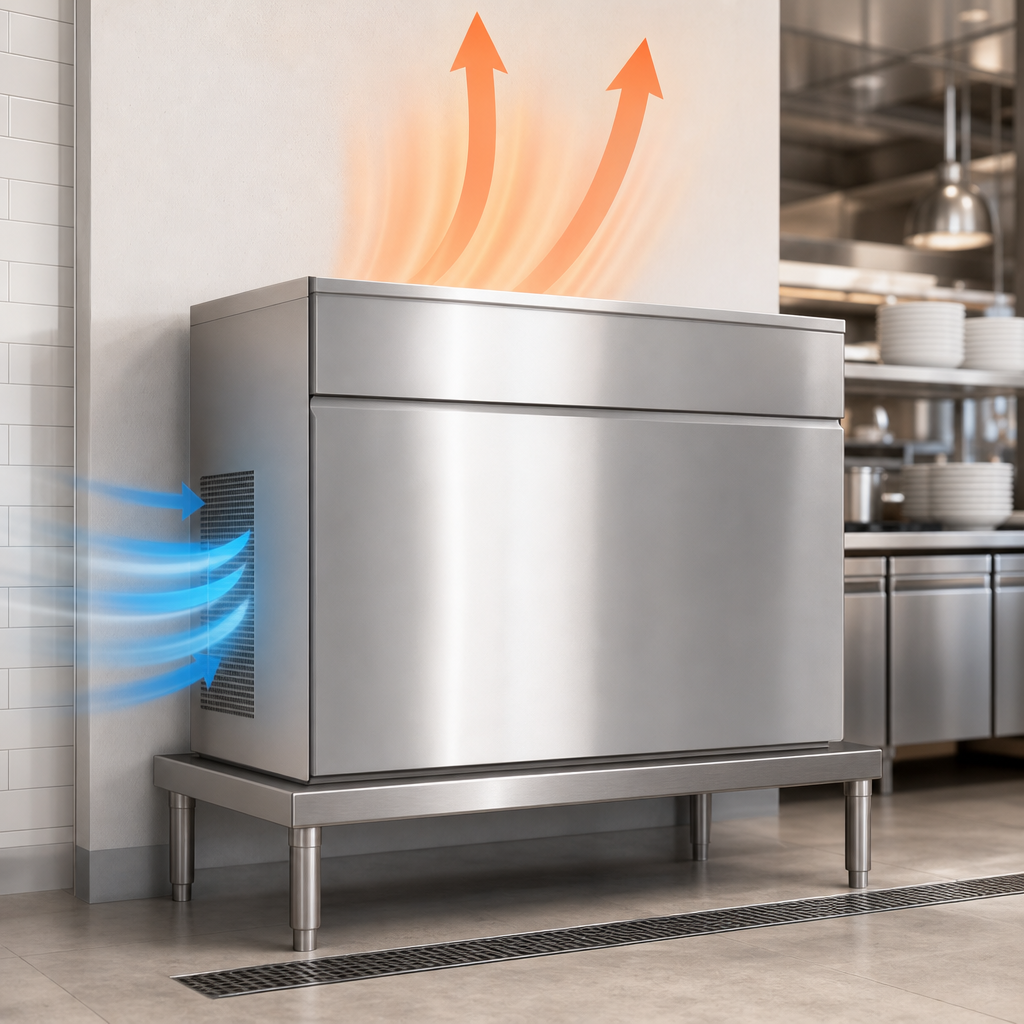

Air-Cooled Operation

The ice maker is specified as air-cooled.

Quadzilla Evaporator System

Four high-output individual evaporators are placed in the 48-inch-wide ice maker.

CVD Technology

Patented CVD technology is specified to improve compressor reliability and extend compressor life.

Quiet Operation

The remotely located compressor eliminates most noise from the refrigeration system at the ice maker.

Stainless Steel Construction

The unit has a stainless steel tubular frame and stainless steel exterior.

Half-Dice Ice

Produces half-dice cubes measuring 3/8 in x 1 1/8 in x 7/8 in.

Stacking

The ice maker is not to be used in stacking configurations.

Frequently Asked Questions

No. It is designed for remote refrigeration, and the condensing unit and interconnecting lines are sold separately.
It produces half-dice cubes measuring 3/8 in x 1 1/8 in x 7/8 in.
It produces up to 2,910 lb per 24 hours at 70°F air and 50°F water, or 2,400 lb per 24 hours at AHRI conditions of 90°F air and 70°F water.
The ice maker is standard at 115 Volts, 60 Hz, 1-Phase, with a minimum circuit ampacity of 2 Amps and a maximum fuse size of 15 Amps.
No. The ice machine and storage bin are sold separately.
No. It is not to be used in stacking configurations.
