Key specifications

BTU
10,822 BTU
Phase
1-Phase
Dimensions
22.0"W × 23.63"D × 26.0"H
Type
Nugget Ice Machine
Material
Stainless Steel
Ice Shape
Nugget
Spec sheet
Manitowoc SKU: RNP0620A

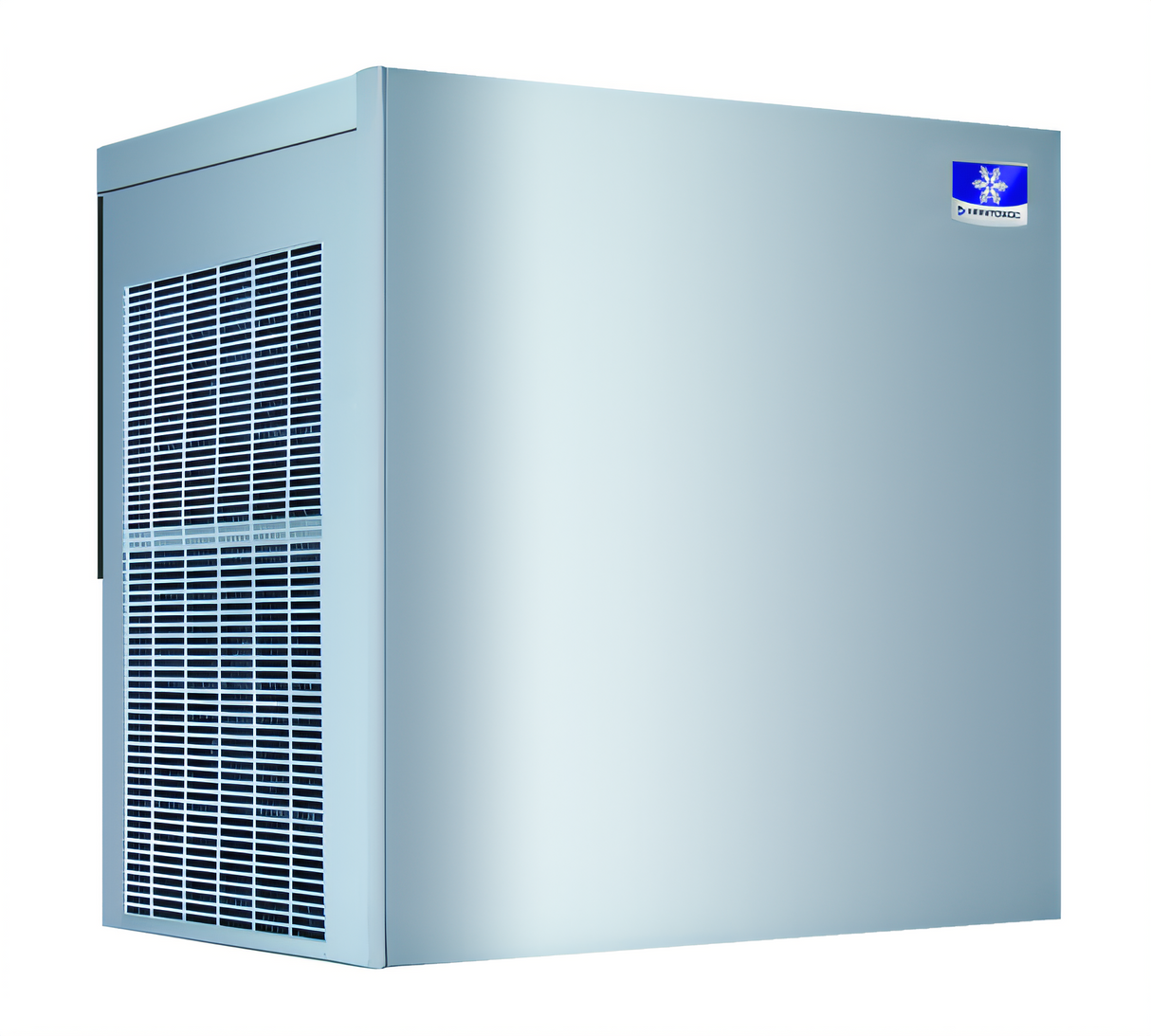

Manitowoc RNP0620A Nugget Ice Machine, 591 lb/24 hr

$5,771.01
/each
Estimated to ship in 21–24 business days
Cooling type
Electrical115 V · 1-phase · 60 Hz
Ice storage bins
Bin adapters
Included: Manitowoc warranty 3-year warranty on most equipment; coverage varies by product line

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $534/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Nugget Ice Machine
Material Stainless Steel
Ice Shape Nugget
Cooling Air-Cooled
Refrigeration Type Self-Contained Refrigeration
Capacity Up to 591 lb/24 hours at 70°F air / 50°F water
AHRI Certified Production 451 lb/24 hours at 90°F air / 70°F water
Refrigerant Type R290A
Compressor Horsepower 1 HP
BTU 10,822 BTU
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Minimum Circuit Ampacity 13.5 Amps
Maximum Fuse Size 20 Amps
Ambient Temperature Range 50°F–110°F
Water Temperature Range 37°F–90°F
Water Inlet Pressure 14–80 psi
Bearing Type High-Load Stainless Steel

Description

The Manitowoc RNP0620A is an air-cooled, self-contained nugget ice machine designed to produce up to 591 lb of ice per 24 hours at 70°F air and 50°F water.

  • Nugget ice: Bite-sized pieces average 3/8 to 1/2 inch in width and length, with an 85% ice-to-water ratio.
  • Construction: Stainless steel exterior with high-load stainless steel bearings.
  • Refrigeration: Uses R290A refrigerant and a self-contained, air-cooled condenser.
  • Electrical: Specified for 115 Volts, 60 Hz, and 1-Phase operation.
  • Dimensions: 22 inches wide by 23.63 inches deep by 26 inches high.

Overall Dimensions:

22.0"W x 23.63"D x 26.0"H

Product Weight:

210.0 lb

Nugget Ice

Produces bite-sized nugget ice averaging 3/8 to 1/2 inch in width and length with an 85% ice-to-water ratio.

Production Capacity

Produces up to 591 lb per 24 hours at 70°F air and 50°F water; AHRI-certified production is 451 lb per 24 hours at 90°F air and 70°F water.

Air-Cooled Condenser

Uses an air-cooled condenser.

Self-Contained Refrigeration

The refrigeration system is self-contained.

Stainless Steel Exterior

The exterior is stainless steel.

R290A Refrigerant

Uses R290A refrigerant.

High-Load Stainless Steel Bearings

Equipped with high-load stainless steel bearings.

Frequently Asked Questions

It produces up to 591 lb of nugget ice per 24 hours at 70°F air and 50°F water. AHRI-certified production is 451 lb per 24 hours at 90°F air and 70°F water.
It makes bite-sized nugget ice. The pieces average 3/8 to 1/2 inch in width and length and have an 85% ice-to-water ratio.
The RNP0620A is air-cooled and uses self-contained refrigeration.
It uses R290A refrigerant.
The standard electrical specification is 115 Volts, 60 Hz, and 1-Phase, with a 13.5 Amp minimum circuit ampacity and a 20 Amp maximum fuse size.
The machine measures 22 inches wide by 23.63 inches deep by 26 inches high and weighs 210 lb.
