Key specifications

BTU
7,511 BTU
Phase
1-Phase
Dimensions
22.0"W × 23.63"D × 26.0"H
Type
Ice Maker
Style
Modular
Shape
Nugget
Spec sheet
Manitowoc SKU: RNP0320A

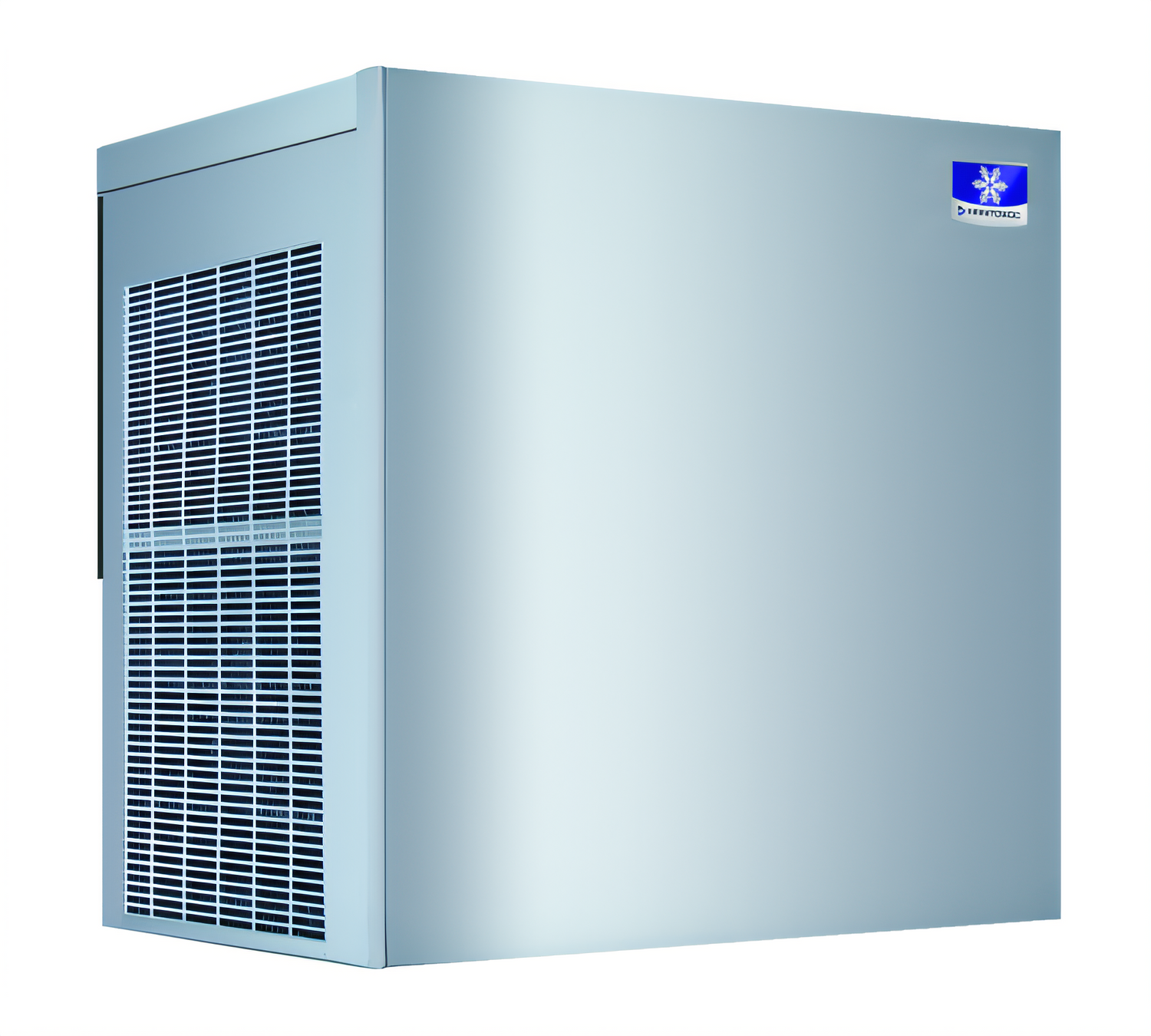

Manitowoc RNP0320A 308 lb Nugget Ice Machine Head

$4,681.29
/each
Estimated to ship in 21–24 business days
Electrical115 V · 1-phase · 60 Hz
Ice bins
Adapters
Included: Manitowoc warranty 3-year warranty on most equipment; coverage varies by product line

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $433/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Ice Maker
Style Modular
Shape Nugget
Finish Stainless Steel
Cooling Air-Cooled
Refrigeration Type Self-Contained Refrigeration
Production Per 24 Hours 308 lb/24 hours at 70°F Air/50°F Water
AHRI Certified Production 236 lb/24 hours at 90°F Air/70°F Water
Refrigerant Type R-290A
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Minimum Circuit Ampacity 7.5 Amps
Maximum Fuse Size 15 Amps
BTU 7,511 BTU
Ambient Temperature Range 50–110°F
Water Temperature Range 37–90°F
Water In Pressure 14–80 psi
Potable Water Usage 12 gal/100 lb Ice
Ice Size 3/8–1/2 in. average width and length

Description

The Manitowoc RNP0320A is a modular nugget ice maker with an air-cooled, self-contained refrigeration system. It produces up to 308 lb of bite-sized nugget ice per 24 hours at 70°F air and 50°F water; AHRI-certified production is 236 lb per 24 hours at 90°F air and 70°F water.

  • 22 in. W x 23.63 in. D x 26 in. H
  • Stainless steel finish
  • R-290A refrigerant
  • 115 V, 60 Hz, single phase
  • High-load stainless steel bearings

Overall Dimensions:

22.0"W x 23.63"D x 26.0"H

Product Weight:

174.0 lb

Nugget Ice

Produces bite-sized nugget ice averaging 3/8 to 1/2 inch in width and length.

Air-Cooled Condenser

Uses an air-cooled condenser.

Self-Contained Refrigeration

The refrigeration system is self-contained.

Daily Ice Production

Produces up to 308 lb per 24 hours at 70°F air and 50°F water.

High-Load Stainless Steel Bearings

Specified with high-load stainless steel bearings.

Stainless Steel Finish

Finished in stainless steel.

R-290A Refrigerant

Uses R-290A refrigerant.

Frequently Asked Questions

It produces bite-sized nugget ice averaging 3/8 to 1/2 inch in width and length.
It produces up to 308 lb per 24 hours at 70°F air and 50°F water. AHRI-certified production is 236 lb per 24 hours at 90°F air and 70°F water.
Yes. The RNP0320A uses an air-cooled condenser.
The product measures 22 inches wide by 23.63 inches deep by 26 inches high.
It uses R-290A refrigerant.
The standard electrical specification is 115 volts, 60 Hz, single phase.
