Key specifications

BTU
7,500 BTU/hour Average; 10,900 BTU/hour Peak
Amps
14.2 Amps
Phase
1-Phase
Dimensions
30.0"W × 23.62"D × 27.4"H
Type
Nugget Ice Machine
Style
Self-Contained
Spec sheet
Manitowoc SKU: RNF1100A

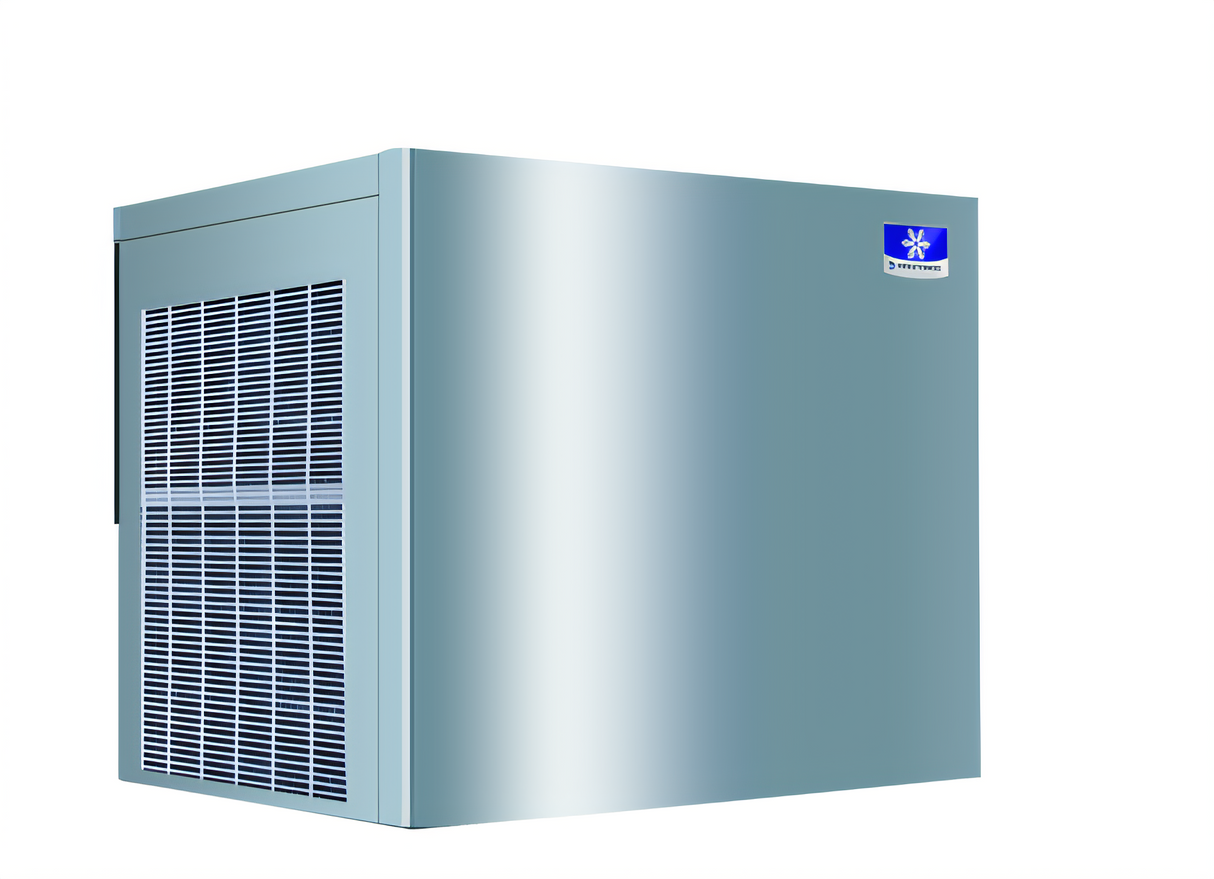

Manitowoc RNF1100A Nugget Ice Machine, 1,078 lb/Day

Discontinued
$9,337.56
/each
No longer available — the manufacturer has retired this model.
Cooling
Included: Manitowoc warranty 3-year parts and 3-year labor warranty; compressor parts for 5 years and compressor labor for 3 years

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Nugget Ice Machine
Style Self-Contained
Cooling Air-Cooled
Refrigeration Type Self-Contained
Material Stainless Steel
Ice Shape Nugget
Capacity 1,078 lb/24 Hours
AHRI Certified Capacity 825 lb/24 Hours
Voltage 208-230 Volts
Amps 14.2 Amps
Hertz 60 Hz
Phase 1-Phase
BTU 7,500 BTU/hour Average; 10,900 BTU/hour Peak
Compressor Horsepower 1.5 HP
Refrigerant Type R404A
Ambient Temperature Range 50-100°F
Water Temperature Range 45-90°F
Water Usage 12 gal/100 lb

Description

The Manitowoc RNF1100A produces bite-size nugget ice with an air-cooled, self-contained refrigeration system and a stainless steel exterior.

  • Produces up to 1,078 lb of ice per 24 hours at 70°F air and 50°F water.
  • AHRI-certified production is 825 lb per 24 hours at 90°F air and 70°F water.
  • Uses 208-230V, 60 Hz, single-phase electrical service.
  • Features high-load stainless steel bearings, a 1.5 HP compressor, and R404A refrigerant.
  • Storage bin is ordered separately.

Overall Dimensions:

30.0"W x 23.62"D x 27.4"H

Product Weight:

275.0 lb

Nugget Ice

Produces bite-size nugget ice; pieces range from 3/8 to 1/2 inch in width and length on average.

Air-Cooled Condenser

Uses an air-cooled condenser.

Self-Contained Refrigeration

The refrigeration system is self-contained.

Ice Production

Produces up to 1,078 lb of ice per 24 hours at 70°F air and 50°F water.

AHRI-Certified Output

Produces 825 lb per 24 hours under AHRI conditions of 90°F air and 70°F water.

Stainless Steel Exterior

The exterior is stainless steel.

High-Load Bearings

Specified with high-load stainless steel bearings.

Electrical Configuration

Designed for 208-230V, 60 Hz, single-phase electrical service.

Compressor and Refrigerant

Uses a 1.5 HP compressor and R404A refrigerant.

Frequently Asked Questions

It produces bite-size nugget ice. The pieces range from approximately 3/8 to 1/2 inch in width and length.
It produces up to 1,078 lb per 24 hours at 70°F air and 50°F water. AHRI-certified production is 825 lb per 24 hours at 90°F air and 70°F water.
Yes. It uses an air-cooled, self-contained refrigeration system.
The standard electrical configuration is 208-230V, 60 Hz, single-phase, with a listed air-cooled minimum circuit ampacity of 14.2 amps.
No. The storage bin is ordered separately.
It uses R404A refrigerant.
The product measures 30 inches wide by 23.62 inches deep by 27.4 inches high and weighs 275 lb.
