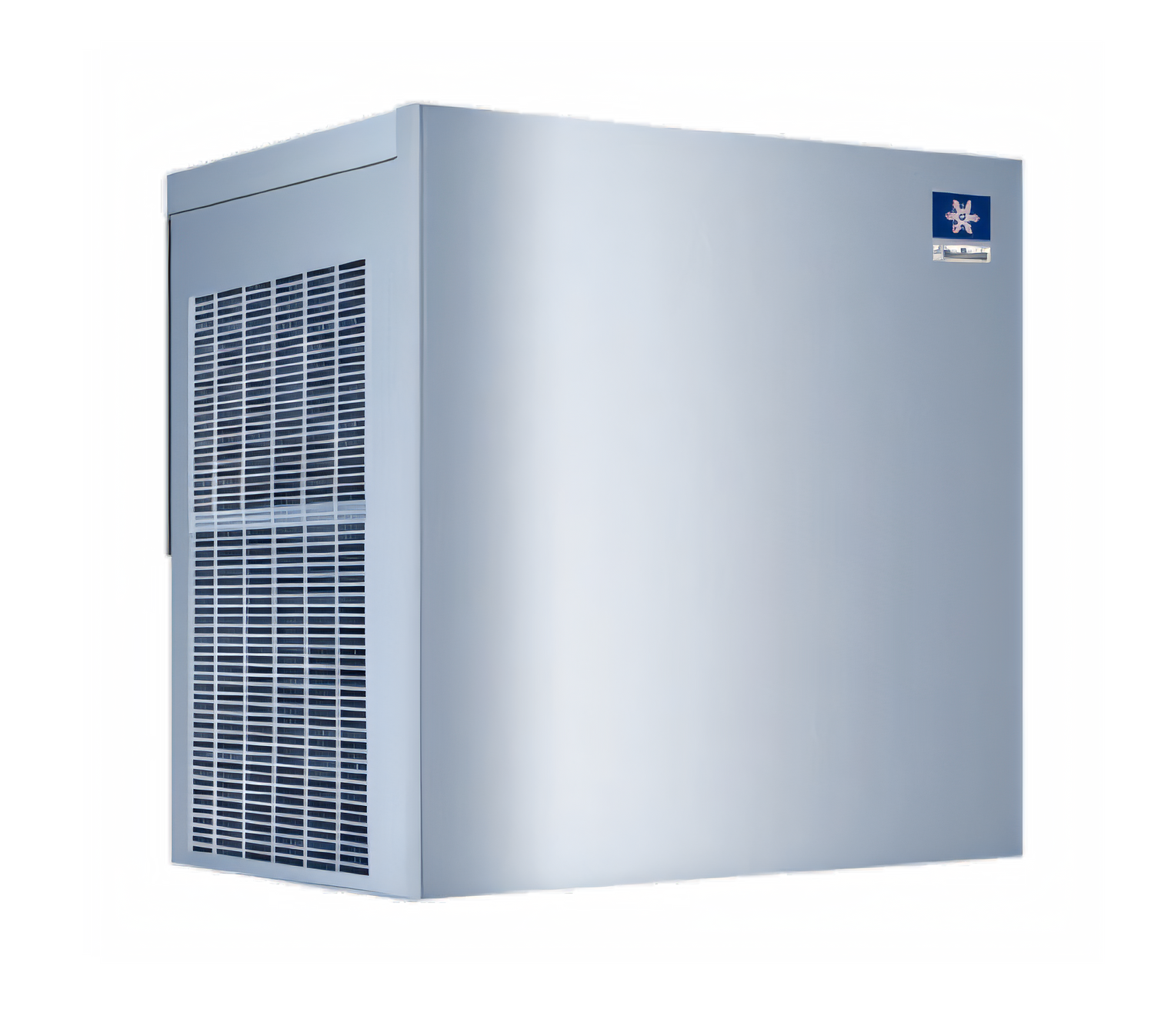

Manitowoc RFK0620AZ Air-Cooled Self-Contained Flake Ice Machine, 730 lb/Day, 22-Inch Wide

Stainless Steel Finish, 1 HP, 50 Hz International Version

Built for dependable flake ice production, this compact stainless steel machine delivers high daily output in a service-friendly, air-cooled design.

  • Produces up to 730 lb of flake ice per 24 hours for demanding display and cooling applications.
  • Air-cooled, self-contained condenser helps simplify installation.
  • Heavy-duty stainless steel construction and high-load bearings support durability and corrosion resistance.
  • Flake ice is ideal for food display, salad bars, and cold therapy/healthcare use.
  • 220-240V / 50 Hz / 1-phase international electrical configuration with 1 HP power.
  • Listed with cETLus, ETL-Sanitation, CE, and AHRI certifications.

Overall Dimensions:

22.0"W x 23.63"D x 26.0"H

Product Weight:

230.0 lb

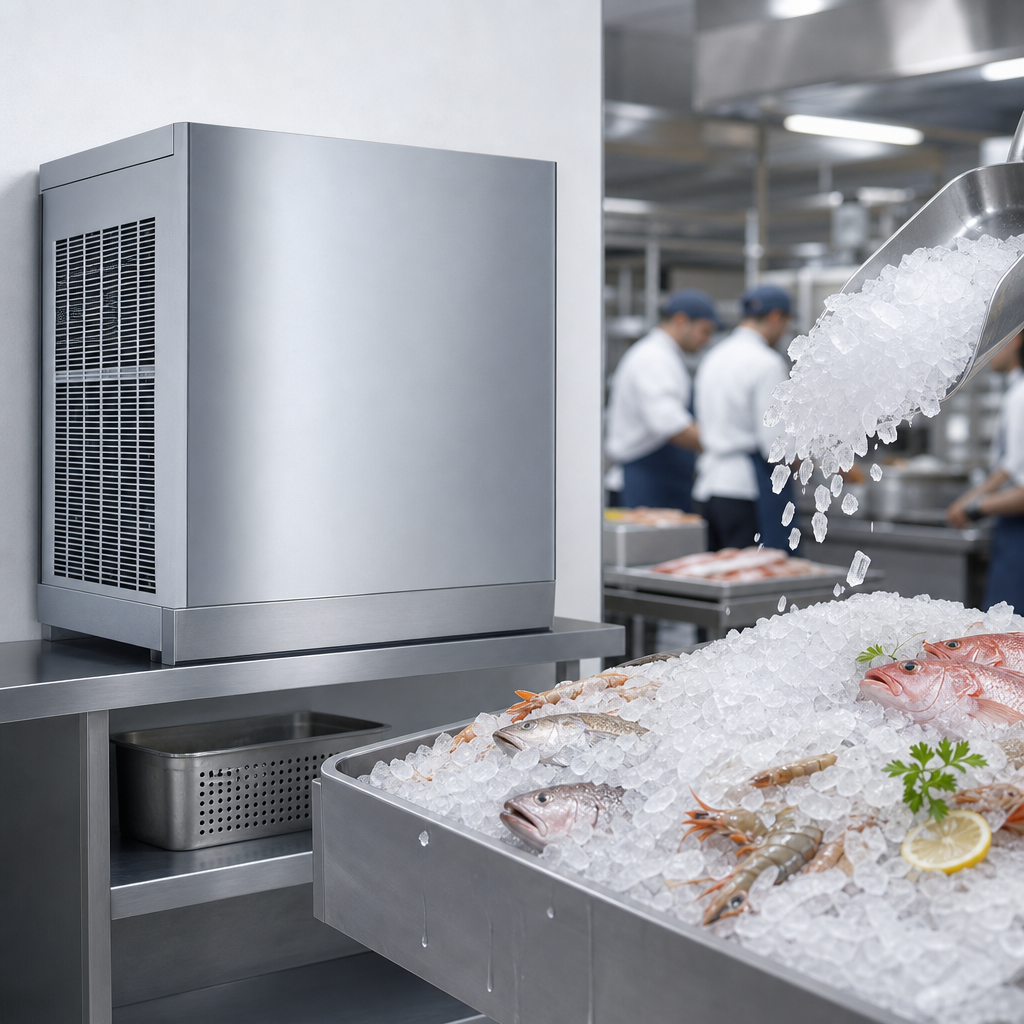

High Daily Flake Ice Production

Delivers up to 730 lb per 24 hours under rated conditions, with AHRI-certified output noted at 506 lb per day at 90°/70°.

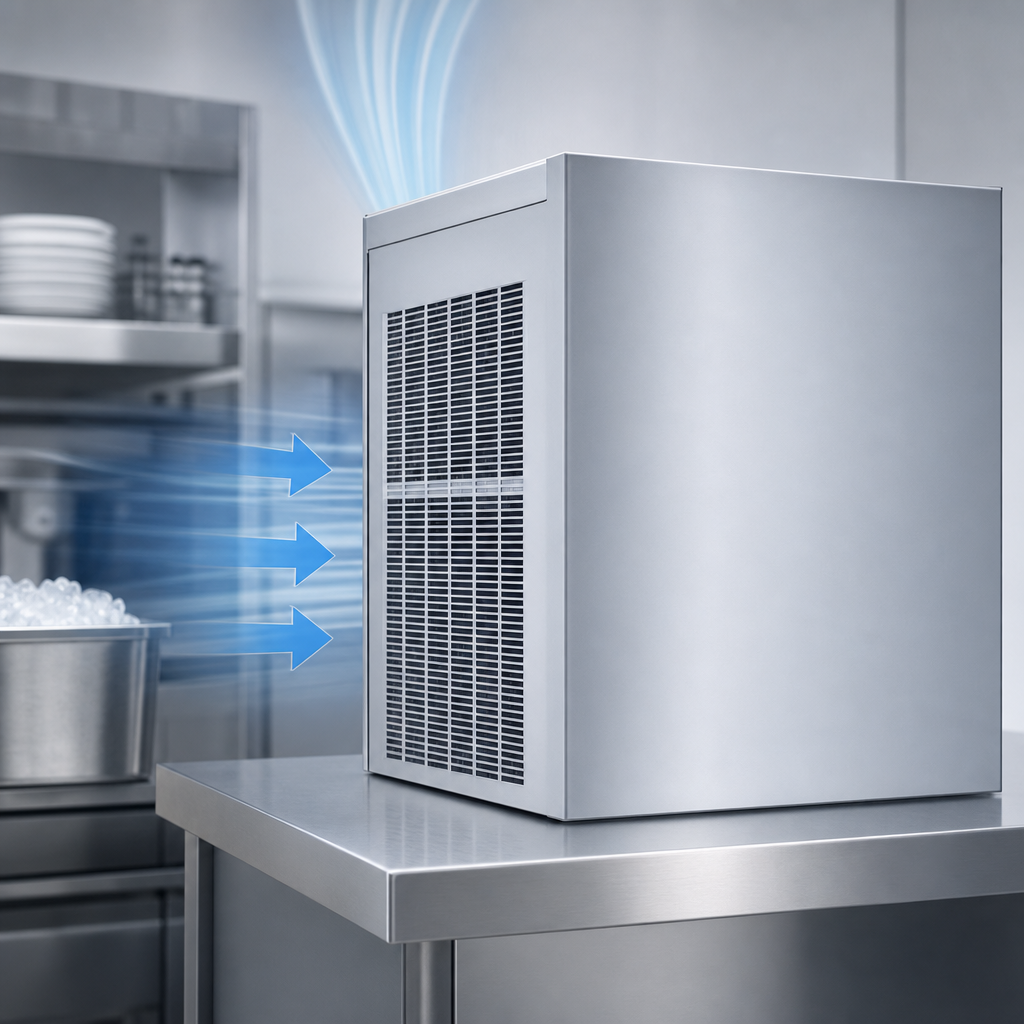

Air-Cooled, Self-Contained Condenser

Built for straightforward installation with an integrated air-cooled refrigeration system.

Stainless Steel Construction

Heavy-duty stainless steel cabinet and finish help resist corrosion in commercial environments.

High-Load Stainless Steel Bearings

Maintenance-free bearing design supports reliable operation and long service life.

Service-Friendly Design

Service updates are intended to make installation and cleaning easier.

Ideal Flake Ice Application

Flake ice is well suited for food display, salad bars, and cold therapy or healthcare applications.

International Electrical Package

Configured for 220-240V, 50 Hz, 1-phase operation for international use.

Commercial Compliance

Documented with cETLus, ETL-Sanitation, CE, and AHRI certifications.

Type Ice Machine
Style Flake
Refrigeration Type Self-Contained
Capacity 730 lb per 24 Hours
BTU 5,200 BTU per Hour
Refrigerant Type R452A
Material Stainless Steel
Finish Stainless Steel
Horsepower 1 HP
Voltage 220-240 Volts
Amps 10 Amps
Watts 1.1 kW
Hertz 50 Hz
Phase 1-Phase
Water Connection Required
Drain Connection Required
Water Inlet Size 3/8 Inch N.P.T.
Shipping Width 22 Inches
Shipping Depth 24 Inches
Shipping Height 26 Inches
Shipping Weight 230 lb
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Warranty & Protection

3-year parts and 2-year labor on the ice maker; 5-year parts and 2-year labor on the compressor.

Documents

PDF Cutsheet PDF Download PDF Quick reference guide - spanish PDF Download PDF Technical manual PDF Download PDF Quick reference guide - english PDF Download PDF Owner's manual PDF Download PDF Cleaner product guide PDF Download PDF Parts list PDF Download PDF Brochure PDF Download PDF Quick reference guide PDF Download PDF Full line brochure PDF Download PDF Ice type brochure PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It produces flake ice, which is ideal for food display, salad bars, and cold therapy applications.
It can produce up to 730 lb per 24 hours under rated conditions, with 506 lb AHRI-certified output at 90°/70°.
This model is air-cooled and uses a self-contained condenser.
It is configured for 220-240V, 50 Hz, 1-phase operation, with 1.1 kW average power consumption and a 10-amp maximum fuse size.
The ice maker includes a 3-year parts and 2-year labor warranty, and the compressor includes a 5-year parts and 2-year labor warranty.
Yes. The K-00443 bin adapter is needed for RFK0620 installation on 30-inch D-400 or D-570 ice bins.
