Manitowoc

Manitowoc QuietQube RFF-2200C Remote Air-Cooled Flake Ice Machine, 208-230V, Single Phase

SKU: RFF2200C
$14,281.36
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Ice Machines Ice Makers & Bins Manitowoc New Arrivals Restaurant Equipment

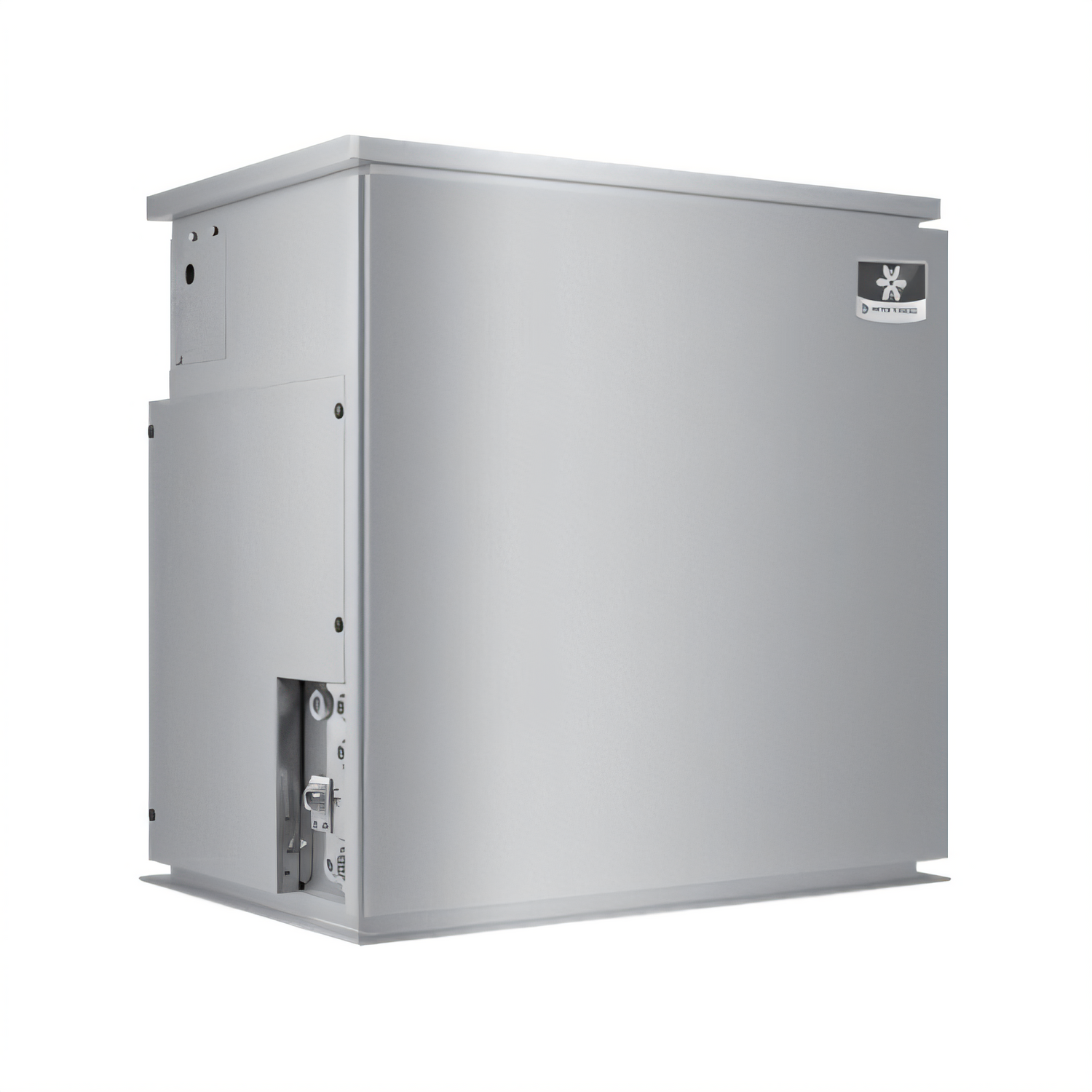

Manitowoc QuietQube RFF-2200C Remote Air-Cooled Flake Ice Machine, 208-230V, Single Phase

Ice machine head section for remote refrigeration systems

Built for high-volume flake ice production, this quiet remote system pairs energy-efficient performance with a durable stainless steel exterior.

  • Remote QuietQube system is designed to be used with a separate condensing unit, refrigerant lines, and ice storage unit.
  • Produces flake ice ideal for presentation applications.
  • Up to 2,169 lb per 24 hours at 70°/50°; 1,702 lb AHRI certified at 90°/70°.
  • Air-cooled remote condenser design improves efficiency and reduces heat load at the machine.
  • Quiet operation helps maintain a more comfortable environment.
  • Stainless steel exterior and high-load stainless steel bearings support durability.
  • 208-230V, single-phase electrical connection; 50 Hz version also available.
  • ENERGY STAR® certified for energy-conscious operation.

Overall Dimensions:

30.0"W x 23.63"D x 27.4"H

Product Weight:

279.0 lb

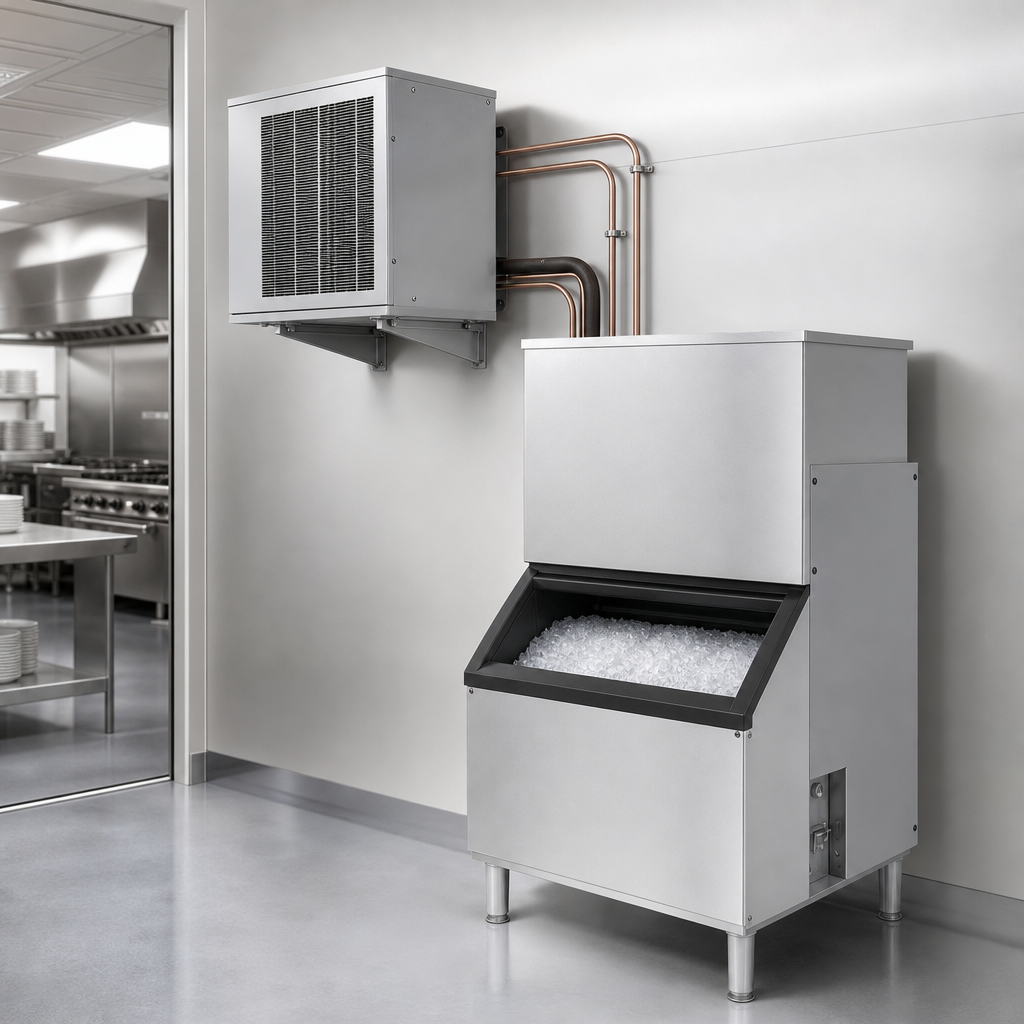

Remote System Design

Head section is ordered with a separate remote condensing unit, interconnecting refrigerant lines, and storage unit.

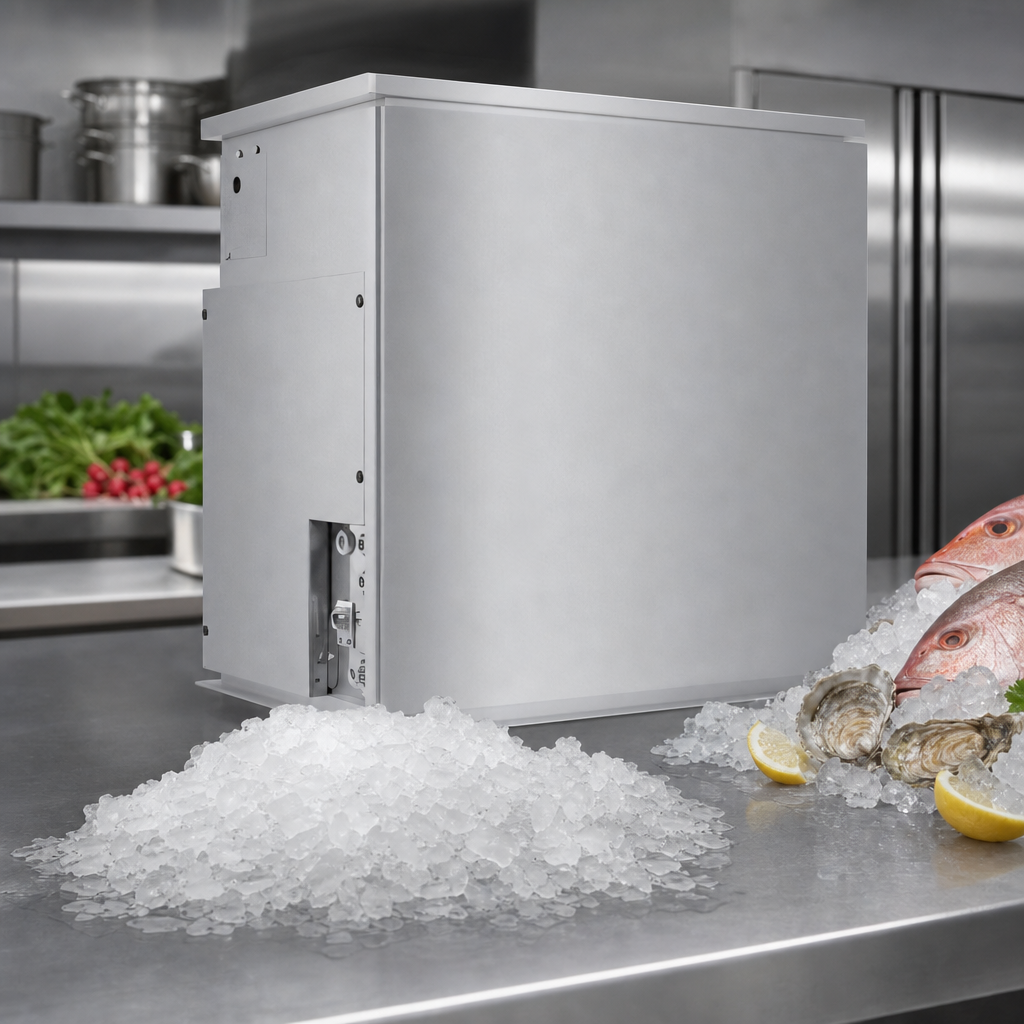

Flake Ice Production

Produces small hard bits of flake ice, ideal for presentation applications.

High Daily Output

Rated up to 2,169 lb per 24 hours at 70°/50°; 1,702 lb AHRI certified at 90°/70°.

Air-Cooled Efficiency

Remote air-cooled condenser system helps dissipate heat away from the machine, improving efficiency and reducing air conditioning load.

Quiet Operation

Designed to minimize refrigeration noise for a quieter environment.

Stainless Steel Exterior

Durable stainless steel finish offers a clean, modern appearance.

Heavy-Duty Bearings

High-load stainless steel bearings support operating life and reliability.

Electrical Setup

Operates on 208-230V, single phase; 50 Hz version also available.

Energy Efficient

ENERGY STAR® certified.

Type Ice Machine
Style Flake
Refrigeration Type Remote
Capacity 2169 lb per 24 Hours
Material Stainless Steel
Finish Stainless Steel
Voltage 208-230 Volts
Amps 3.2 Amps
Hertz 60 Hz
Phase 1-Phase
Breaker Size 15 Amps
Refrigerant Type R404A
Shipping Width 30 Inches
Shipping Depth 24 Inches
Shipping Height 28 Inches
Shipping Weight 279 lb
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of ETL Listed
ETL Listed

Warranty & Protection

3-year parts and labor on the ice maker; 5-year parts and 3-year labor on the compressor.

Documents

PDF Cutsheet PDF Download PDF Full line brochure PDF Download PDF Ice type brochure PDF Download PDF Owner's manual PDF Download PDF Cleaner product guide PDF Download PDF Quick reference guide - english PDF Download PDF Quick reference guide - spanish PDF Download PDF Quick reference guide PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. The QuietQube system is designed for remote refrigeration, so the condensing unit, refrigerant lines, and ice storage unit are ordered separately.
Flake ice.
208-230V, single phase, with 60 Hz operation. A 50 Hz version is also available. Minimum circuit ampacity is 3.2 amps and maximum fuse size is 15 amps.
K-00444 for the D-970 bin, K-603030 for the F-1325/1650 bin, and K-613030 for the FC-1350 bin.
The ice maker includes a 3-year parts and labor warranty, and the compressor includes 5-year parts and 3-year labor coverage.
