Key specifications

Amps
15 Amps
Phase
1-Phase
Dimensions
30.0"W × 23.63"D × 27.41"H
Type
Flake Ice Machine
Style
Modular
Installation Type
Floor Model
Spec sheet
Manitowoc SKU: RFF1300A

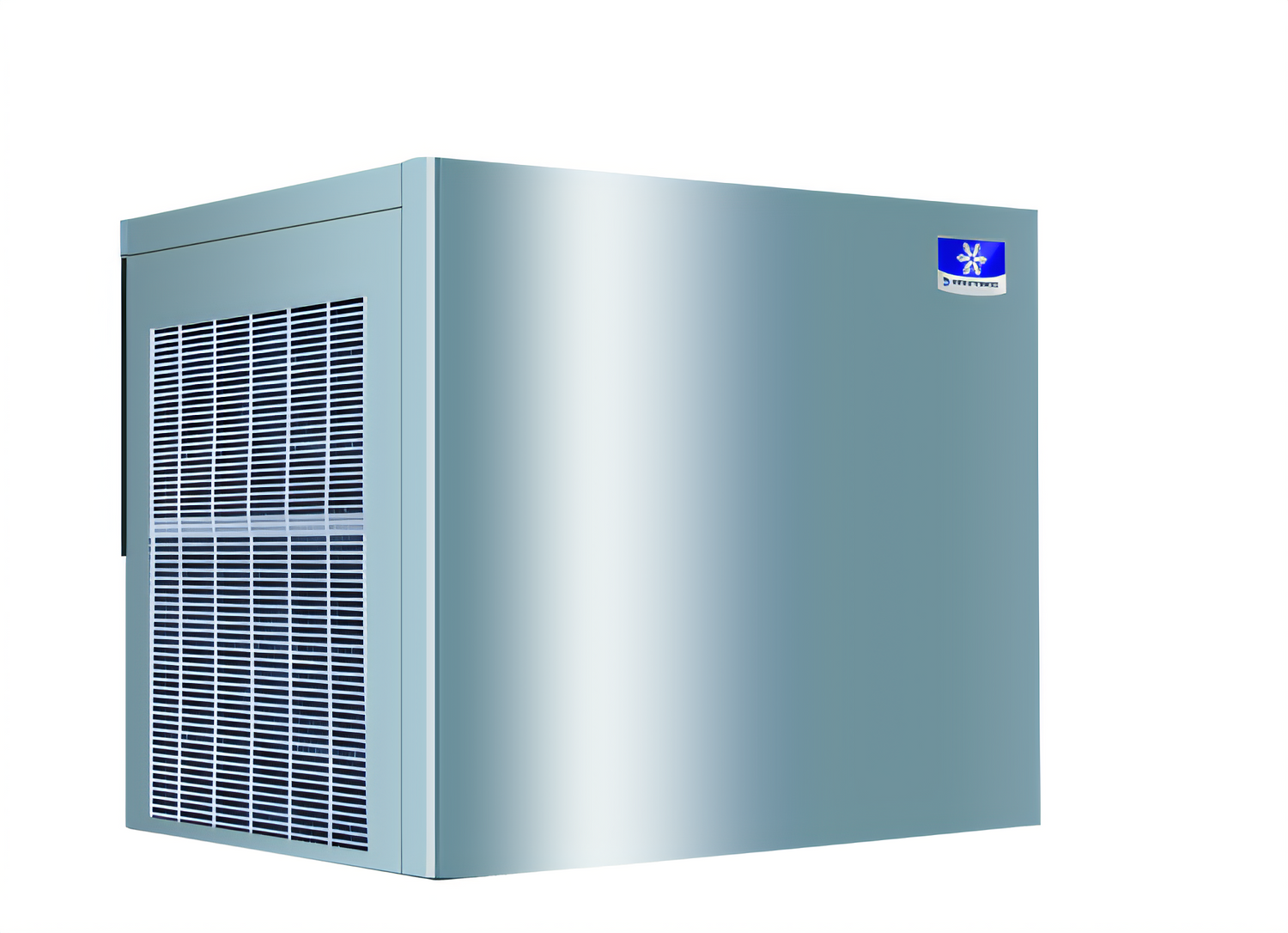

Manitowoc RFF1300A 30-Inch Air-Cooled Flake Ice Machine

$9,006.38
/each
Estimated to ship in 21–24 business days
Cooling
Electrical208-230 V · 1-phase · 60 Hz
Ice storage bins
Included: Manitowoc warranty 3-year parts and labor warranty; compressor parts are covered for 5 years and compressor labor for 2 years

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $833/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Flake Ice Machine
Style Modular
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Cooling Air-Cooled
Refrigeration Type Self-Contained
Ice Shape Flake
Production Per 24 Hours 1,264 lb at 70°F Air / 50°F Water
AHRI Production Per 24 Hours 951 lb at 90°F Air / 70°F Water
Voltage 208-230 Volts
Amps 15 Amps
Hertz 60 Hz
Phase 1-Phase
Refrigerant Type R-404A
Compressor Horsepower 1.5 HP
Temperature Range 50°F to 110°F Ambient
Water Temperature Range 37°F to 90°F
Water Usage 12 gal per 100 lb of Ice

Description

The Manitowoc RFF1300A is a modular flake ice machine with an air-cooled, self-contained condenser and stainless steel finish.

It produces up to 1,264 lb of flake ice per 24 hours at 70°F air and 50°F water. AHRI-certified production is 951 lb per 24 hours at 90°F air and 70°F water.

  • Flake ice is suited to food display, salad bars, hand-scooped drinks, and cold therapy applications.
  • Features high-load stainless steel bearings and a stainless steel cabinet.
  • Measures 30 in W x 23.63 in D x 27.41 in H.

Overall Dimensions:

30.0"W x 23.63"D x 27.41"H

Product Weight:

263.0 lb

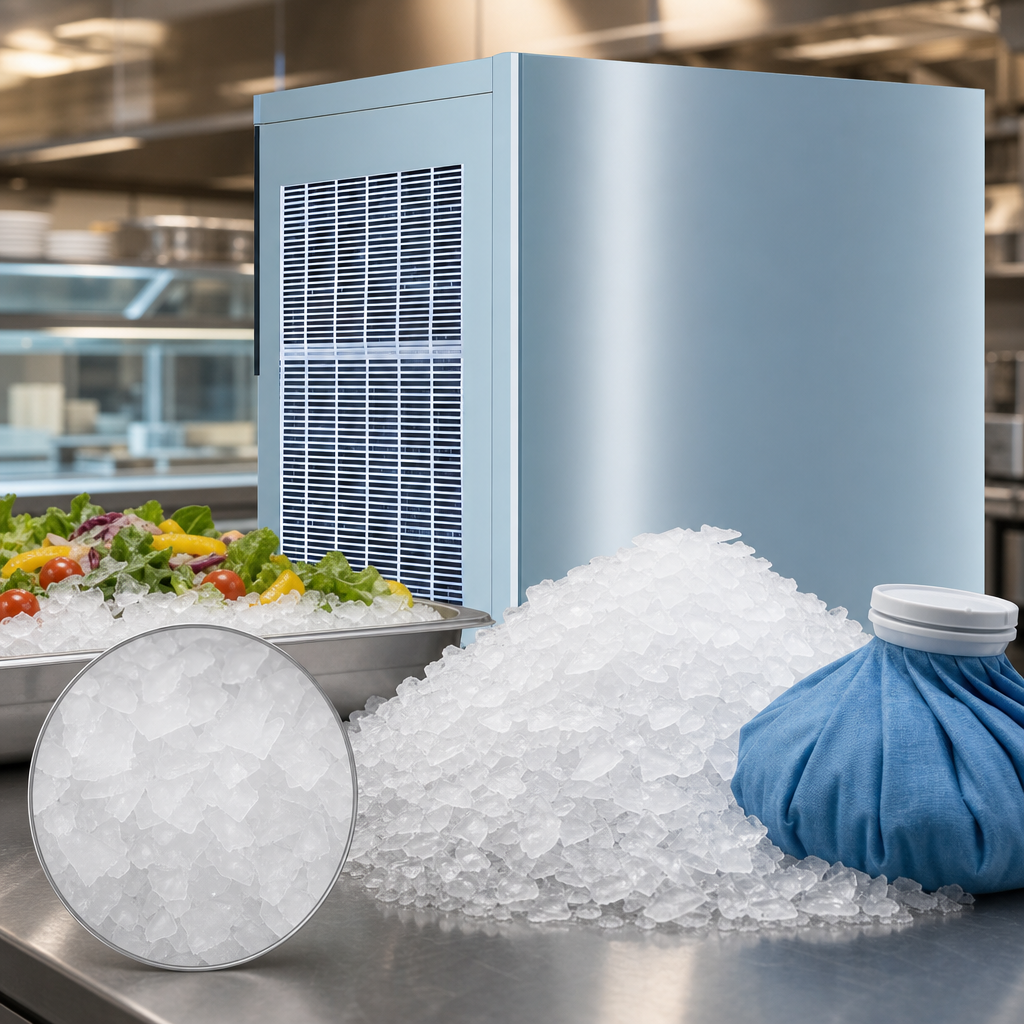

Flake Ice Production

Produces up to 1,264 lb per 24 hours at 70°F air and 50°F water; AHRI-certified production is 951 lb per 24 hours at 90°F air and 70°F water.

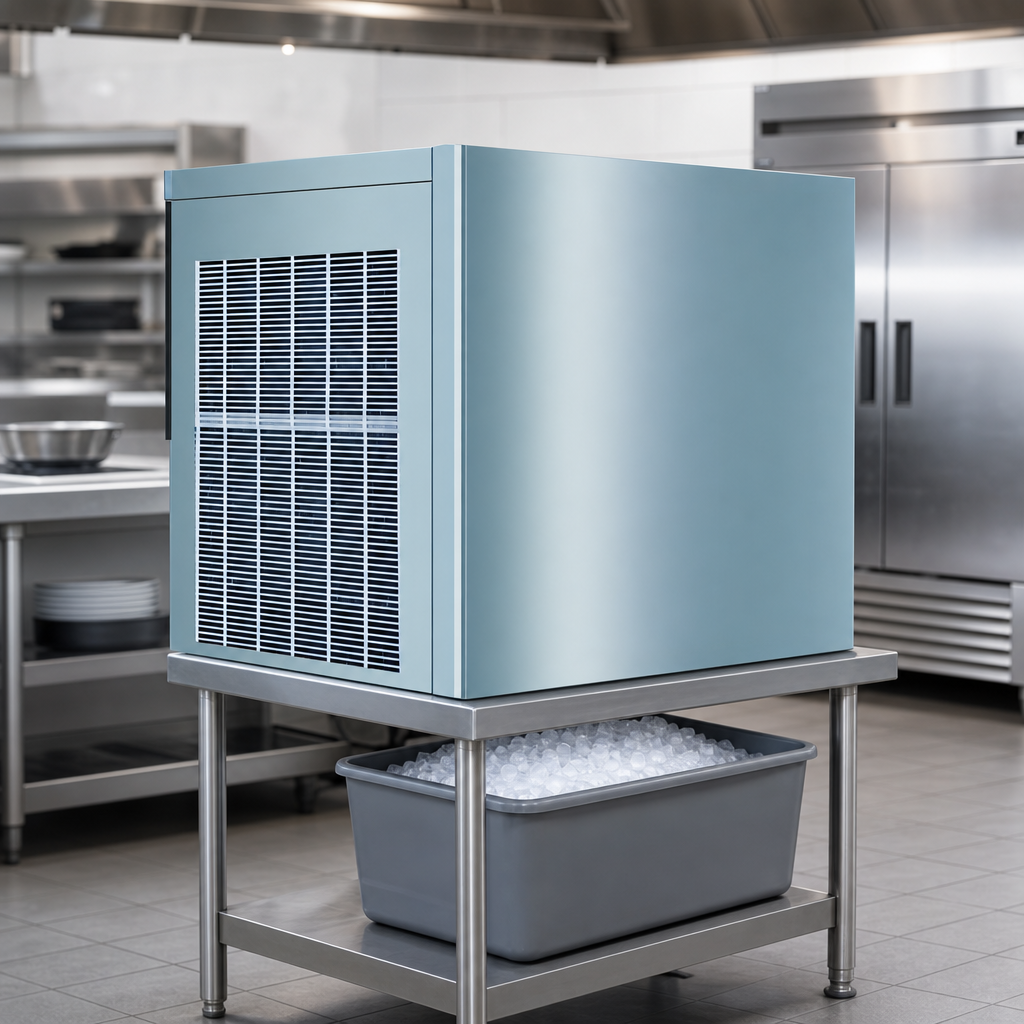

Air-Cooled Condenser

Uses an air-cooled, self-contained condenser design.

Flake Ice

Flake ice is suited to food display, salad bars, hand-scooped drinks, and cold therapy applications.

Stainless Steel Construction

Features a stainless steel cabinet and finish.

High-Load Bearings

Uses high-load stainless steel bearings.

Service Access

Service updates facilitate installation and cleaning.

Frequently Asked Questions

The RFF1300A produces flake ice.
It produces up to 1,264 lb per 24 hours at 70°F air and 50°F water. AHRI-certified production is 951 lb per 24 hours at 90°F air and 70°F water.
Yes. It uses an air-cooled, self-contained condenser.
The machine measures 30 in wide by 23.63 in deep by 27.41 in high.
The standard specification is 208-230 Volts, 60 Hz, 1-Phase, with 15 Amps minimum circuit ampacity and a 15-amp maximum fuse.
The RFF1300A uses R-404A refrigerant.
