Key specifications

Phase
1-Phase
Dimensions
22.0"W × 23.63"D × 26.0"H
Type
Ice Maker Head
Shape
Flake
Material
Stainless Steel
Finish
Stainless Steel
Spec sheet
Manitowoc SKU: RFF1220C

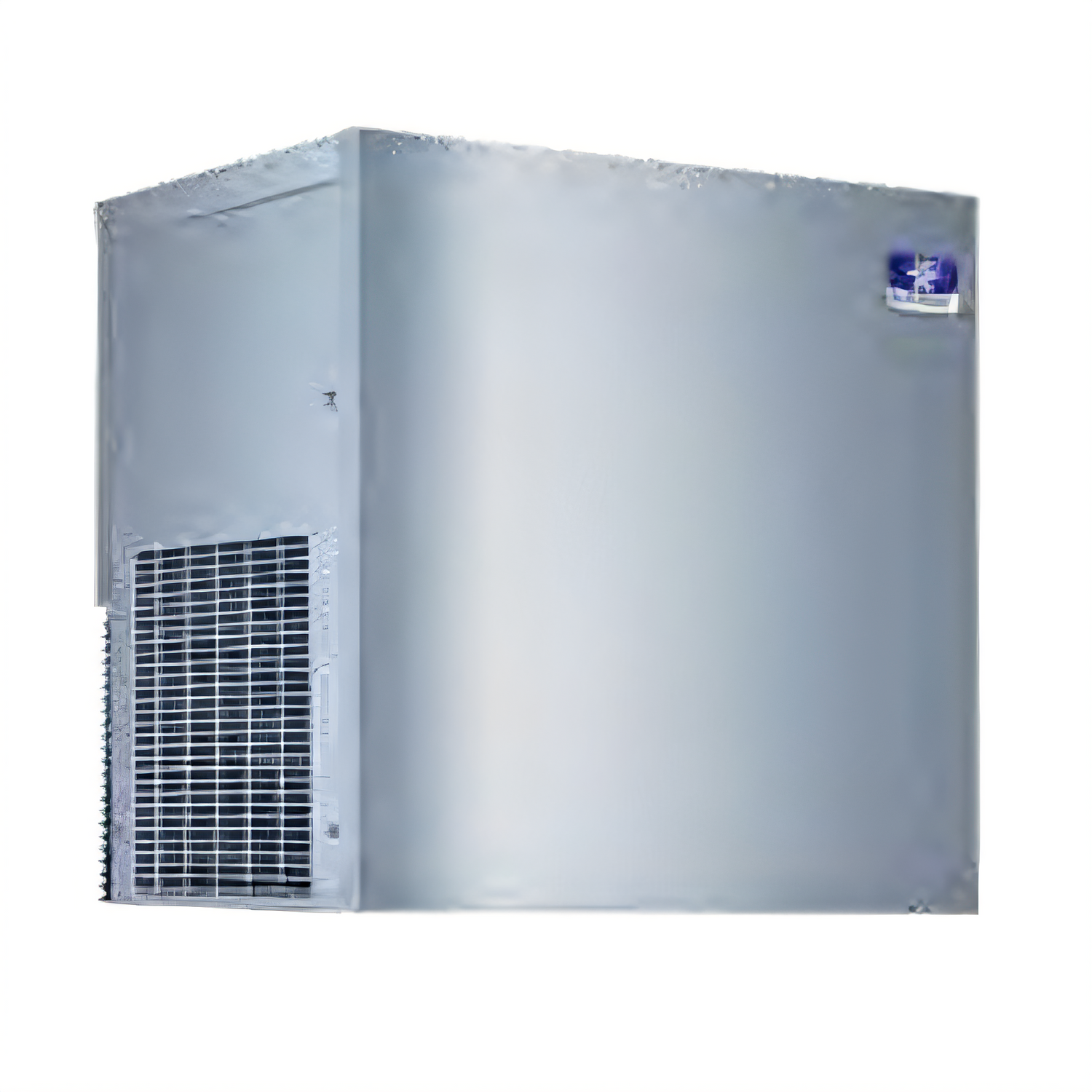

Manitowoc RFF1220C 22-Inch Remote Flake Ice Maker Head

$7,242.26
/each
Estimated to ship in 21–24 business days
Type
Production capacity
Electrical208-230 V · 1-phase · 60 Hz
Ice storage binsRequired
Installation kits
Included: Manitowoc warranty 3-year parts and labor coverage; compressor parts are covered for 5 years and compressor labor for 2 years

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $670/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Ice Maker Head
Shape Flake
Material Stainless Steel
Finish Stainless Steel
Cooling Air-Cooled
Refrigeration Type Remote
Production Per 24 Hr Up to 1,152 lb at 70°F Air/50°F Water
AHRI Certified Production 958 lb/24 hours at 90°F Air/70°F Water
Energy Efficiency ENERGY STAR®
Voltage 208-230 Volts
Phase 1-Phase

Description

The Manitowoc RFF1220C is an air-cooled flake ice maker head designed for remote refrigeration. It produces up to 1,152 lb of flake ice per 24 hours at 70°F air and 50°F water, with AHRI-certified production of 958 lb per 24 hours at 90°F air and 70°F water.

The 22-inch-wide unit has a stainless steel exterior and high-load stainless steel bearings. Remote refrigeration is not included; the condensing unit, refrigerant lines, and storage unit are ordered separately.

  • Flake-style ice production
  • Air-cooled design for remote refrigeration
  • Stainless steel exterior and finish
  • ETL, cETLus, AHRI, and ENERGY STAR® certified

Overall Dimensions:

22.0"W x 23.63"D x 26.0"H

Product Weight:

186.0 lb

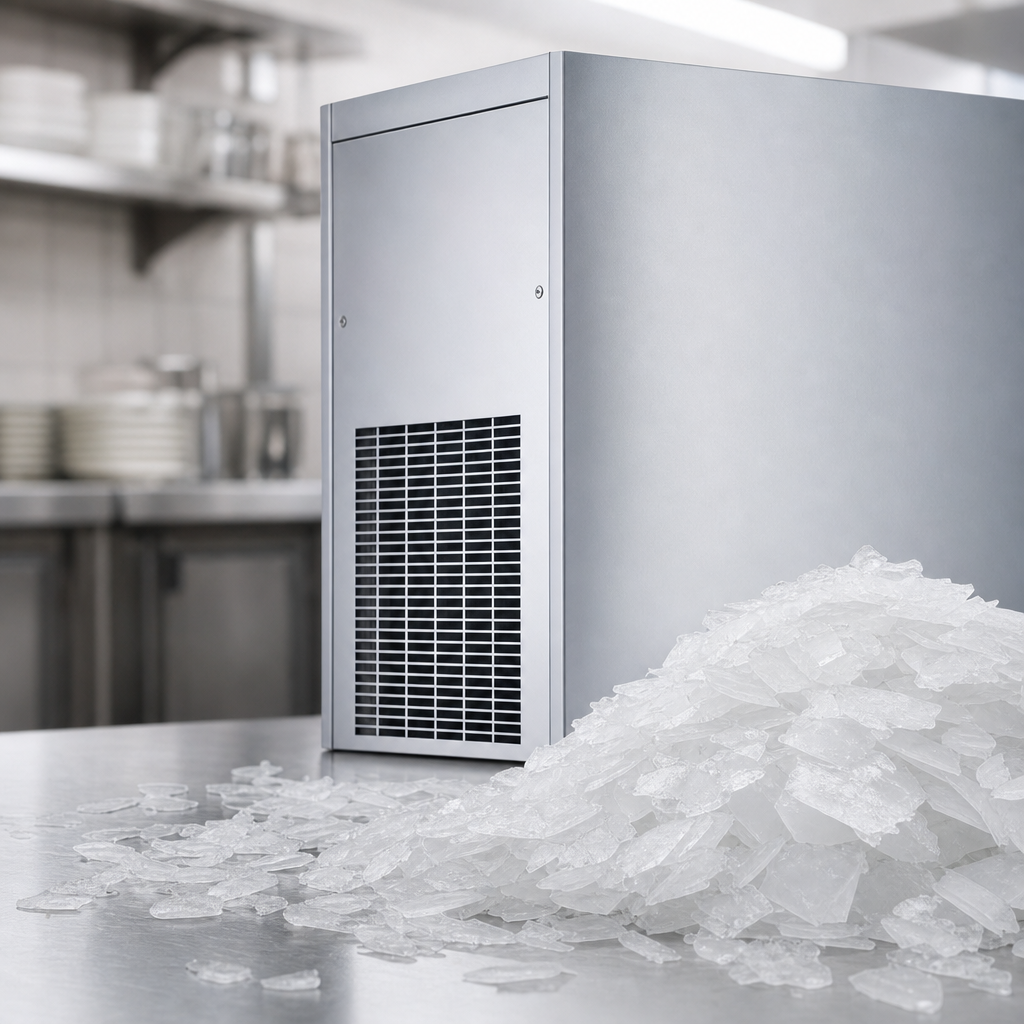

Flake Ice Production

Produces flake-style ice for presentation applications.

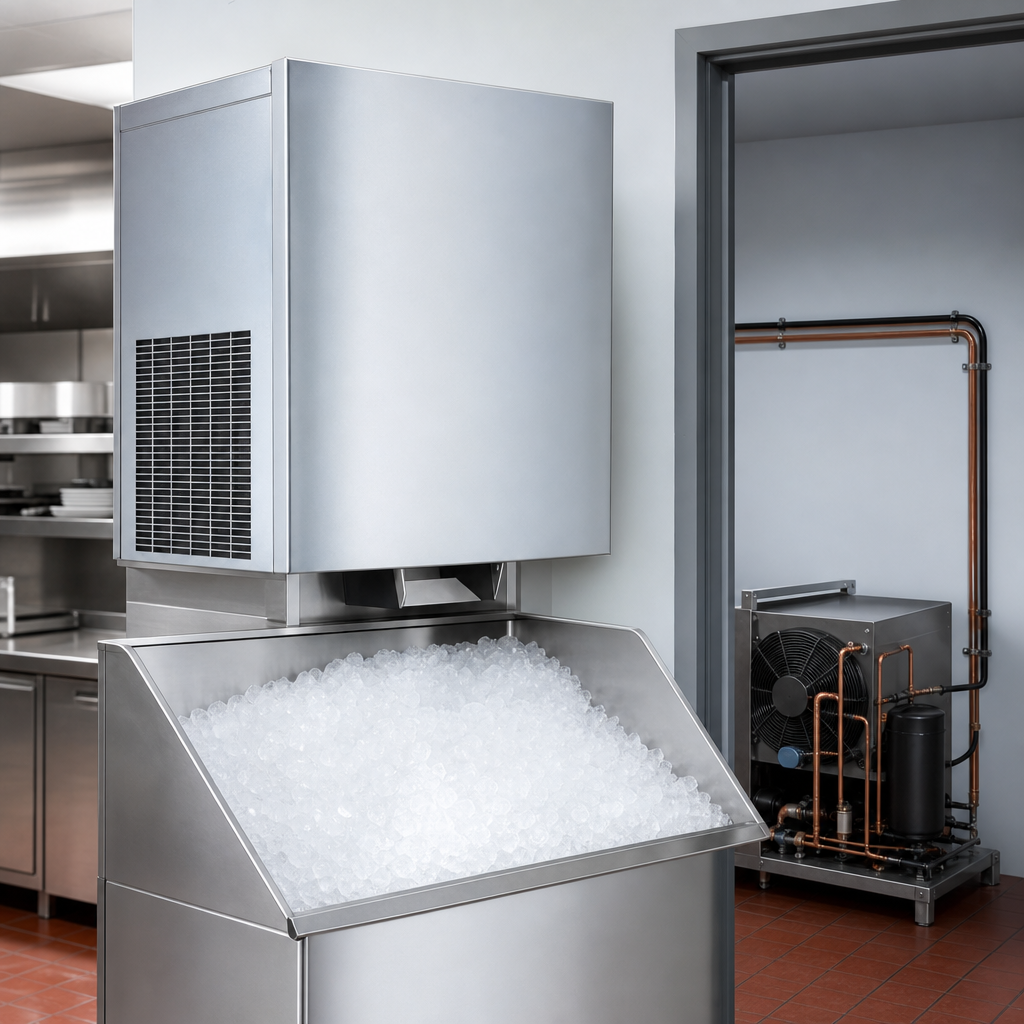

Remote Refrigeration

Designed for remote refrigeration; the refrigeration system is not included.

Air-Cooled Design

Uses an air-cooled remote refrigeration design.

Production Capacity

Produces up to 1,152 lb per 24 hours at 70°F air and 50°F water.

Stainless Steel Exterior

Features a stainless steel exterior and finish.

High-Load Bearings

Uses high-load stainless steel bearings.

Remote System Components

The condensing unit, refrigerant lines, and storage unit are ordered separately.

Frequently Asked Questions

It produces flake-style ice.
No. The RFF1220C is designed for remote refrigeration, and the refrigeration system is not included.
Production is up to 1,152 lb per 24 hours at 70°F air and 50°F water. AHRI-certified production is 958 lb per 24 hours at 90°F air and 70°F water.
The unit is 22 inches wide, 23.63 inches deep, and 26 inches high.
No. The storage unit is ordered separately.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
