Manitowoc Vertical Discharge Air-Cooled Remote Condenser for Indigo NXT iT1500N/iT1900N Ice Machines

SKU: JCT1500-261
$1,768.63
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Disposable Tableware Disposables & Consumables Manitowoc New Arrivals

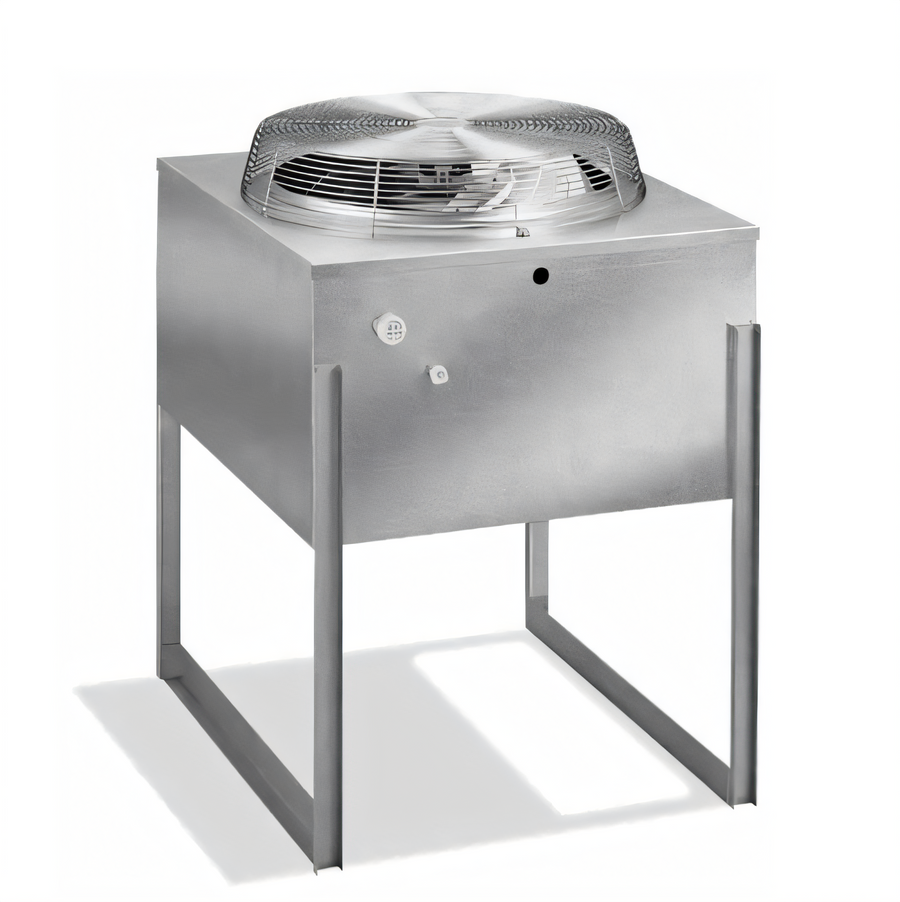

Manitowoc Vertical Discharge Air-Cooled Remote Condenser for Indigo NXT iT1500N/iT1900N Ice Machines

R410A refrigerant, quick-connect installation, 100' maximum line length

This remote condenser moves heat away from the ice machine to improve efficiency, simplify installation, and support high-output Indigo NXT operation.

  • Vertical-discharge remote condenser designed for Indigo NXT iT1500N and iT1900N ice machines.
  • Air-cooled design helps improve ice production while reducing ambient heat near the machine.
  • Pre-charged components and quick-connect fittings simplify installation.
  • Supports up to 100 feet of total line length with up to 35 feet of vertical rise.
  • Can be installed with up to 20 inches of bottom clearance.

Overall Dimensions:

29.5"W x 27.94"D x 38.0"H

Product Weight:

69.0 lb

Vertical Discharge Design

Exhausts heat upward to help keep the ice machine area cooler.

Air-Cooled Remote Condenser

Places heat rejection away from the ice machine to improve efficiency and reduce air conditioning load.

R410A Refrigerant System

Designed for use with R410A refrigerant.

Indigo NXT Compatibility

Built for iT1500N and iT1900N Indigo NXT Series ice cube machines.

Quick-Connect, Pre-Charged Installation

Remote system components arrive pre-charged and use quick-connect fittings for easier setup.

Wide Installation Range

Allows up to 100 feet of total line length, 35 feet of vertical rise, and 15 feet of vertical drop.

Operating Range

Rated for condenser operation from -20°F to 120°F.

Type Remote Condenser
Style Vertical Discharge
Refrigeration Type Air-Cooled
Refrigerant Type R410A
Voltage 208/230 Volts
Amps 1 Amp
Hertz 60 Hz
Phase 1-Phase
Compatible Ice Machine Models iT1500N, iT1900N
Temperature Range -20°F to 120°F
Maximum Line Length 100 Feet
Maximum Vertical Rise 35 Feet
Maximum Vertical Drop 15 Feet
Bottom Clearance 20 Inches
Shipping Width 30 Inches
Shipping Depth 28 Inches
Shipping Height 38 Inches
Shipping Weight 69 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

3-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Cleaner product guide PDF Download PDF Warrany PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is designed for Indigo NXT Series iT1500N and iT1900N ice cube machines.
This condenser is designed for R410A refrigerant.
The maximum line length is 100 feet. The unit is charged for up to 50 feet of line length, and runs over 50 feet require additional refrigerant at installation.
It can be installed with up to 20 inches of bottom clearance.
The unit includes a 3-year parts and labor warranty.
Yes. The JCT1500Q coated-coil model is available for extra corrosion protection and is recommended for coastal salt spray environments.
